FOXBORO FBM216B P0927AJ Replacement for I/A Series DCS

Product Overview

FOXBORO FBM216B P0927AJ Replacement for I/A Series DCS: Seamless Migration & Smooth Transition

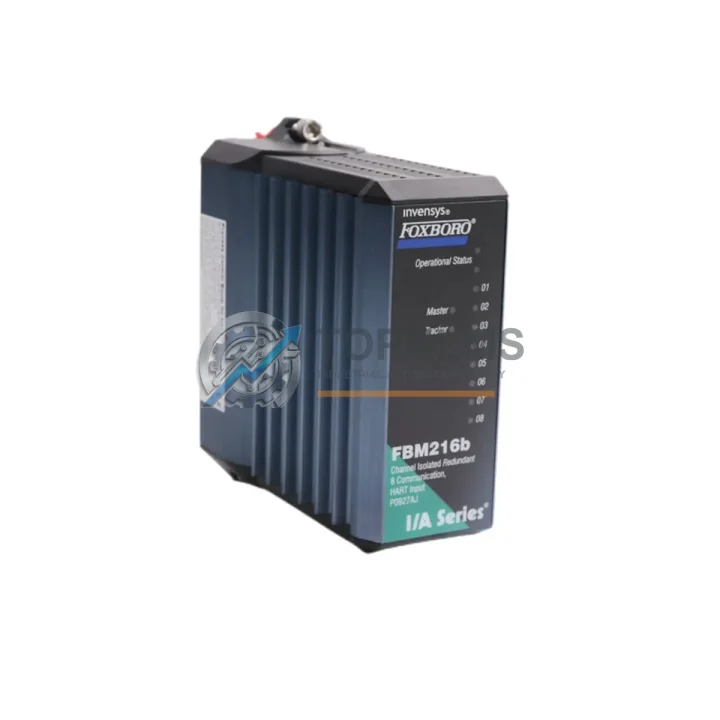

Upgrading or replacing a legacy Foxboro I/A Series DCS installation demands precision, compatibility assurance, and minimal disruption to live production. The FOXBORO FBM216B (P0927AJ) is a 16-channel redundant HART Analog Input Module engineered for the I/A Series Distributed Control System platform. Whether you are retiring an aging FBM216 (non-redundant variant), migrating from a single-redundancy architecture, or simply replacing a failed module to restore system integrity, the FBM216B P0927AJ delivers a verified drop-in upgrade path with full backward compatibility across the I/A Series fieldbus and rack infrastructure.

The FBM216B slots directly into standard I/A Series baseplate assemblies — including the FBM Baseplate CP60 and compatible rack enclosures — without requiring mechanical modification to the control cabinet. Wiring terminations follow the same I/A Series field termination assembly (FTA) conventions used by predecessor modules such as the FBM216 and FBM201, meaning existing field cable schedules, marshalling panels, and junction boxes remain fully reusable. This dramatically reduces retrofit labor hours and eliminates the risk of rewiring errors during cutover.

On the communications side, the FBM216B P0927AJ operates natively on the Foxboro Nodebus / Fieldbus architecture, maintaining full compatibility with the I/A Series system controller — including the CP60, CP270, and CP280 controller platforms. No gateway, protocol converter, or additional communication module is required. HART pass-through capability is preserved on all 16 channels, allowing field instruments such as smart transmitters, positioners, and multivariable devices to continue communicating diagnostic and secondary variable data to the DCS historian and asset management system without reconfiguration.

For sites running redundant I/A Series architectures, the FBM216B supports module-level redundancy pairing. When installed alongside a redundant partner module and connected via the appropriate FBM Redundancy Cable, the system achieves bumpless switchover in the event of a module fault — a critical requirement for continuous process industries including refining, petrochemical, power generation, and pharmaceutical manufacturing. Existing redundancy configurations from the FBM216 generation are directly transferable, preserving your validated control strategy and SIL-rated loop integrity.

From a software and configuration perspective, the FBM216B P0927AJ is recognized natively by Foxboro AIM*AT (Integrated Control Configurator) and I/A Series System Configuration Studio. Control database blocks, compound structures, and loop configurations built around the FBM216 require no structural changes — only a module type update in the configuration database is needed to reflect the FBM216B designation. This preserves years of validated control logic, alarm setpoints, and historian tag mappings, reducing commissioning time to a matter of hours rather than days.

Power supply compatibility is maintained with standard I/A Series 24 VDC distributed power infrastructure. No additional power conditioning or dedicated PSU is required. The module draws within the standard FBM power budget, making it suitable for direct insertion into existing populated baseplates without power capacity recalculation in most standard configurations.

During migration planning, it is common to simultaneously audit and replace associated I/A Series components that have reached end-of-life alongside the FBM216B. Frequently co-replaced items include the FBM242 HART Analog Output Module, FBM207 Digital Input Module, FBM217 Analog Input Module (non-HART), and FCP270 Field Control Processor for sites undertaking broader controller-level upgrades. Communication infrastructure components such as the FCM10E Fieldbus Communication Module and FBM230 FOUNDATION Fieldbus Interface Module are also commonly reviewed during I/A Series modernization projects. For sites integrating legacy Foxboro SPEC 200 or SPEC 200 Micro instrumentation into the I/A Series environment, SPEC 200 I/O Termination Assemblies and associated signal conditioning modules may also be part of the migration scope.

All units supplied by TOPNLMS are sourced from verified industrial channels, individually inspected, and function-tested prior to dispatch. Each FBM216B P0927AJ is shipped with full anti-static packaging, traceable documentation, and a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited air freight from Xiamen is available for urgent breakdown replacements, with typical lead times of 3–7 business days to most global destinations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful I/A Series migration rarely involves a single module in isolation. During FBM216B P0927AJ replacement projects, engineers typically audit the full I/O subsystem and communication backbone. The FBM242 HART Analog Output Module is frequently replaced in the same maintenance window, as it shares the same baseplate and FTA infrastructure. FBM207 Digital Input Modules and FBM217 non-HART Analog Input Modules are common co-replacement items when the site is performing a full I/O bay refresh. For controller-level upgrades, the FCP270 Field Control Processor provides a modern processing platform that extends I/A Series system life by a further decade. Communication layer components — including the FCM10E Fieldbus Communication Module and FBM230 FOUNDATION Fieldbus Interface Module — are reviewed when the site is expanding to smart field device integration. Redundancy cabling assemblies, DIN rail terminal blocks, and signal isolators for intrinsically safe loops round out the typical bill of materials for a complete, low-risk cutover.

Retrofit Guidance FAQ

Q: Can I replace FBM216 with FBM216B without rewiring field cables?
A: Yes. The FBM216B P0927AJ uses the same I/A Series Field Termination Assembly (FTA) pinout as the FBM216. Existing field cables, marshalling wiring, and junction box terminations are fully reusable.

Q: Do I need to modify my control database?
A: Minimal changes are required. Only the module type designation in the I/A Series configuration database needs to be updated to FBM216B. All existing compound structures, control blocks, and historian tags are preserved.

Q: Is HART communication maintained after replacement?
A: Yes. All 16 channels support HART pass-through. Smart field instruments continue to communicate diagnostic and secondary variable data without reconfiguration.

Q: Does the FBM216B fit the same baseplate slot as the FBM216?
A: Yes. The FBM216B shares the same physical form factor and baseplate connector as the FBM216, ensuring a direct slot-for-slot replacement with no cabinet modification.

Q: What communication protocol does the FBM216B use?
A: The FBM216B operates on the Foxboro Nodebus / Fieldbus protocol, fully compatible with CP60, CP270, and CP280 system controllers. No protocol converter is required.

Q: How long does commissioning typically take?
A: For a like-for-like FBM216 to FBM216B swap with existing wiring and configuration, on-site commissioning typically takes 2–4 hours per module, including functional loop checks and HART device verification.

Warranty Assurance

Every FOXBORO FBM216B P0927AJ supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes visual inspection, power-on functional testing, and communication verification. Units are shipped in anti-static bags with foam-lined cartons to prevent transit damage. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, with a typical response time of 1–3 business days. Expedited replacement shipping is available for critical breakdown situations. Our procurement guarantee includes traceable sourcing documentation available upon request for quality audit purposes.
