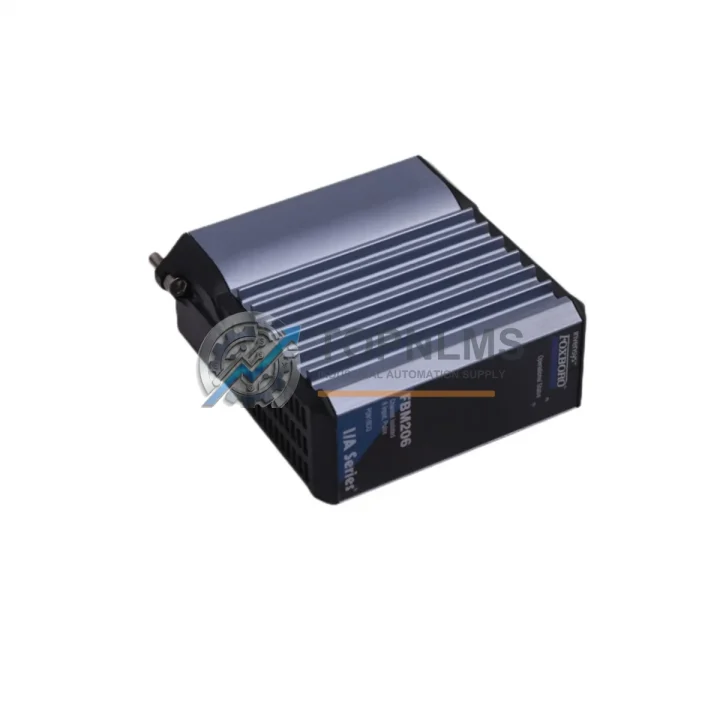

FOXBORO FBM206 Ruggedized Pulse Counter Module Harsh Environments

Product Overview

FOXBORO FBM206 Ruggedized Pulse Counter Module Harsh Environments

The FOXBORO FBM206 is a channel-isolated, 8-input pulse counter field bus module engineered for the I/A Series Distributed Control System (DCS). Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and electrically noisy heavy manufacturing floors — the FBM206 delivers uncompromising signal integrity and measurement accuracy where conventional I/O hardware routinely fails. Its per-channel galvanic isolation architecture ensures that a fault or transient surge on one input channel cannot propagate to adjacent channels or upstream DCS infrastructure, making it a cornerstone component for continuous, safety-critical production lines.

In oil refineries, petrochemical complexes, and natural gas processing plants, pulse counting accuracy is non-negotiable. Flow meters, turbine meters, and proximity sensors generate high-frequency pulse trains that must be captured without dropout or jitter even when the field wiring runs through conduit shared with high-voltage motor cables. The FBM206’s channel isolation and wide common-mode rejection capability suppress the electromagnetic interference generated by variable frequency drives, large contactors, and power distribution equipment operating in the same control cabinet or field junction box. This makes the FBM206 an ideal companion to other I/A Series field bus modules such as the FBM201 analog input module, FBM204 digital input module, and FBM207 digital output module, all of which share the same DIN-rail mounting footprint and communicate over the Nodebus fieldbus backbone.

Within the I/A Series architecture, the FBM206 connects directly to the Fieldbus Communication Controller (FCC) or the Fieldbus Modem (FBM) gateway, enabling seamless integration with the FOXBORO Workstation and the I/A Series Application Processor. Configuration and diagnostics are performed through the FOXBORO System Definition Facility (SDF), allowing maintenance engineers to verify channel health, pulse accumulation registers, and filter settings without interrupting live process measurements. This tight integration with the broader I/A Series ecosystem — including the CP60 Control Processor, the AW70 Application Workstation, and the redundant power supply modules — means that replacing a failed FBM206 in the field is a straightforward hot-swap procedure that restores full functionality within minutes.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable pulse counting in harsh industrial environments depends not only on the FBM206 itself but on the integrity of the entire measurement and control chain. In a typical I/A Series DCS cabinet, the FBM206 operates alongside the FBM201 8-channel analog input module, which handles 4–20 mA transmitter signals from pressure and temperature sensors in the same process area. Digital status signals from motor starters, valve limit switches, and safety interlocks are captured by the FBM204 discrete input module, while process actuators and solenoid valves receive commands from the FBM207 discrete output module. Together, these I/O modules share a common Nodebus segment managed by the Fieldbus Communication Controller, ensuring deterministic scan rates even under heavy I/O loading.

Power quality is equally critical. The I/A Series redundant power supply modules provide conditioned, regulated DC power to the baseplate bus, protecting all connected FBMs — including the FBM206 — from mains voltage fluctuations, brownouts, and switching transients common in heavy industrial facilities. In installations where the control cabinet is located near large variable frequency drives or medium-voltage switchgear, additional surge protection terminal blocks and EMI filter modules are installed on the field wiring side to prevent conducted interference from reaching the FBM206 input circuits. The CP60 Control Processor, which executes the control strategies that consume FBM206 pulse data, benefits from the module’s clean, isolated signal outputs, enabling accurate flow totalization, batch counting, and speed measurement without software-level filtering workarounds.

For safety-instrumented applications, the FBM206 is often deployed in conjunction with dedicated safety relay modules and safety logic solvers that monitor pulse inputs from emergency shutdown (ESD) valve position sensors and turbine overspeed detectors. Its channel isolation ensures that a wiring fault in one safety loop cannot compromise the integrity of adjacent measurement channels, a requirement explicitly addressed in IEC 61511 functional safety standards for the process industries.

Application in Critical Infrastructure

In upstream oil and gas production facilities, the FBM206 is routinely used to totalize flow from positive displacement meters and turbine flow meters on wellhead manifolds, pipeline injection skids, and custody transfer stations. The module’s ability to handle high-frequency pulse inputs from turbine meters operating at full flow rates — while simultaneously rejecting the electromagnetic noise generated by submersible pump variable speed drives — makes it indispensable for accurate hydrocarbon accounting in environments where measurement errors translate directly into financial and regulatory consequences.

In coal-fired and combined-cycle power generation plants, the FBM206 monitors coal feeder speed pulses, fuel gas flow pulses, and cooling water pump tachometer signals. Its wide operating temperature range allows installation in turbine hall control panels where ambient temperatures can approach the upper limits of standard industrial hardware during summer peak-load periods. Water and wastewater treatment facilities rely on the FBM206 to count pulses from chemical dosing pump stroke counters and effluent flow meters, where the combination of high humidity, chemical vapors, and vibration from large centrifugal pumps creates a challenging operating environment that the module’s robust design handles without degradation in measurement accuracy.

In metals and mining operations — including copper smelters, aluminum reduction plants, and underground coal mines — the FBM206 provides reliable pulse counting for conveyor belt speed monitoring, crusher rotation sensing, and ore slurry flow measurement. The galvanic channel isolation is particularly valued in these applications because the large DC currents flowing through electrolytic cells and arc furnaces create ground potential differences that would corrupt unprotected pulse inputs. By maintaining each channel’s reference potential independently, the FBM206 eliminates ground loop errors that are a persistent challenge in heavy metallurgical environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the FOXBORO FBM206?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the FBM206 fails to perform its specified pulse counting and channel isolation functions within the warranty period, TOPNLMS will provide a replacement unit or full refund at no additional cost. The warranty applies to both new and refurbished-tested units, with the condition clearly documented on the product certificate shipped with each order.

Q2: How is each FBM206 tested before shipment?
Every FBM206 unit undergoes a multi-stage functional verification process prior to dispatch. This includes power-on self-test, channel-by-channel pulse input verification across the full frequency range, isolation resistance measurement between channels and between channels and the bus connector, and communication handshake verification with an I/A Series Nodebus test fixture. Units that do not meet FOXBORO’s original factory acceptance criteria are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement processes.

Q3: Is the FBM206 compatible with all generations of the FOXBORO I/A Series DCS?
Yes. The FBM206 is designed to operate across all generations of the FOXBORO I/A Series platform, from early-generation systems using the original Nodebus architecture through to current-generation systems managed by the Foxboro Evo Process Automation System. No firmware modifications or hardware adapters are required for standard replacement installations. Compatibility with specific system configurations — including CP60, CP270, and CP40B control processors — can be confirmed by contacting our technical team with your system’s SDF configuration details.

Q4: Can TOPNLMS support long-term supply and emergency replacement for the FBM206?
Yes. TOPNLMS maintains standing inventory of the FBM206 and related I/A Series field bus modules to support both planned maintenance schedules and emergency breakdown situations. For critical infrastructure operators who cannot tolerate extended downtime, we offer priority dispatch with same-day or next-business-day shipping for in-stock units. Long-term supply agreements are available for customers who require guaranteed stock reservation across multi-year maintenance contracts. Contact our team at [email protected] or +86 18359293191 to discuss your specific supply continuity requirements.
