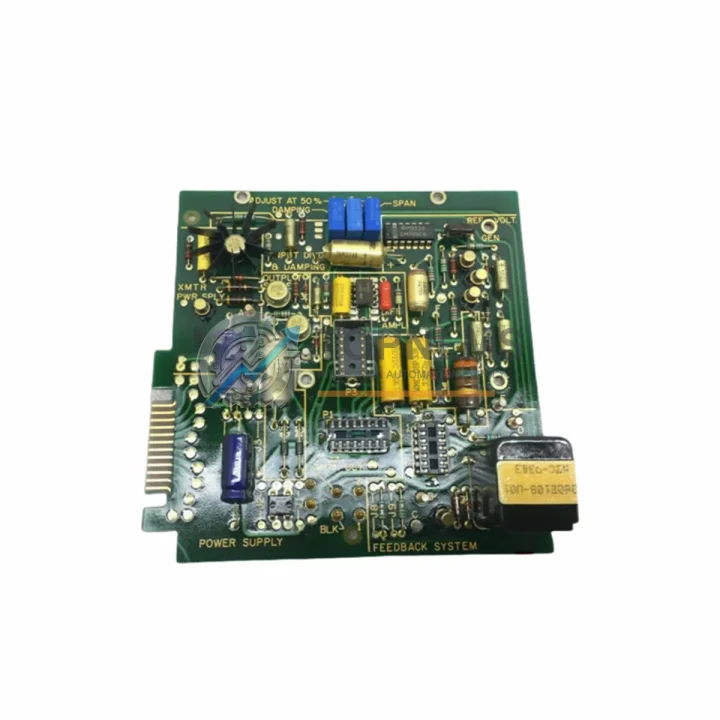

FISCHER PORTER 686B167U05 Upgrade Solution for 686B

Product Overview

FISCHER PORTER 686B167U05 Upgrade Solution for 686B Series: Seamless Transition for Legacy Control Systems

When a FISCHER PORTER 686B167U05 PC Controller Amplifier Board fails or reaches end-of-life, the impact on a process plant can be immediate and severe. Flow measurement loops go offline, batch processes stall, and maintenance teams face the dual pressure of sourcing a verified replacement while minimizing production downtime. The 686B167U05 is a core amplifier board within the FISCHER PORTER 686B Series electromagnetic flowmeter transmitter platform — a system that has served water treatment, chemical dosing, pulp and paper, and food-grade liquid measurement applications for decades. This page is designed to help maintenance engineers, procurement specialists, and automation managers navigate the replacement and upgrade process with confidence.

TOPNLMS stocks the FISCHER PORTER 686B167U05 as a genuine original spare, fully tested prior to shipment. Each unit undergoes functional verification against 686B Series transmitter specifications before dispatch, ensuring that the board you receive is ready for immediate installation without additional bench testing on your end. With a 12-month warranty covering manufacturing defects and functional performance, this is a procurement decision backed by measurable assurance.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 686B167U05 amplifier board is rarely an isolated task. In practice, a transmitter that has experienced board failure has often been in service for ten or more years, and a thorough maintenance review during the same shutdown window can prevent repeat callouts. When your technician opens the 686B Series transmitter housing to swap the amplifier board, it is the ideal moment to inspect the associated measurement loop and control cabinet components.

Begin with the transmitter’s power supply module. The 686B Series relies on a stable DC supply rail, and a degraded power board can cause intermittent amplifier faults that are misdiagnosed as board failures. Inspecting or replacing the power supply board alongside the 686B167U05 eliminates this variable. Similarly, the terminal block assembly and field wiring connections inside the transmitter junction box should be checked for corrosion, loose terminations, and insulation degradation — particularly in wet or chemically aggressive environments.

On the signal side, the 4–20 mA output loop that carries the flow measurement signal back to the DCS or PLC input card deserves attention. If the plant runs a Siemens S7-300 or S7-400 PLC system, the analog input module — such as an SM 331 or SM 334 — should be verified for correct scaling and loop impedance. For plants using an ABB AC800M DCS or a Honeywell Experion PKS controller, the corresponding AI module configuration should be reviewed to confirm that the transmitter’s output range and HART address are correctly mapped after the board replacement.

The HART communication interface is another area to validate during the upgrade. If the plant uses a HART multiplexer or a dedicated HART modem for remote configuration, confirm that the new 686B167U05 board responds correctly to HART commands from the host system. In some older installations, the HART segment may also include signal conditioners or galvanic isolators — components such as a Phoenix Contact MACX MCR-SL or a Pepperl+Fuchs KFD2-STC4 isolator — that may need reconfiguration or replacement if they have degraded over time.

For plants that are taking this replacement as an opportunity to modernize the measurement loop, the 686B Series transmitter can often be retained with the new amplifier board while the downstream signal infrastructure is upgraded. Replacing aging coaxial signal cables with shielded twisted-pair instrumentation cable, updating the cable glands and conduit seals, and installing a new DIN rail terminal strip in the local junction box are all low-cost improvements that extend the service life of the overall measurement point by years.

If the plant’s long-term roadmap includes migration to a newer FISCHER PORTER or ABB electromagnetic flowmeter platform — such as the ProcessMaster FEP300 or the AquaMaster series — the 686B167U05 replacement provides a stable bridge that keeps the existing measurement point operational while the capital project is planned and budgeted. This approach avoids the risk of an unplanned shutdown forcing a rushed platform migration without proper engineering review.

All units are dispatched from Xiamen with full pre-shipment functional testing documentation. Standard lead time is 3–7 business days for international express delivery. Bulk procurement for maintenance stock programs is supported with volume pricing on request.

Retrofit Guidance FAQ

Q1: Is the 686B167U05 a direct drop-in replacement for earlier 686B Series amplifier board revisions?
In the vast majority of 686B Series transmitter configurations, yes. The 686B167U05 uses the standard 686B backplane connector and board form factor, so no enclosure modification or rewiring is required. However, if your transmitter was manufactured before 1995 or has been subject to non-standard field modifications, we recommend confirming the board revision compatibility with your transmitter’s serial number before installation. Our technical team can assist with this verification.

Q2: Will the replacement board require reprogramming or recalibration after installation?
The 686B167U05 is supplied as a functional board. In most cases, the transmitter’s calibration data is stored in a separate EEPROM or parameter module within the transmitter housing, not on the amplifier board itself. This means that after a board swap, the transmitter typically resumes operation with the existing calibration parameters. A zero and span verification check is recommended as standard commissioning practice after any board replacement.

Q3: How do I verify communication protocol compatibility with my existing DCS or PLC system?
The 686B Series transmitter communicates via 4–20 mA with superimposed HART protocol. Confirm that your DCS analog input card or HART multiplexer is configured for HART revision 5 or later. If your control system uses a proprietary serial protocol interface specific to older FISCHER PORTER installations, contact us with your transmitter model and host system details so we can advise on the correct interface configuration.

Q4: What physical space and installation requirements should I plan for?
The 686B167U05 board fits the standard 686B Series transmitter housing without modification. No additional DIN rail space, conduit rerouting, or enclosure work is required. The replacement procedure involves powering down the transmitter, removing the housing cover, extracting the existing board from the backplane connector, inserting the new board, and restoring power. Total installation time for an experienced technician is typically under 30 minutes.

Warranty Assurance

Every FISCHER PORTER 686B167U05 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional performance defects and manufacturing faults under normal operating conditions consistent with the 686B Series transmitter specification.

Prior to dispatch, each board undergoes a structured pre-shipment test protocol that verifies power-on functionality, signal output integrity, and connector condition. A test report is available on request for quality-assurance documentation purposes.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial assessment and 5–7 business days for replacement dispatch. We support procurement teams with the documentation required for internal maintenance records, including test certificates, packing lists, and commercial invoices.

For volume orders, maintenance stock programs, or urgent same-day quotation requests, contact our technical sales team directly. We maintain standing inventory of key 686B Series components to support unplanned maintenance events.
