FANUC A16B-3200-0810 Original Industrial Spare R-30iB Plus Compatible

Product Overview

FANUC A16B-3200-0810 Original Industrial Spare R-30iB Plus Compatible: Ensuring System Stability in Demanding Automation Environments

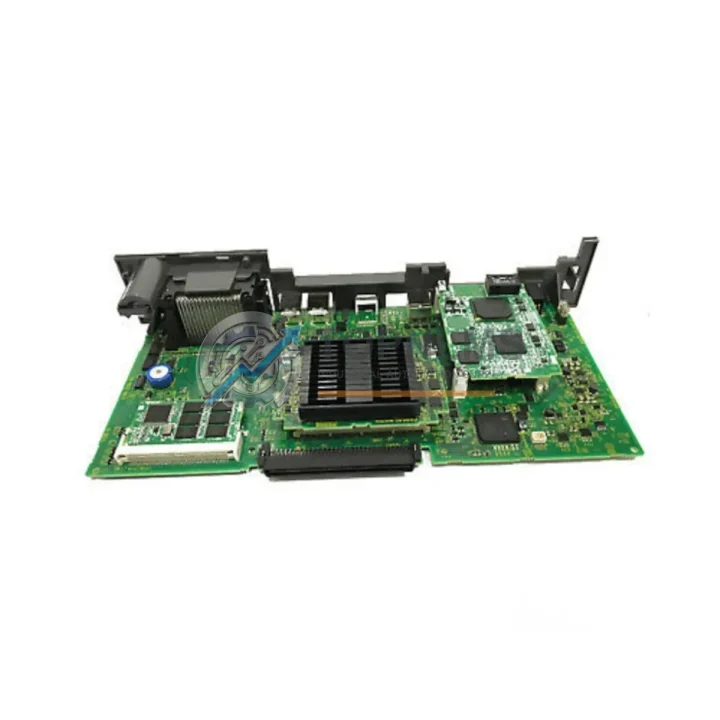

The FANUC A16B-3200-0810 is the Master CPU Board at the heart of the R-30iB Plus Robot Controller — one of the most widely deployed robot control platforms in automotive, electronics, and general manufacturing automation worldwide. When this board fails or degrades, the entire robotic cell goes offline, triggering unplanned downtime that can cost thousands of dollars per hour. Stocking a verified original replacement is not a luxury; it is a fundamental pillar of any serious preventive maintenance program.

At TOPNLMS, every A16B-3200-0810 unit is sourced as an original FANUC spare, individually inspected, and function-tested before dispatch. Our 12-month warranty covers the full replacement period, giving your maintenance team the confidence to swap the board on the spot and return the robot cell to production without waiting for a lengthy repair cycle.

Critical Technical Specs

Preventive Maintenance Strategy

A Master CPU Board failure rarely occurs in isolation. In most field cases, the A16B-3200-0810 fault is preceded or accompanied by cascading issues across the controller cabinet. A disciplined preventive maintenance inspection should treat the R-30iB Plus as a system, not a collection of isolated components.

Begin with the FANUC A16B-2203-0360 Power Supply Unit — voltage ripple or under-voltage events are a leading cause of premature CPU board degradation. If the PSU output is marginal, replacing the CPU board alone will not solve the root cause. Simultaneously, inspect the A20B-2101-0390 Servo Amplifier Module; axis alarms that appear to originate from the CPU board are frequently traced back to servo drive faults feeding erroneous feedback signals upstream.

The A16B-2202-0670 I/O Link Module should be checked next. A corrupted I/O link can cause the master CPU to log communication timeouts that mimic board-level failures. While the cabinet is open, verify the condition of the A66L-0001-0284 Battery Unit — a depleted backup battery causes program and parameter loss on power cycle, which is often misdiagnosed as a CPU board fault. Replace the battery as a matter of course during any CPU board service visit.

For robots operating in high-cycle or high-vibration environments, inspect the A660-2005-T507 Robot Cable Assembly and the A05B-2518-C202 Teach Pendant Unit connection harness. Intermittent cable faults generate spurious alarms that stress the CPU board’s error-handling routines. The A16B-3200-0500 Main CPU Board (used in adjacent R-30iA and R-30iB standard controllers in the same facility) should also be audited if your plant runs a mixed fleet — cross-contamination of spare parts between controller generations is a common source of field errors.

Finally, review the A20B-8101-0320 FROM/SRAM Module for memory integrity, and confirm that the A16B-1212-0901 Backplane Board connector pins show no oxidation or mechanical damage. A comprehensive cabinet inspection that covers all of these components — rather than a single-board swap — dramatically reduces the probability of repeat downtime within the same maintenance window.

Strategic Replacement Solutions

The FANUC R-30iB Plus platform has been in active production deployment since 2012 and remains the dominant controller architecture in facilities that installed FANUC robots during the 2013–2022 capital investment cycle. Many of these systems are now entering their second decade of operation, a phase where CPU board failures become statistically more frequent due to electrolytic capacitor aging, solder joint fatigue, and EEPROM wear.

The A16B-3200-0810 is a direct, plug-and-play replacement for the failed board in any R-30iB Plus cabinet. No hardware modification is required. After installation, the controller performs a standard boot sequence; system parameters and robot programs stored on the FROM/SRAM module are retained, minimizing re-commissioning time. In most cases, a trained maintenance technician can complete the board swap and return the robot to automatic mode within two to four hours — compared to weeks of lead time for a factory repair or controller replacement.

For facilities managing aging FANUC fleets, a proactive replacement strategy — replacing the CPU board at the first appearance of intermittent communication alarms rather than waiting for a hard failure — reduces mean time to repair (MTTR) and eliminates the risk of a catastrophic failure during peak production. Holding one A16B-3200-0810 per robot cell, or at minimum one per controller model variant in your fleet, is a widely adopted best practice among maintenance managers in automotive and electronics manufacturing.

TOPNLMS maintains ready stock of the A16B-3200-0810 to support urgent replacement scenarios. Orders confirmed before the daily cut-off are dispatched same day via insured express freight, with tracking provided immediately upon shipment. For large-volume or blanket purchase orders, contact our team directly to discuss pricing and consignment stocking arrangements.

Support FAQ

Q1: Is the A16B-3200-0810 compatible with all R-30iB Plus controllers, or only specific robot models?
The A16B-3200-0810 is the Master CPU Board for the R-30iB Plus controller cabinet and is compatible across the full range of FANUC robots that ship with this controller, including the LR Mate 200iD, M-10iA/12, M-20iA/20M, M-710iC, R-2000iC, and ARC Mate series. Compatibility is determined by the controller model, not the robot arm model. Always verify your controller model plate before ordering.

Q2: How is the board tested before shipment, and what does the 12-month warranty cover?
Every unit undergoes functional power-on testing and communication bus verification prior to dispatch. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund — whichever the customer prefers — with no requirement to return the defective board for lengthy evaluation.

Q3: Can I install the A16B-3200-0810 myself, or does it require a FANUC-certified engineer?
Board replacement is a field-serviceable procedure documented in the FANUC R-30iB Plus Maintenance Manual. A qualified maintenance technician familiar with ESD precautions and controller cabinet safety procedures can perform the swap. TOPNLMS recommends powering down the controller, discharging the PSU capacitors per the manual, and grounding yourself with an ESD wrist strap before handling the board. If your team is not experienced with FANUC controller internals, engaging a certified FANUC service partner for the first replacement is advisable.

Q4: What is the recommended spare parts inventory strategy for a facility running multiple R-30iB Plus controllers?
Industry best practice for facilities with five or more R-30iB Plus controllers is to hold a minimum of one A16B-3200-0810 on-site at all times, supplemented by one A16B-2203-0360 PSU and one A66L-0001-0284 battery set per controller. For facilities with ten or more controllers, a two-board buffer is recommended to cover simultaneous failures during peak production periods. TOPNLMS offers volume pricing and scheduled replenishment programs — contact [email protected] to discuss a tailored stocking agreement.
