FANUC A06B-6400-H102: Sustaining CNC System Stability with Original αi Series Spare Parts

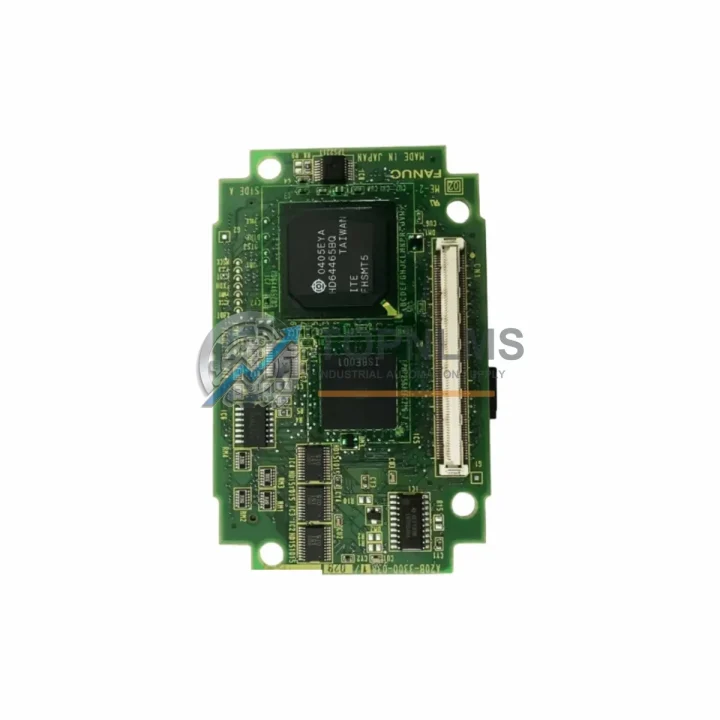

The FANUC A06B-6400-H102 (also referenced as A20B-3300-0381) is an original CF Module Board engineered for FANUC αi Series servo drive systems. In high-demand CNC manufacturing environments — from automotive body shops to precision aerospace machining centers — this board governs the critical interface between the CNC controller and the servo amplifier axis. Its failure triggers immediate axis faults, spindle alarms, and unplanned machine downtime. Stocking a verified original replacement is not optional; it is a core pillar of any responsible maintenance strategy.

At TOPNLMS, every A06B-6400-H102 unit is sourced from authorized supply channels, subjected to functional verification prior to dispatch, and backed by a 12-month warranty. Whether you are managing a single machining cell or a multi-line CNC floor, this spare part ensures you can restore full servo axis operation within hours — not days.

Critical Technical Specs

Preventive Maintenance Strategy for αi Series Servo Systems

When a CNC machine triggers an axis alarm or servo fault that points to the CF Module Board, experienced maintenance engineers know that the fault rarely exists in isolation. The αi Series servo drive architecture is a tightly integrated system — a degraded CF Module Board often coincides with stress on adjacent components that have been operating under the same thermal and electrical load cycles.

During any scheduled inspection or emergency repair involving the A06B-6400-H102, a thorough maintenance team will simultaneously audit the FANUC αi Series Servo Amplifier unit (such as the A06B-6110 or A06B-6120 series) for capacitor aging and cooling fan condition. The DC Bus capacitor bank within the amplifier module is a known wear item that should be evaluated whenever a control board is replaced. Equally important is the FANUC Power Supply Module (PSM) — units like the A06B-6110-H006 or A06B-6150-H030 — which feeds regulated DC voltage to the entire servo drive stack; a marginal PSM can cause repeated CF board failures if left unaddressed.

Maintenance teams should also inspect the FANUC Spindle Amplifier Module (SPM), particularly the A06B-6102 or A06B-6141 series, as spindle and servo axis faults frequently share root causes in the power distribution rail. The optical fiber communication cables connecting the CNC controller (FANUC 0i-F, 30i-B, or 31i-B5) to the servo amplifiers — typically FANUC FSSB fiber optic links — should be cleaned and continuity-tested, as signal degradation here can mimic CF board faults. Similarly, the I/O Link cable assemblies and FANUC I/O Module (A03B-0819 series) warrant inspection to rule out cascading communication errors.

For facilities running multi-axis machining centers, it is prudent to cross-check the FANUC Axis Control Card (A16B-3200 series) seated in the CNC controller rack, as well as the FROM/SRAM Module (A87L-0001-0175 series) which retains CNC parameters and ladder programs — a corrupted memory module can generate misleading servo alarms. Finally, the 24VDC control power supply feeding the I/O and relay circuits, along with the terminal block assemblies and fuse modules in the control cabinet, should be verified for correct voltage output and continuity before the machine is returned to production.

Proactive replacement of these interdependent components — rather than reactive single-part swaps — is the strategy that separates facilities with 98%+ uptime from those perpetually fighting recurring faults.

Strategic Replacement Solutions

The FANUC A06B-6400-H102 is a direct, drop-in replacement for the original CF Module Board in αi Series servo drive systems. No hardware modification is required. In most field scenarios, the replacement procedure involves powering down the servo cabinet, discharging the DC bus, swapping the board, and performing a standard servo parameter confirmation — a process that a trained CNC maintenance technician can complete in under two hours.

For facilities still operating legacy FANUC Series 16i, 18i, or 21i controllers paired with αi amplifiers, sourcing original spare boards like the A06B-6400-H102 is the most cost-effective path to system longevity. Retrofitting to a newer CNC generation carries significant re-commissioning costs and production risk. Maintaining a small buffer stock of critical control boards — typically one unit per three to five machines of the same model — eliminates the 2–6 week lead time risk associated with emergency procurement and keeps your maintenance budget predictable.

TOPNLMS ships the A06B-6400-H102 in full anti-static, shock-resistant packaging with a detailed inspection report. Express international shipping options are available to minimize machine downtime for facilities outside mainland China.

Support FAQ

Q1: Is the A06B-6400-H102 compatible with all αi Series servo amplifiers?
The A06B-6400-H102 CF Module Board is designed for FANUC αi Series servo drive systems and is compatible with the majority of αi amplifier variants used with FANUC 0i, 30i, 31i, and 32i CNC controllers. If you are unsure about compatibility with your specific amplifier model or CNC generation, please contact us with your full machine model and CNC software version — our technical team will confirm compatibility before shipment.

Q2: What testing is performed before shipment?
Every A06B-6400-H102 unit undergoes functional verification on a compatible test bench prior to dispatch. We check board-level power regulation, communication interface integrity, and component condition. A test report is available upon request. The unit ships in anti-static packaging with physical protection to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost. Warranty period begins from the date of confirmed shipment.

Q4: How should I manage spare board inventory for a multi-machine CNC facility?
For facilities operating five or more FANUC αi Series machines, we recommend maintaining at least one A06B-6400-H102 unit on-site as a hot spare. For larger fleets (10+ machines), a ratio of one spare per five machines is a practical baseline. Pairing this with buffer stock of the PSM, SPM, and fiber optic cables covers the majority of servo system failure scenarios and keeps mean-time-to-repair (MTTR) under four hours for most fault types.
