FANUC A06B-0828-B290 Replacement for αiI 22/10000 Series

Product Overview

FANUC A06B-0828-B290 Replacement for αiI 22/10000 Series: Seamless Transition & Legacy System Compatibility

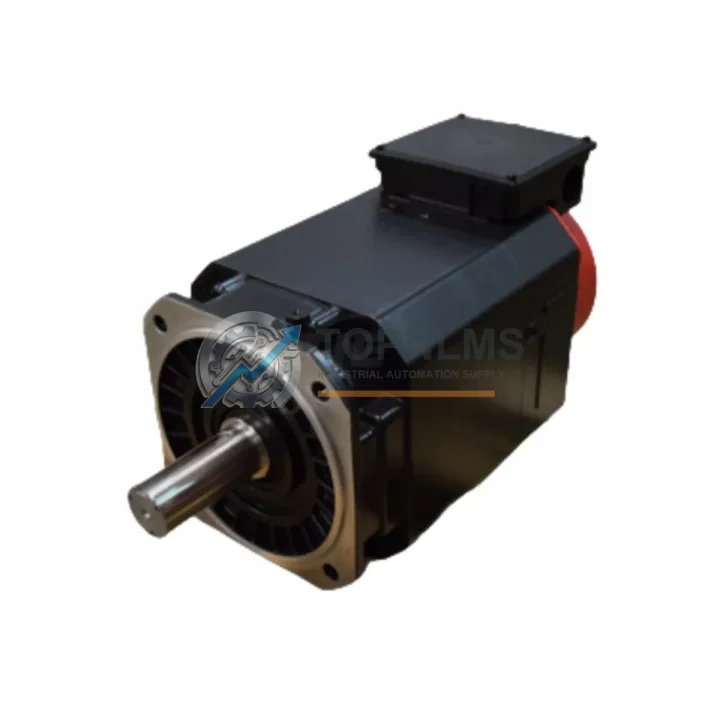

The FANUC A06B-0828-B290 is a high-performance AC spindle motor from the αiI (Alpha-i Integrated) Series, rated at 22 kW with a maximum speed of 10,000 RPM. Designed for demanding CNC machining environments, this motor is a direct replacement for aging or discontinued spindle drive units found in FANUC 0i, 16i, 18i, 21i, and 30i/31i/32i controller platforms. Whether your facility is managing a planned retrofit or responding to an unplanned spindle failure, the A06B-0828-B290 delivers the mechanical and electrical compatibility required to restore production with minimal downtime.

Industrial facilities operating legacy FANUC systems frequently encounter the challenge of sourcing reliable spindle motor replacements as original units reach end-of-life. The A06B-0828-B290 addresses this directly: its mounting flange dimensions, shaft diameter, and encoder interface are fully compatible with the αiI Series mechanical envelope, allowing technicians to complete a physical swap without machining modifications to the spindle housing or motor bracket. The built-in αi Pulse Coder (BZi or CZi type, depending on configuration) interfaces directly with the FANUC αi Series spindle amplifier modules — including the SPM-2.2, SPM-5.5, and SPM-11 — without requiring parameter remapping beyond standard spindle tuning procedures.

For facilities migrating from older α Series (non-integrated) spindle motors such as the A06B-0757-B100 or A06B-0758-B100, the transition to the A06B-0828-B290 involves verifying amplifier compatibility and updating the spindle parameter set within the CNC controller. The αiI motor’s integrated encoder eliminates the need for a separate encoder cable run, reducing wiring complexity in the control cabinet and improving signal integrity in high-EMI environments. Technicians should confirm that the existing FANUC Servo Amplifier Module (αi SVM or SPM) supports the αiI encoder protocol before completing the swap.

Power supply compatibility is another critical consideration during spindle motor migration. The A06B-0828-B290 operates on a three-phase AC input delivered through the spindle amplifier’s DC bus, which is fed by the FANUC Power Supply Module (PSM). Facilities using PSM-11 or PSM-15 units should verify that the bus capacity supports the 22 kW continuous rating of this motor under full spindle load. In multi-axis cabinets where the spindle amplifier shares a DC bus with axis servo amplifiers (αi SVM units), a load audit is recommended to prevent nuisance trips on the PSM overcurrent protection.

Communication and control integration is straightforward for systems already running FANUC FSSB (Fanuc Serial Servo Bus) architecture. The A06B-0828-B290 does not require a separate communication module — spindle speed commands, orientation signals, and encoder feedback are all managed through the existing FSSB fiber-optic link between the CNC control unit and the spindle amplifier. For older systems using analog ±10V spindle command interfaces, an interface adapter or amplifier upgrade may be required; our technical team can advise on the appropriate FANUC αi SPM replacement to support this migration path.

Installation space and thermal management are well-suited to standard FANUC spindle motor mounting configurations. The A06B-0828-B290 uses a flange-mount design compatible with BT40 and BT50 spindle head assemblies commonly found in vertical machining centers and turning centers. The motor’s IP54-rated enclosure provides adequate protection against coolant mist and swarf ingress in typical CNC shop environments. Forced-air cooling via the integrated fan is standard; facilities with high duty-cycle applications should verify that the motor’s thermal protection (OVC) parameters are correctly set in the spindle amplifier to prevent premature thermal shutdown.

From a spare parts and inventory management perspective, stocking the A06B-0828-B290 as a critical spare is a sound strategy for facilities running multiple FANUC-controlled machine tools. Its compatibility across the αiI Series platform means a single spare unit can serve as a backup for several machine models, reducing the total spare parts inventory cost. Complementary components that should be evaluated as part of a comprehensive spindle system spare parts plan include the FANUC A06B-6141-H002 spindle amplifier module, the A860-2000-T301 αi Pulse Coder, the A06B-6110-H015 power supply module, and the A02B-0307-B502 FANUC 0i-MD control unit for facilities considering a full CNC controller refresh alongside the spindle motor replacement.

For facilities undertaking a broader control system modernization — moving from FANUC Series 16i or 18i to the current 30i-B platform — the A06B-0828-B290 remains compatible with the new controller architecture, protecting the motor investment even as the CNC control hardware is upgraded. The 30i-B’s enhanced spindle control algorithms (including rigid tapping optimization and high-speed spindle orientation) are fully supported by the αiI motor’s encoder resolution, making this replacement motor a future-proof choice for long-term production continuity.

All units supplied by TOPNLMS undergo pre-shipment functional inspection including insulation resistance testing, encoder signal verification, and mechanical rotation check. Units are shipped in OEM-equivalent protective packaging with anti-static and moisture-barrier materials appropriate for precision servo motor transport. Standard lead time from our Xiamen warehouse is 1–3 business days for in-stock units, with express DHL/FedEx international shipping available to minimize total downtime from order placement to machine restart.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful spindle motor migration rarely involves a single component. When replacing the A06B-0828-B290 in a FANUC-controlled machining center, the following components are commonly evaluated or replaced as part of the same service event to ensure system-level reliability:

The FANUC A06B-6141-H002 Spindle Amplifier Module (αi SPM) is the most frequent companion replacement — if the spindle amplifier has accumulated significant operating hours alongside the failed motor, replacing both units simultaneously eliminates the risk of a second unplanned outage within months. The A860-2000-T301 αi Pulse Coder should be inspected and replaced if encoder error alarms (such as FANUC alarm 749 or 750) were present prior to the motor failure, as encoder degradation is often a contributing factor in spindle motor overload events. For facilities where the FANUC A06B-6110-H015 Power Supply Module (PSM) is approaching its recommended service interval, co-replacement during the spindle outage window is a cost-effective strategy that avoids a separate future shutdown.

On the I/O and control side, technicians performing a spindle retrofit often audit the FANUC A03B-0819-C001 I/O Module and associated terminal blocks to verify that spindle orientation, gear-change, and coolant interlock signals are correctly wired and functioning. If the machine tool uses a FANUC A05B-2301-C370 Operator Panel Interface or similar HMI unit, this is an appropriate time to verify that spindle override and manual spindle jog functions are operating correctly through the updated motor configuration. Facilities running multi-axis turning centers may also need to inspect the FANUC αi SVM (Servo Amplifier Module) units sharing the DC bus with the spindle amplifier, as bus voltage fluctuations during spindle acceleration can accelerate servo amplifier capacitor aging. Finally, for machines where the spindle motor replacement is part of a broader control modernization, the FANUC A02B-0307-B502 CNC Control Unit (0i-MD) and its associated FANUC A20B-8101-0320 Main CPU Board represent the logical next step in a phased upgrade roadmap that maximizes the service life of the new αiI spindle motor investment.

Retrofit Guidance FAQ

Q: Can I install the A06B-0828-B290 without modifying the spindle housing?
A: Yes. The αiI Series motor uses the same flange mounting dimensions as the outgoing α Series spindle motors in the same power class. No machining or adapter plates are required for a standard replacement in compatible machine tool spindle heads.

Q: Do I need to re-run encoder wiring after installing this motor?
A: No. The A06B-0828-B290 features an integrated αi Pulse Coder, which eliminates the need for a separate encoder cable between the motor and amplifier. Only the power cable and the integrated encoder connector (typically a 20-pin MDR connector to the SPM) need to be connected.

Q: Which FANUC CNC parameters need to be adjusted after replacement?
A: Standard spindle tuning parameters (No. 4000–4999 range on most FANUC controllers) should be verified against the motor specification sheet. Key parameters include spindle motor code (PRM4133), maximum spindle speed (PRM3741), and spindle orientation speed (PRM4073). No full parameter reload is required if the replacement motor is the same model as the original.

Q: Is this motor compatible with FANUC rigid tapping?
A: Yes. The integrated high-resolution Pulse Coder supports rigid tapping (G84/G74) on all compatible FANUC controllers. Ensure that the rigid tapping parameters (PRM4016, PRM4017) are correctly set for the spindle gear ratio of your specific machine tool.

Q: What is the lead time and shipping method?
A: In-stock units ship within 1–3 business days from our Xiamen warehouse. International express shipping via DHL or FedEx is standard, with typical transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for urgent orders placed before 14:00 CST.

Q: Can this motor be used with an older analog spindle amplifier?
A: The A06B-0828-B290 is optimized for use with FANUC αi Series digital spindle amplifiers using FSSB communication. Use with older analog-command amplifiers requires an interface adapter and is not recommended for new installations. Contact our technical team for amplifier upgrade options.

Warranty Assurance

Every FANUC A06B-0828-B290 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our pre-shipment inspection protocol includes insulation resistance testing (IR test at 500V DC), encoder signal output verification using a FANUC-compatible servo analyzer, mechanical rotation and bearing noise assessment, and visual inspection of all connectors, shaft seals, and cooling fan assemblies. Units that do not meet our acceptance criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim verification, with return shipping costs covered for confirmed manufacturing defects. Our after-sales technical support team is available via email and phone to assist with installation questions, parameter configuration, and fault diagnosis during the warranty period. For customers requiring on-site support in mainland China, regional service coordination is available upon request.

Purchasing through TOPNLMS also provides access to our inventory reservation service — customers managing planned maintenance shutdowns can reserve specific units up to 90 days in advance, ensuring parts availability aligns with scheduled downtime windows. All invoices include full traceability documentation (batch number, inspection record, and shipping manifest) to support your internal maintenance management system records.
