EMERSON KJ4006X1-BP1 Original Industrial Spare DeltaV Compatible

Product Overview

EMERSON KJ4006X1-BP1 Original Industrial Spare DeltaV Compatible: System Stability & Maintenance Value

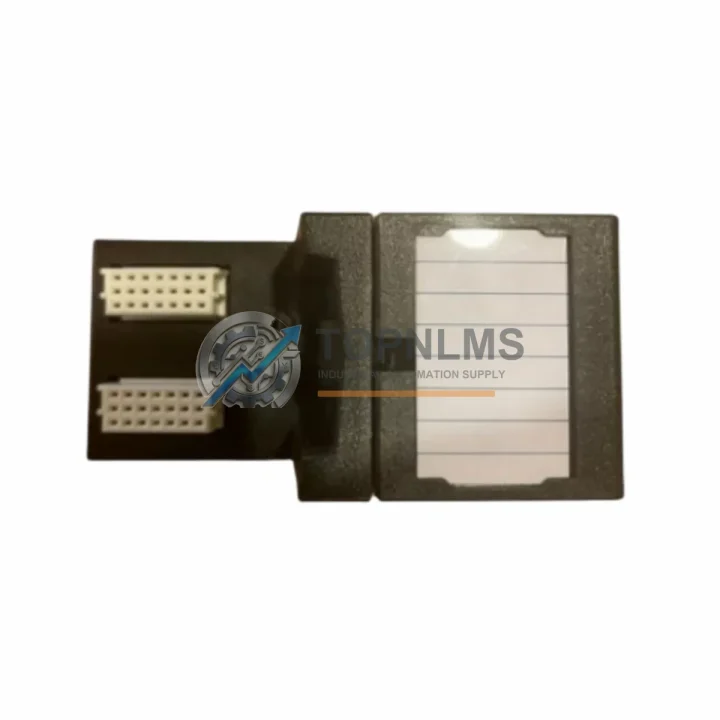

The EMERSON KJ4006X1-BP1 is an original field wiring terminal block engineered for the DeltaV Distributed Control System (DCS) platform. In process industries — including oil & gas, petrochemical, power generation, pharmaceuticals, and water treatment — the field wiring terminal block is a foundational component that bridges field instrumentation signals to the DeltaV I/O subsystem. A failed or degraded terminal block can interrupt signal continuity across an entire I/O channel, triggering nuisance alarms, loss of process visibility, or unplanned shutdowns. Stocking the KJ4006X1-BP1 as a verified original spare is a direct investment in system uptime and maintenance readiness.

Original EMERSON DeltaV components are manufactured to exacting tolerances and validated against the DeltaV hardware ecosystem. Unlike aftermarket alternatives, the KJ4006X1-BP1 ensures full electrical compatibility with DeltaV I/O cards, marshalling cabinets, and field junction boxes without requiring re-engineering or re-commissioning. For facilities running legacy DeltaV S-series or M-series controllers, maintaining a stock of original terminal blocks is essential to preserving system integrity as the installed base ages.

Critical Technical Specs

Preventive Maintenance Strategy

Field wiring terminal blocks like the KJ4006X1-BP1 are often overlooked during routine DeltaV cabinet inspections — yet they are among the highest-wear passive components in a marshalling cabinet. Vibration, thermal cycling, and years of field wiring connections cause terminal screws to loosen, contact surfaces to oxidize, and plastic housings to become brittle. A structured preventive maintenance program should include terminal block inspection and torque verification at every scheduled shutdown.

When inspecting or replacing the KJ4006X1-BP1, maintenance teams should simultaneously audit adjacent components in the same I/O loop. The KJ3002X1-BA1 DeltaV AI/AO I/O card that interfaces with this terminal block should be checked for firmware currency and contact integrity. The KJ3221X1-BB1 DI module and KJ3222X1-BC1 DO module sharing the same marshalling cabinet row are subject to the same environmental stresses and warrant inspection. Signal cables and DeltaV-compatible shielded twisted-pair field cables connecting transmitters to the terminal block should be tested for insulation resistance and continuity — degraded cable insulation is a common root cause of intermittent signal faults that are misdiagnosed as I/O card failures.

Power distribution within the DeltaV cabinet also deserves attention during any terminal block replacement. The KJ4001X1-BA1 DeltaV power supply module and associated 24 VDC bus fuse modules should be verified for output voltage stability and fuse integrity. A marginal power supply can cause erratic behavior across multiple I/O channels simultaneously, masking the true source of the fault. Replacing the KJ4006X1-BP1 without verifying upstream power quality may result in repeat failures.

For facilities with HART-enabled field devices, the KJ4005X1-BA1 HART multiplexer module connected downstream of the terminal block should be tested for communication integrity. HART pass-through depends on clean signal termination at the terminal block level — a corroded or loose terminal connection will degrade HART communication before it causes a visible 4–20 mA fault. Additionally, DeltaV-compatible signal isolators and surge protection modules installed between the terminal block and field instruments should be inspected for proper grounding and isolation resistance, particularly in facilities located in high-lightning-risk regions or near heavy electrical machinery.

Finally, the DeltaV controller chassis backplane — including the KJ4001X1-BA1 carrier assembly and associated KJ2003X1 controller module — should be included in any comprehensive cabinet audit. Loose backplane connectors and controller module seating issues can produce I/O faults that appear to originate at the terminal block level. A holistic inspection approach reduces repeat callouts and maximizes the value of each planned maintenance window.

Strategic Replacement Solutions

The KJ4006X1-BP1 is a direct original replacement for aging or failed field wiring terminal blocks in DeltaV S-series and M-series installations. Many facilities operating DeltaV systems installed in the late 1990s through 2010s are now encountering end-of-life hardware challenges: EMERSON has transitioned its primary support focus to DeltaV v14 and later platforms, and original spare parts for legacy I/O hardware are increasingly difficult to source through standard distribution channels.

Sourcing original KJ4006X1-BP1 units from a verified industrial spare parts supplier — rather than substituting with generic terminal blocks — eliminates the risk of signal impedance mismatches, grounding incompatibilities, and mechanical fit issues that can arise with non-OEM alternatives. Original components also preserve the validity of any existing EMERSON service agreements and simplify documentation for regulatory compliance audits in industries such as pharmaceuticals (FDA 21 CFR Part 11) and nuclear power.

For facilities planning a phased migration from legacy DeltaV hardware to the current DeltaV S-series or DeltaV Live platform, maintaining a buffer stock of KJ4006X1-BP1 terminal blocks provides a cost-effective bridge strategy. Rather than forcing an accelerated full-system replacement driven by a single component failure, a stocked spare allows maintenance teams to execute planned replacements on their own schedule — minimizing capital expenditure and operational disruption.

TOPNLMS pre-tests all KJ4006X1-BP1 units prior to shipment, verifying mechanical integrity, terminal contact resistance, and dimensional conformance. Each unit ships with a test report and is covered by a 12-month warranty against manufacturing defects and functional failure.

Support FAQ

Q1: Is the KJ4006X1-BP1 compatible with all DeltaV I/O card generations?
The KJ4006X1-BP1 is designed for DeltaV S-series and M-series I/O subsystems. It is mechanically and electrically compatible with the KJ3002X1, KJ3221X1, and KJ3222X1 families of I/O cards. If you are unsure of compatibility with your specific DeltaV revision, please contact us with your controller and I/O card model numbers for confirmation before ordering.

Q2: What is your pre-shipment testing process?
Every KJ4006X1-BP1 unit undergoes visual inspection, dimensional verification, and terminal contact resistance testing before dispatch. Units sourced as tested-good surplus are additionally powered and functionally verified where applicable. A test record is included with each shipment.

Q3: How should I manage KJ4006X1-BP1 inventory for a multi-unit DeltaV installation?
For facilities with 10 or more DeltaV I/O cabinets, we recommend maintaining a minimum buffer of 2–4 KJ4006X1-BP1 units per cabinet type. Terminal blocks have a typical service life of 10–15 years under normal industrial conditions; facilities approaching that threshold should consider a proactive bulk replacement program to avoid reactive emergency sourcing during unplanned outages.

Q4: What does the 12-month warranty cover, and what is the claims process?
