Emerson KJ4006X1-BD1 12P4722X042 Original Industrial Spare DeltaV Compatible

Product Overview

Emerson KJ4006X1-BD1 12P4722X042 Original Industrial Spare DeltaV Compatible: System Stability and Industrial Spare Maintenance Value

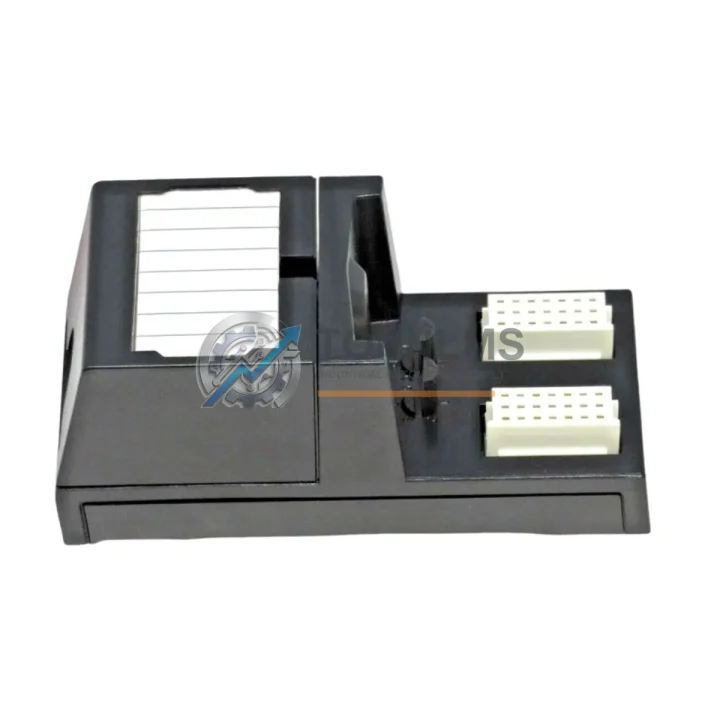

The Emerson KJ4006X1-BD1 12P4722X042 is a genuine original Interface Terminal Block engineered for the Emerson DeltaV distributed control system platform. In process industries — including oil and gas, chemical, power generation, and pharmaceutical manufacturing — the DeltaV system is the backbone of continuous process control. When a terminal block fails or degrades, the consequences extend far beyond a single I/O channel: signal integrity is compromised, loop diagnostics become unreliable, and unplanned shutdowns become a real operational risk. Stocking the KJ4006X1-BD1 12P4722X042 as a verified original spare is one of the most cost-effective decisions a maintenance team can make to protect system uptime.

This terminal block serves as the field-side wiring interface between DeltaV I/O cards and field instrumentation. It is designed for direct marshalling cabinet installation, providing secure, vibration-resistant screw-terminal connections that maintain signal fidelity across the full industrial temperature and humidity range. The 12P4722X042 revision designation confirms this unit meets Emerson’s current manufacturing and quality standards, making it a direct drop-in replacement for aging or failed units in existing DeltaV installations without requiring any software reconfiguration or I/O card replacement.

Critical Technical Specs Table

Preventive Maintenance Strategy

A terminal block failure in a DeltaV marshalling cabinet rarely occurs in isolation. Field wiring degradation, moisture ingress, and vibration fatigue affect the entire I/O subsystem simultaneously. When replacing the KJ4006X1-BD1 12P4722X042, experienced maintenance engineers treat the event as a trigger for a broader cabinet inspection — and for good reason.

Begin by auditing the associated DeltaV I/O cards (such as the KJ3002X1-BA1 AI card or KJ3221X1-BA1 DO card) that mate with this terminal block. A degraded terminal block can cause intermittent signal errors that are often misdiagnosed as I/O card faults; replacing the terminal block first eliminates the most common root cause before committing to a more expensive card swap. At the same time, inspect the KJ4001X1-BA1 power supply module that feeds the I/O subsystem — power rail instability accelerates terminal oxidation and connector wear.

Check all field signal cables and shielded twisted-pair wiring connected to the terminal block. Damaged cable insulation or improperly grounded shields introduce noise into analog loops, which manifests as erratic PV readings and false alarms. If the cabinet serves a critical control loop, consider installing signal isolators or signal conditioners on high-noise analog channels to protect measurement integrity independently of terminal block condition.

During the same maintenance window, verify the condition of DeltaV communication modules (such as the KJ4001X1-BA1 CHARM I/O card or CIOC controller interface) that coordinate data exchange between the I/O subsystem and the DeltaV controller. A single degraded communication path can cause entire I/O banks to go offline. Inspect fuse modules and circuit protection devices on the 24 VDC field power distribution rail — blown or weakened fuses are a leading cause of unexplained field device dropouts that are often attributed to terminal block or I/O card failure.

For facilities running legacy DeltaV S-series or M-series controllers, also schedule inspection of the controller carrier or I/O carrier backplane. Backplane connector oxidation causes intermittent module communication errors that are difficult to diagnose without physical inspection. Pairing a KJ4006X1-BD1 12P4722X042 replacement with a backplane cleaning and connector re-seating procedure significantly reduces the risk of repeat failures within the same maintenance cycle.

Finally, review the DeltaV workstation and operator interface (HMI) alarm logs for the 30 days preceding the terminal block failure. Recurring loop alarms, device offline events, or communication timeouts in the same I/O bank are early indicators of systemic wiring or power distribution issues that a single terminal block replacement will not fully resolve. A structured review of alarm history transforms a reactive repair into a proactive maintenance event.

Strategic Replacement Solutions

The KJ4006X1-BD1 12P4722X042 is a direct replacement for earlier DeltaV interface terminal block revisions used in legacy marshalling architectures. Facilities that originally installed DeltaV systems in the early 2000s may be running terminal blocks that have exceeded their recommended service life, even if they have not yet failed outright. Proactive replacement — scheduled during planned turnarounds rather than forced by an emergency — eliminates the risk of unplanned downtime and avoids the premium costs associated with emergency procurement.

Because the KJ4006X1-BD1 12P4722X042 is a genuine original Emerson component, it requires no firmware updates, no I/O card reconfiguration, and no DeltaV database changes upon installation. Field wiring reconnects to the same terminal positions, and the I/O card recognizes the replacement unit immediately upon power-up. This plug-and-play compatibility is a critical advantage over third-party alternatives, which may introduce subtle signal offset errors or require additional commissioning time.

For facilities managing large DeltaV installations across multiple process units, maintaining a minimum buffer stock of two to four KJ4006X1-BD1 12P4722X042 units per control room significantly reduces mean time to repair (MTTR) for I/O-related faults. Combined with a documented spare parts register and a scheduled terminal block inspection program, this inventory strategy supports a mature reliability-centered maintenance (RCM) posture that measurably reduces unplanned shutdown frequency.

Support FAQ

Q1: Is the KJ4006X1-BD1 12P4722X042 compatible with all DeltaV I/O card generations?
The KJ4006X1-BD1 is designed for the Emerson DeltaV I/O subsystem and is compatible with the standard DeltaV marshalling architecture used across S-series and M-series controller generations. For CHARM-based (CHARacterization Module) I/O architectures introduced in DeltaV v12 and later, a different terminal block form factor is required. If you are unsure which architecture your system uses, contact us with your DeltaV system version and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on this unit?
Every KJ4006X1-BD1 12P4722X042 unit is inspected for physical integrity, connector condition, and terminal torque specification compliance before dispatch. Units sourced from original manufacturer stock are verified against Emerson’s part number and revision markings. A 12-month warranty covering manufacturing defects and functional failure is included with every shipment. Test records are available upon request for quality-critical applications.

Q3: How should I manage spare parts inventory for DeltaV terminal blocks?
Industry best practice for DeltaV installations recommends maintaining a minimum of one spare terminal block per 20 installed units, with higher buffer ratios for critical process areas. Terminal blocks in high-vibration or high-humidity environments should be inspected annually and replaced on a 7–10 year lifecycle regardless of apparent condition. Centralizing spare parts procurement through a verified supplier reduces lead time risk and ensures revision consistency across your installed base.

Q4: What is the lead time and shipping arrangement for this part?
In-stock units typically ship within 1–3 business days of order confirmation. International shipments are dispatched via DHL, FedEx, or UPS Express with full tracking. Export documentation, including commercial invoice and packing list, is provided for customs clearance. For urgent requirements, expedited same-day dispatch is available — contact us directly to confirm stock availability and arrange priority shipping.
