Emerson KJ4006X1-BD1 Replacement for DeltaV Series

Product Overview

Emerson KJ4006X1-BD1 Replacement for DeltaV Series: Smooth Migration & Legacy System Upgrade

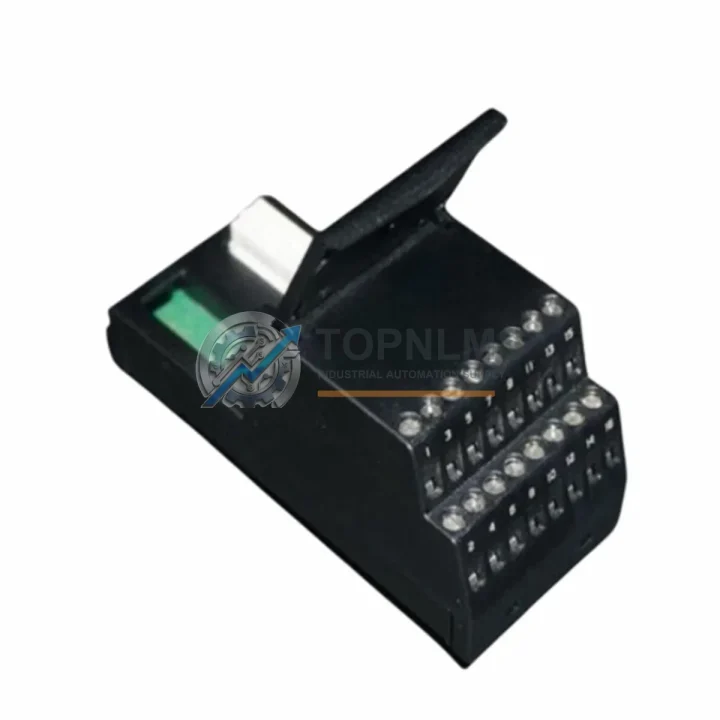

The Emerson KJ4006X1-BD1 is a DeltaV Series I/O Terminal Block designed to interface field wiring with DeltaV I/O subsystem cards. As Emerson continues to evolve the DeltaV platform, many facilities operating legacy DeltaV MD, DeltaV S-series, or early DeltaV M-series controllers are encountering end-of-life notices on original terminal block assemblies. The KJ4006X1-BD1 serves as a direct replacement and upgrade path for those discontinued or hard-to-source terminal block variants, enabling a smooth transition without requiring full panel rewiring or controller replacement.

For plants running aging DCS architectures — including systems built around the KJ1501X1-BA2 controller carrier, KJ2201X1-HA1 power supply modules, or early-generation KJ3001X1-BA1 I/O interface cards — the KJ4006X1-BD1 provides a field-proven, pin-compatible terminal interface that preserves existing 4–20 mA analog signal wiring, discrete I/O connections, and HART-enabled instrument loops. Engineers migrating from older terminal block assemblies such as the KJ4001X1-BC1 or KJ4002X1-BC1 will find that the KJ4006X1-BD1 maintains the same 16-channel screw terminal layout, reducing retrofit labor and minimizing the risk of wiring errors during cutover.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV I/O terminal block migration rarely involves a single component. In practice, field engineers replacing the KJ4006X1-BD1 are often simultaneously addressing adjacent hardware in the same I/O enclosure or control cabinet. The most common co-replacement scenario involves the KJ3221X1-BA1 analog input card, which mounts directly to the terminal block carrier and must be confirmed compatible before cutover. In systems where the KJ2201X1-HA1 DeltaV power supply module is approaching its service life, it is advisable to replace it concurrently to avoid a secondary unplanned outage.

For facilities upgrading communication infrastructure alongside the terminal block swap, the KJ4022X1-BA1 HART multiplexer interface and the KJ1501X1-BA2 DeltaV controller carrier are frequently part of the same modernization scope. Where the existing control cabinet uses a KJ3001X1-BA1 discrete I/O card paired with the legacy terminal block, engineers should verify that the new KJ4006X1-BD1 terminal block’s screw pitch and channel labeling align with the existing field cable schedule before energizing the loop.

In larger DCS migration projects, the KJ4006X1-BD1 is often deployed alongside the KJ3002X1-BA1 analog output card, KJ4001X1-BC1 terminal block (for parallel redundant loops), and the KJ3101X1-BA1 foundation fieldbus interface card. Signal isolators and surge protection barriers installed on the field side of the terminal block should also be inspected and replaced if they are rated for the legacy system’s lower signal bandwidth. Ensuring that the DeltaV workstation running DeltaV Operate or DeltaV Diagnostics is updated to a firmware version that recognizes the KJ4006X1-BD1 module descriptor is a critical pre-commissioning step that is often overlooked in fast-track retrofit projects.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the terminal block with KJ4006X1-BD1?
A: Yes. The KJ4006X1-BD1 uses the same screw terminal pitch and channel assignment as the legacy KJ4001X1-BC1 and KJ4002X1-BC1 models. Existing 4–20 mA and discrete I/O field cables can be reconnected without re-termination in most cases. Always verify the field cable schedule against the new terminal block’s channel map before energizing.

Q: Is the KJ4006X1-BD1 compatible with HART-enabled instruments?
A: Yes. The terminal block supports HART 5, 6, and 7 pass-through when paired with a compatible DeltaV analog input card such as the KJ3221X1-BA1. No additional HART modem or multiplexer is required for standard HART communication.

Q: Will I need to modify my DeltaV control program after replacing the terminal block?
A: No program changes are required for a like-for-like terminal block replacement. The DeltaV I/O subsystem recognizes the terminal block through the I/O card, not the terminal block itself. If you are also upgrading the I/O card, a module descriptor update in DeltaV Explorer may be required.

Q: Does the KJ4006X1-BD1 fit in the existing DeltaV I/O enclosure without panel modification?
A: Yes. The KJ4006X1-BD1 shares the same DIN rail mounting footprint and carrier rail interface as the legacy terminal block assemblies it replaces. No drilling, cutting, or panel modification is required.

Q: What communication protocols does the DeltaV I/O bus support through this terminal block?
A: The DeltaV I/O bus is a proprietary Emerson protocol. The KJ4006X1-BD1 is fully compatible with this bus as implemented in DeltaV MD, S-series, and M-series controllers. HART pass-through is also supported for field instrument diagnostics.

Q: How do I verify the terminal block is functioning correctly after installation?
A: Use DeltaV Diagnostics to confirm that the I/O card recognizes all channels on the new terminal block. Perform a loop check on each field instrument before returning the loop to automatic control. Check for any alarm or fault indication in DeltaV Operate related to the replaced module.

Warranty Assurance

Every KJ4006X1-BD1 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection including visual examination, terminal continuity verification, and compatibility confirmation against the DeltaV I/O subsystem specification. Units are packaged in anti-static protective packaging suitable for international air and sea freight.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund, subject to return inspection. Our after-sales response target is within 24 business hours for warranty claims submitted via email. Expedited replacement shipments are available for critical plant operations upon request.

Stock is maintained in Xiamen, China, with standard lead times of 3–7 business days for international DHL/FedEx express shipments. Customers requiring urgent same-day dispatch should contact our sales team directly to confirm stock availability and arrange priority handling.

TOPNLMS specializes in sourcing and supplying industrial automation components including DCS modules, PLC I/O cards, terminal blocks, communication modules, and control system spare parts from leading brands. All products are sourced through verified supply channels and are subject to pre-shipment quality inspection.
