Emerson KJ4001X1-NA1 12P3373X012 Upgrade for DeltaV: Seamless Transition from Legacy Cable Configurations

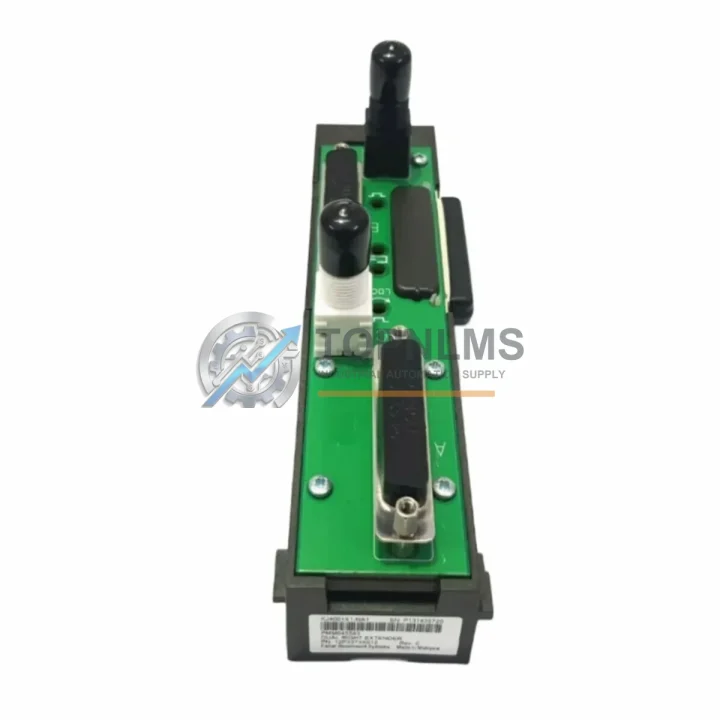

When a DeltaV distributed control system requires a cable extender replacement or a rack-level wiring upgrade, the Emerson KJ4001X1-NA1 (12P3373X012) Right Cable Extender is the precision-engineered solution that ensures continuity of operation without system redesign. This component is purpose-built for DeltaV S-series controller nodes and I/O subsystems, providing the physical and electrical bridge between I/O carrier assemblies and their associated field termination assemblies (FTAs) or marshalling panels. For facilities managing aging DeltaV infrastructure — particularly those running MD or MD Plus controllers alongside legacy KJ-series I/O modules — this cable extender enables a direct, wiring-compatible swap that eliminates the need for panel rewiring or software reconfiguration.

The KJ4001X1-NA1 is specifically designed as a right-angle cable extender, addressing the physical space constraints common in densely populated DeltaV control cabinets. In retrofit scenarios where the original cable routing has become rigid, damaged, or incompatible with a new carrier position, this extender restores proper mechanical alignment between the I/O module carrier — such as the KJ3001X1-BA1 eight-slot I/O carrier — and the vertical bus structure of the DeltaV enclosure. Its connector geometry matches the DeltaV backplane interface standard, meaning no adapter plates, no custom harnesses, and no signal integrity compromises during the transition.

Compatibility Comparison Table

Seamless Upgrade Solutions

A cable extender replacement rarely occurs in isolation. In most DeltaV retrofit projects, the KJ4001X1-NA1 is installed alongside a broader set of component upgrades that collectively restore system integrity and extend operational life. During a typical I/O subsystem refresh, engineers will simultaneously address the KJ3001X1-BA1 I/O carrier condition — inspecting backplane contacts and replacing the carrier if corrosion or mechanical wear is detected. The carrier and cable extender form a matched assembly; replacing one without evaluating the other is a common source of intermittent faults post-commissioning.

In systems where the DeltaV MD or MD Plus controller is the primary processing node, the cable extender interfaces directly with the controller’s I/O bus. If the migration scope includes upgrading from an older KJ2003X1-BA1 MD Controller to a current-generation MD Plus, the KJ4001X1-NA1 remains compatible across both generations, protecting the cable investment during a phased hardware upgrade. Similarly, when field termination assemblies such as the KJ3221X1-BA1 Analog Output HART Module are being replaced as part of a loop modernization effort, the cable extender’s right-angle geometry helps manage the increased wiring density in the marshalling zone without requiring cabinet expansion.

For sites transitioning from legacy PROVOX or RS3 systems to DeltaV, the cable extender is part of the physical layer standardization that makes the migration tractable. The DeltaV CIOC (Charm I/O Card) architecture used in newer installations uses a different physical interface, but for facilities maintaining classic DeltaV I/O infrastructure in parallel with CHARM-based expansions, the KJ4001X1-NA1 ensures the legacy I/O nodes remain mechanically sound during the transition period. Power supply modules such as the KJ1501X1-BG2 Power Supply that feed the I/O carrier assemblies are unaffected by the cable extender swap, as the extender draws no additional current from the bus.

Communication integrity is preserved throughout the replacement. The DeltaV internal bus protocol — which carries both I/O data and diagnostic information between the controller and I/O modules — passes through the cable extender without modification. This means that HART pass-through functionality on analog modules, Foundation Fieldbus segment data from FF Interface Modules (FFIM), and PROFIBUS DP traffic from gateway modules all continue to operate normally after the extender is replaced. No controller download, no module re-addressing, and no loop checkout is required solely as a result of the cable extender swap.

In control cabinet environments where space is at a premium — particularly in offshore platforms, compact skid-mounted systems, or older DeltaV enclosures with limited cable management provisions — the right-angle design of the KJ4001X1-NA1 provides a measurable advantage over straight extenders. It reduces the minimum bend radius required for the cable run between the I/O carrier and the adjacent termination panel, which is critical when the DeltaV Vertical Carrier (KJ3002X1-BA1) is mounted in a configuration that leaves less than 50mm of clearance above the carrier assembly. Field engineers report that this geometry difference alone can reduce installation time by 30–40 minutes per node in tight enclosures.

Retrofit Guidance FAQ

Q: Is the KJ4001X1-NA1 a direct drop-in replacement for other DeltaV cable extender variants?
A: Yes, for right-angle applications. The connector interface is standardized across the DeltaV S-series platform. If your existing installation uses a straight extender, verify that the right-angle geometry is compatible with your cabinet’s cable routing before installation.

Q: Does replacing the cable extender require a DeltaV controller download or system restart?
A: No. The cable extender is a passive mechanical component. Replacement can be performed during a scheduled maintenance window without triggering a controller download. However, the I/O carrier must be powered down before disconnecting the extender to avoid backplane bus errors.

Q: Will HART communication on connected analog modules be interrupted during replacement?
A: HART communication will be interrupted only during the physical swap. Once the KJ4001X1-NA1 is seated and the carrier is powered, HART pass-through resumes automatically. No HART master reconfiguration is required.

Q: Is this extender compatible with both DeltaV MD and MD Plus controllers?
A: Yes. The KJ4001X1-NA1 is compatible with all DeltaV S-series controller generations that use the standard I/O carrier bus interface, including MD, MD Plus, and MQ controllers.

Q: What is the physical installation procedure?
A: Power down the I/O carrier. Disconnect the existing cable extender by releasing the locking tab and pulling straight out. Align the KJ4001X1-NA1 with the carrier connector, press firmly until the locking tab engages, then restore power. Verify I/O module status LEDs return to normal operating state.

Q: Can this extender be used in hazardous area (Ex) classified cabinets?
A: The KJ4001X1-NA1 itself is not an intrinsically safe component. Its use in Ex-classified enclosures depends on the overall system certification of the DeltaV installation. Consult your site’s Ex documentation before installation in classified areas.

Warranty Assurance

Every KJ4001X1-NA1 12P3373X012 shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point inspection that verifies connector pin integrity, locking tab function, cable jacket condition, and backplane interface alignment. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit within 3–5 business days of claim verification. Our technical support team is available to assist with installation confirmation, fault diagnosis, and compatibility verification before and after shipment. We maintain bonded stock of DeltaV cable accessories and I/O carrier components to ensure rapid fulfillment for emergency replacement orders.

Orders are processed and dispatched from our Xiamen warehouse, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available for time-critical shipments. Standard lead time for in-stock items is 1–2 business days. For bulk procurement or standing orders, contact our sales team to discuss consignment stock arrangements and volume pricing.

TOPNLMS is an independent supplier of industrial automation components. We are not an authorized Emerson distributor. All products are sourced through verified supply channels and are subject to our incoming inspection protocol before being offered for sale.
