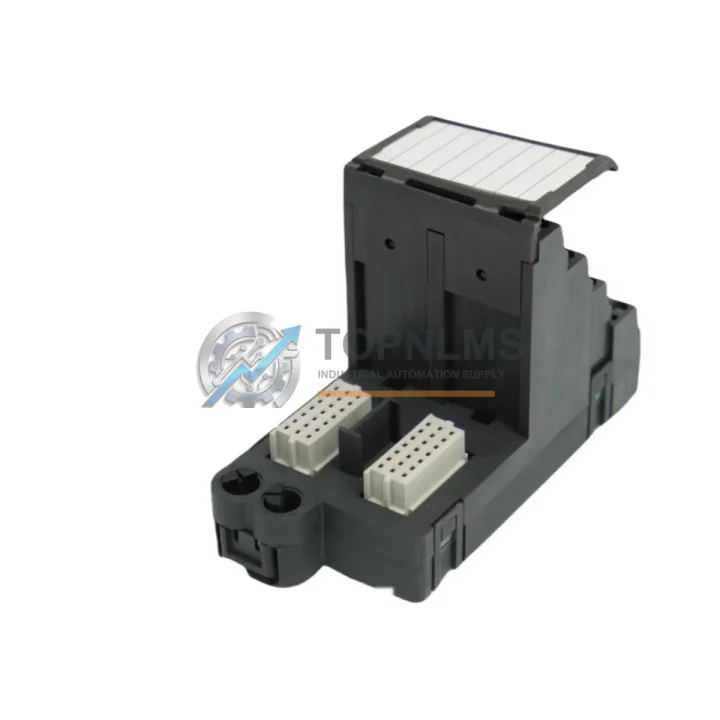

Emerson KJ4001X1-CJ1 12P1902X062 Ruggedized Terminal Block

Product Overview

Emerson KJ4001X1-CJ1 12P1902X062 Ruggedized Terminal Block: Industrial Resilience for Harsh Environments

The Emerson KJ4001X1-CJ1 12P1902X062 is a high-integrity DeltaV I/O subsystem terminal block engineered to deliver uninterrupted signal integrity and field-level reliability in the most demanding industrial environments. Designed as a core interconnect component within Emerson’s DeltaV distributed control architecture, this terminal block provides the critical interface between field instrumentation and the DeltaV I/O cards — ensuring that process signals remain clean, stable, and accurately transmitted even under conditions of extreme temperature variation, persistent vibration, airborne particulate contamination, and high electromagnetic interference.

In continuous process industries — including oil and gas upstream and midstream operations, petrochemical refining, power generation, water and wastewater treatment, metallurgical processing, and heavy mining — control system uptime is not optional. A single point of signal failure at the terminal block level can cascade into process upsets, safety system activations, or unplanned shutdowns. The KJ4001X1-CJ1 12P1902X062 is built to eliminate that risk, providing a mechanically robust, electrically stable termination point that maintains performance across the full operational lifecycle of the DeltaV system.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ4001X1-CJ1 12P1902X062 does not operate in isolation — it is a precision component within a tightly integrated DeltaV control architecture. In a typical DeltaV cabinet installation, this terminal block works in concert with the Emerson KJ1501X1-BA2 DeltaV I/O carrier, which physically houses the I/O modules and routes signals to the termination layer. Field wiring from transmitters, actuators, and sensors connects through the terminal block to DeltaV I/O cards such as the KJ3221X1-BA1 analog input module or the KJ3002X1-BA1 discrete output module, depending on the process loop type.

For installations in hazardous classified areas — Zone 1, Zone 2, or Division 1 environments — the terminal block is often paired with Emerson MTL or Pepperl+Fuchs Zener barriers and galvanic isolators to ensure intrinsic safety compliance. In high-vibration environments such as compressor stations or rotating equipment skids, the terminal block’s secure DIN rail locking mechanism prevents loosening of field wire connections, which is a common failure mode in lesser-quality termination assemblies.

Power distribution within the same control cabinet is typically managed by Emerson DeltaV power supplies (such as the KJ4001X1-series power conditioners) or third-party 24 VDC SITOP or Phoenix Contact QUINT power supplies, all of which feed the I/O subsystem through the carrier and termination layer. Communication between the DeltaV controller and the I/O subsystem relies on the DeltaV FOUNDATION Fieldbus H1 interface card or standard 4–20 mA HART-enabled I/O, both of which depend on clean, low-impedance termination points — exactly what the KJ4001X1-CJ1 12P1902X062 provides.

In safety-instrumented system (SIS) architectures, the terminal block may interface with Emerson DeltaV SIS logic solvers and associated field termination assemblies, ensuring that safety loop integrity is maintained from the field device all the way to the safety controller. Relay output modules, such as the KJ3222X1-BA1, are also commonly terminated through compatible DeltaV terminal blocks in the same cabinet row, providing a unified and maintainable wiring infrastructure.

Application in Critical Infrastructure

In oil and gas production facilities, the KJ4001X1-CJ1 12P1902X062 is deployed in wellhead control panels, separator skids, and gas compression stations where ambient temperatures fluctuate widely and vibration from rotating machinery is constant. The terminal block’s robust mechanical design ensures that field wiring connections remain secure and signal-true across years of continuous operation without requiring periodic re-torquing.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — DeltaV-based control systems manage boiler combustion, turbine speed control, and emissions monitoring. The KJ4001X1-CJ1 12P1902X062 serves as the termination interface for temperature, pressure, and flow transmitters throughout the plant, where electromagnetic interference from large motors, transformers, and bus bars is a persistent challenge to signal quality.

In water and wastewater treatment plants, high humidity and chemical vapors create a corrosive environment that degrades inferior termination hardware. The DeltaV terminal block’s materials and construction are selected to resist oxidation and maintain contact resistance stability over time, supporting reliable SCADA and DCS integration for pump control, chemical dosing, and effluent monitoring loops.

In metallurgical and mining operations, where dust ingress, mechanical shock, and extreme thermal cycling are daily realities, the KJ4001X1-CJ1 12P1902X062 provides the termination reliability needed to keep DeltaV-controlled conveyor systems, crusher controls, and smelter process loops running without nuisance trips or signal degradation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
Every KJ4001X1-CJ1 12P1902X062 unit undergoes pre-shipment functional inspection including visual examination for physical damage, connector integrity verification, and where applicable, continuity and signal path testing. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this terminal block compatible with all DeltaV I/O carrier generations?
The KJ4001X1-CJ1 12P1902X062 is designed for use within the Emerson DeltaV I/O subsystem architecture. Compatibility is confirmed for standard DeltaV S-series and M-series controller configurations using the corresponding I/O carrier assemblies. For specific revision or hardware compatibility questions, please contact our technical team at [email protected] before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains stock of DeltaV I/O subsystem components including terminal blocks, I/O carriers, and associated modules to support both emergency replacement and planned maintenance procurement. We can provide scheduled delivery agreements for customers with ongoing MRO requirements, ensuring supply continuity for critical plant assets without dependence on OEM lead times.
