Emerson KJ4001X1-CJ1 12P1902X032 DeltaV S-Series Upgrade

Product Overview

Emerson KJ4001X1-CJ1 12P1902X032 DeltaV S-Series Upgrade: Seamless Migration from Legacy Terminal Architectures

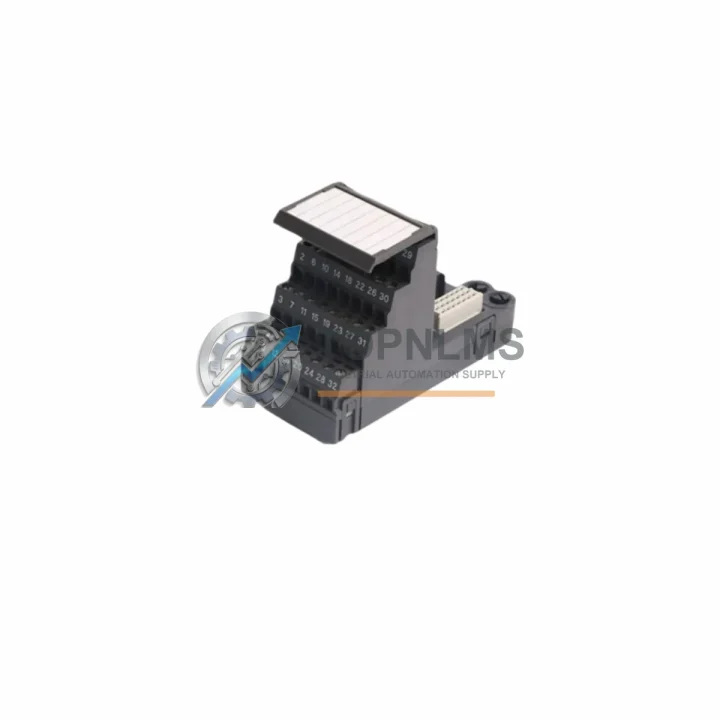

The Emerson KJ4001X1-CJ1 12P1902X032 is a Channel Terminal Block designed for the DeltaV S-Series distributed control system platform. As process plants worldwide accelerate the retirement of aging DCS infrastructure — including legacy Provox, RS3, and early DeltaV M-Series field junction architectures — this terminal block serves as a critical interface component enabling engineers to migrate field wiring to the modern DeltaV S-Series I/O subsystem with minimal disruption to existing cable schedules and marshalling cabinet layouts.

When a facility transitions from an older DeltaV M-Series Electronic Marshalling setup or a conventional hardwired marshalling panel to the S-Series architecture, one of the most time-sensitive challenges is preserving existing field wiring terminations. The KJ4001X1-CJ1 12P1902X032 addresses this directly: its terminal layout is engineered to accept standard 0.5–2.5 mm² field conductors, maintaining compatibility with the wire gauges and ferrule types already installed in the marshalling cabinet. This means retrofit teams can re-terminate field cables to the new terminal block without re-pulling wire from the field — a significant reduction in both labor cost and plant downtime.

In a typical S-Series migration project, the KJ4001X1-CJ1 12P1902X032 is installed alongside the DeltaV S-Series I/O Card (such as the KJ3002X1-BA1 AI card or KJ3221X1-BA1 DI card) and the corresponding DeltaV S-Series I/O Carrier. The terminal block clips directly onto the carrier, providing the physical and electrical interface between the field instrument loop and the I/O card’s signal conditioning circuitry. Engineers replacing a failed or end-of-life terminal block can swap the KJ4001X1-CJ1 12P1902X032 without removing the I/O carrier from the DIN rail or disturbing adjacent channel wiring — a hot-swap-friendly design that supports live system maintenance windows.

From a communication and system architecture perspective, the S-Series platform on which this terminal block operates uses the DeltaV FOUNDATION Fieldbus and HART protocol infrastructure. Plants migrating from standalone HART multiplexers or legacy Fieldbus H1 segment wiring will find that the S-Series I/O subsystem — with the KJ4001X1-CJ1 12P1902X032 as the field termination point — consolidates signal paths and reduces the number of discrete junction boxes required in the control room or marshalling area. This architectural simplification directly reduces the spare-parts inventory burden and the number of potential failure points in the signal chain.

For facilities decommissioning older Emerson CHARM (Characterization Module)-based Electronic Marshalling cabinets or transitioning away from the DeltaV M-Series CIOC (Conventional I/O Card) architecture, the KJ4001X1-CJ1 12P1902X032 provides a validated migration path. The physical footprint of the S-Series carrier and terminal block assembly is compatible with standard 19-inch rack and DIN rail enclosures, meaning existing control cabinet real estate can be reused without structural modification. Power supply requirements align with the 24 VDC bus standard common across DeltaV S-Series installations, eliminating the need for auxiliary power conversion modules in most retrofit scenarios.

During commissioning of a replacement or upgraded terminal block, field technicians should verify loop continuity at each channel position before energizing the I/O card. The KJ4001X1-CJ1 12P1902X032’s clearly labeled terminal positions — consistent with Emerson’s standard S-Series wiring diagrams — simplify the loop-check process and reduce the risk of cross-wiring errors during the cutover window. Integration with the DeltaV Operate HMI and the DeltaV Explorer configuration environment requires no additional driver installation; the S-Series I/O subsystem is natively recognized by the DeltaV controller, including the KJ2003X1-BA1 DeltaV S-Series Controller, upon power-up.

Plants sourcing this component as a critical spare should note that the KJ4001X1-CJ1 12P1902X032 is interchangeable across all DeltaV S-Series I/O carrier generations, providing long-term procurement flexibility as the installed base of S-Series hardware expands. Stocking one or two units per marshalling cabinet is a common best practice for facilities with high-availability process requirements, particularly in oil & gas, chemical, and power generation applications where unplanned I/O failures carry significant production risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete DeltaV S-Series migration typically involves several interdependent components beyond the terminal block itself. The KJ3002X1-BA1 Analog Input Card and KJ3221X1-BA1 Digital Input Card are the most common I/O cards paired with the KJ4001X1-CJ1 12P1902X032 in multi-channel marshalling upgrades. The KJ2003X1-BA1 DeltaV S-Series Controller serves as the processing backbone, while the KJ4001X1-BA1 S-Series I/O Carrier provides the mechanical and electrical bus interface to which the terminal block attaches. For facilities also upgrading their power distribution, the KJ4009X1-BA1 Power Supply Module ensures stable 24 VDC delivery across the S-Series backplane. Plants retaining legacy HART field devices during a phased migration may also require a HART Multiplexer Module as an interim interface, while those moving to full Fieldbus topology will integrate Fieldbus H1 Segment Couplers into the marshalling cabinet. Signal isolation requirements in mixed-signal environments are typically addressed with DIN-rail Signal Isolators installed adjacent to the S-Series carrier assembly. For programming and configuration, the DeltaV Operate Workstation and associated DeltaV Explorer Configuration Software complete the migration toolkit, enabling engineers to map legacy I/O addresses to the new S-Series channel assignments without rewriting control strategy logic from scratch.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a legacy terminal block with the KJ4001X1-CJ1 12P1902X032?
A: Yes. The S-Series terminal block accepts standard 0.5–2.5 mm² conductors. In most cases, existing field cables can be re-terminated directly without re-pulling wire, provided the cable length and routing remain unchanged.

Q: Is the KJ4001X1-CJ1 12P1902X032 compatible with HART-enabled field instruments?
A: Yes. The S-Series I/O subsystem natively supports HART communication on analog channels. No additional HART modem or multiplexer is required when using HART-capable I/O cards.

Q: What programming changes are needed after replacing the terminal block?
A: None for the terminal block itself. If the I/O card and carrier are also being replaced, channel address reassignment in DeltaV Explorer may be required, but existing control module logic and faceplates are preserved.

Q: Does the S-Series terminal block fit in the same cabinet space as the legacy assembly?
A: The S-Series carrier and terminal block assembly is DIN-rail mounted and compatible with standard 19-inch and 24-inch marshalling enclosures. Physical footprint is typically equal to or smaller than legacy assemblies.

Q: What is the power supply requirement for the KJ4001X1-CJ1 12P1902X032?
A: The terminal block is powered via the S-Series I/O carrier bus at 24 VDC. No separate loop power supply is required for the terminal block itself; field instrument loop power is provided through the associated I/O card.

Warranty Assurance

Every Emerson KJ4001X1-CJ1 12P1902X032 supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including terminal continuity checks and visual inspection for mechanical integrity. In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing to minimize impact on your maintenance schedule. Our technical team is available to assist with pre-shipment compatibility confirmation, installation guidance, and post-installation commissioning queries. Orders are typically processed and shipped within 3–5 business days from our Xiamen warehouse, with express freight options available for urgent plant requirements. All units are packaged in anti-static, shock-resistant materials to ensure safe transit to your facility.
