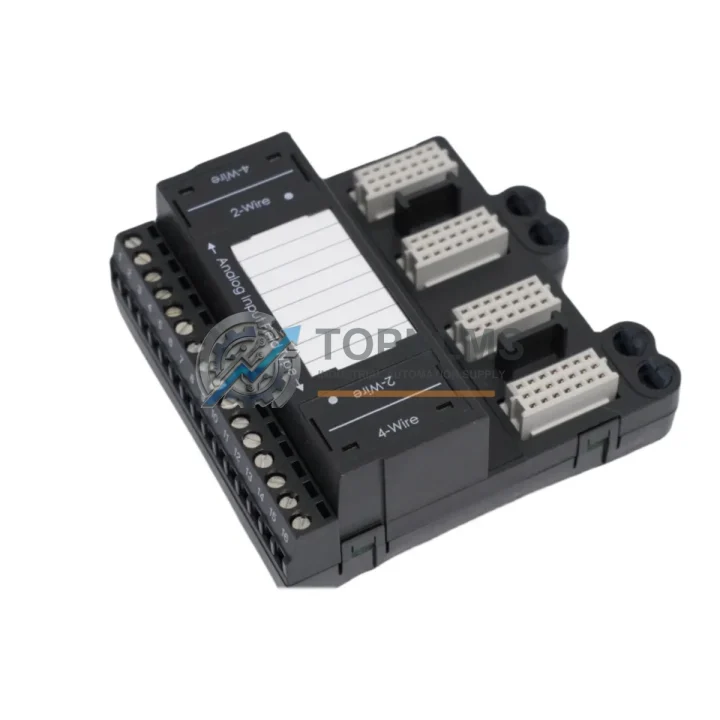

EMERSON KJ4001X1-CA1 12P0623X093 Replacement for DeltaV S-Series

Product Overview

EMERSON KJ4001X1-CA1 12P0623X093 Replacement for DeltaV S-Series: Seamless Transition & Compatibility Upgrade

When your DeltaV S-Series control system requires a terminal block replacement or modernization, the EMERSON KJ4001X1-CA1 12P0623X093 I/O Terminal Block delivers a direct, field-proven upgrade path. Whether you are retiring an aging marshalling cabinet, replacing a failed or discontinued module, or consolidating I/O infrastructure as part of a broader DCS migration, this terminal block is engineered to slot into existing S-Series I/O subsystems with minimal re-engineering. Its mechanical footprint, screw-terminal pitch, and signal routing are fully consistent with the DeltaV S-Series architecture, allowing maintenance teams to complete a swap during a planned shutdown window without rewiring field cables or modifying DCS configuration databases.

Industrial facilities running legacy DeltaV S-Series controllers — including sites originally commissioned with KJ3001X1-BA1 analog input cards or KJ2201X1-BA1 digital output modules — frequently encounter terminal block degradation caused by vibration, thermal cycling, or corrosive process environments. The KJ4001X1-CA1 12P0623X093 addresses these failure modes with robust terminal construction rated for the signal types and cable gauges standard in DeltaV marshalling. Field engineers report that the physical connector interface aligns precisely with existing KJ4001X1-BA1 predecessor assemblies, making it a reliable like-for-like substitution without the need for adapter plates or custom cable harnesses.

For sites undertaking a phased migration from older DeltaV M-Series or legacy PROVOX systems toward the S-Series platform, this terminal block is a critical bridging component. It supports the signal conditioning requirements of KJ3221X1-BA1 HART analog input cards and integrates cleanly with KJ4002X1-BA1 redundant power bus assemblies. When combined with a KJ4003X1-BA1 I/O carrier, the complete sub-assembly can be pre-wired and tested on the bench before installation, dramatically reducing live-system exposure time during cutover. This approach is particularly valuable in continuous-process industries — refining, petrochemical, power generation — where unplanned downtime carries significant operational cost.

Communication protocol compatibility is a frequent concern during DCS upgrades. The KJ4001X1-CA1 12P0623X093 operates within the DeltaV S-Series passive terminal infrastructure, meaning it is protocol-agnostic at the field wiring level. It supports both HART-enabled and conventional 4–20 mA field devices, and its terminal layout is compatible with the signal segregation requirements of KJ3002X1-BA1 discrete input modules. Sites transitioning from Foundation Fieldbus or PROFIBUS DP field networks to HART-over-4–20 mA as part of a rationalization project will find the terminal block’s wiring scheme straightforward to adapt without additional signal isolators in most cases.

Control cabinet space is a persistent constraint in brownfield retrofits. The KJ4001X1-CA1 12P0623X093 maintains the same DIN-rail mounting profile as the S-Series standard, allowing it to be installed in existing marshalling enclosures without panel modifications. When paired with KJ4005X1-BA1 cable assemblies, the complete wiring harness can be routed within the original cable tray allocation. For projects where cabinet density is critical, this eliminates the need for enclosure expansion — a significant cost and schedule saving in retrofit projects where civil and electrical works are on the critical path.

Power supply compatibility is straightforward: the terminal block operates from the standard DeltaV S-Series 24 VDC bus supplied by the controller power supply, such as the KJ4009X1-BA1 power conditioner. No additional power conditioning is required for standard process signal types. This simplifies the bill of materials for spare parts procurement and reduces the risk of power-related commissioning issues during system restart after maintenance.

From a procurement and supply chain perspective, sourcing a verified replacement for the KJ4001X1-CA1 12P0623X093 through a specialist industrial automation supplier ensures traceability and reduces the risk of counterfeit components entering safety-critical control loops. Each unit shipped from our Xiamen facility undergoes functional verification against DeltaV S-Series interface specifications before dispatch. Stock is maintained to support both emergency breakdown orders and planned maintenance schedules, with typical lead times suitable for both urgent and routine procurement cycles.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV S-Series I/O terminal block replacement rarely involves a single component in isolation. During migration planning, procurement teams typically address the broader sub-assembly to ensure system integrity. The KJ4001X1-CA1 12P0623X093 is most commonly deployed alongside the KJ4003X1-BA1 I/O carrier, which provides the mechanical backbone for the complete terminal and module assembly. Field wiring is routed via KJ4005X1-BA1 cable assemblies, which maintain the correct pin-out and shielding continuity required for HART signal integrity.

On the I/O module side, the terminal block interfaces directly with KJ3001X1-BA1 analog input modules for 4–20 mA process measurements and with KJ3221X1-BA1 HART-enabled AI cards where smart field device diagnostics are required. Digital I/O requirements are served by KJ2201X1-BA1 discrete output modules, which share the same S-Series carrier and terminal architecture. For redundant power distribution within the marshalling cabinet, the KJ4002X1-BA1 power bus assembly and KJ4009X1-BA1 power conditioner complete the sub-system bill of materials. Sites that also require field device power isolation should evaluate the addition of a signal isolator barrier appropriate for their hazardous area classification, ensuring the terminal block installation remains compliant with the site’s electrical area classification documentation.

Retrofit Guidance FAQ

Q: Will I need to rewire field cables when replacing the terminal block?
No. The KJ4001X1-CA1 12P0623X093 uses the same screw-terminal pitch and pin assignment as its predecessor. Field cables can be transferred directly without modification, provided cable labelling is verified against the as-built loop drawings before reconnection.

Q: Does the replacement require any DeltaV DCS configuration changes?
In most cases, no. The terminal block is a passive wiring interface; it does not contain firmware or addressable parameters. The DeltaV controller and I/O module configuration remains unchanged. Verify with your DCS engineer that the associated I/O module revision is compatible with the current DeltaV system software version.

Q: Is the terminal block compatible with HART field devices?
Yes. The terminal layout supports HART communication superimposed on the 4–20 mA signal loop. Ensure the associated I/O module (e.g., KJ3221X1-BA1) is HART-enabled if HART diagnostics are required.

Q: How much physical space does the replacement require?
The KJ4001X1-CA1 12P0623X093 has an identical DIN-rail footprint to the S-Series standard. No panel modifications, additional DIN rail sections, or cable tray extensions are required.

Q: Can this terminal block be used during a phased migration from M-Series to S-Series?
Yes. It is compatible with the S-Series I/O sub-system and can be pre-wired and tested offline before cutover, supporting a phased migration strategy that minimizes live-system exposure.

Q: What is the lead time for emergency orders?
Stock is maintained in Xiamen for both emergency and planned procurement. Contact us directly for current availability and expedited shipping options.

Warranty Assurance

Every EMERSON KJ4001X1-CA1 12P0623X093 I/O Terminal Block supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional check to verify mechanical integrity, terminal continuity, and dimensional conformance to DeltaV S-Series specifications. This inspection process is documented and available upon request for quality assurance purposes.

In the event of a warranty claim, our after-sales team responds within one business day to assess the reported issue. Verified warranty cases are resolved by replacement shipment or credit, at the buyer’s discretion. We maintain reserve stock specifically allocated to warranty replacements, ensuring that a warranty event does not extend your system downtime beyond the minimum necessary for logistics.

For procurement teams managing approved vendor lists or supplier qualification processes, we can provide product traceability documentation, test records, and shipping manifests. Our standard payment and delivery terms are designed to align with industrial procurement workflows, including purchase order acceptance, proforma invoice, and bank transfer settlement.
