Emerson KJ4001-CB1 12P0625X072 DeltaV I/O Terminal Block Replacement

Product Overview

Emerson KJ4001-CB1 12P0625X072 DeltaV I/O Terminal Block Replacement: Seamless Transition from Legacy Systems

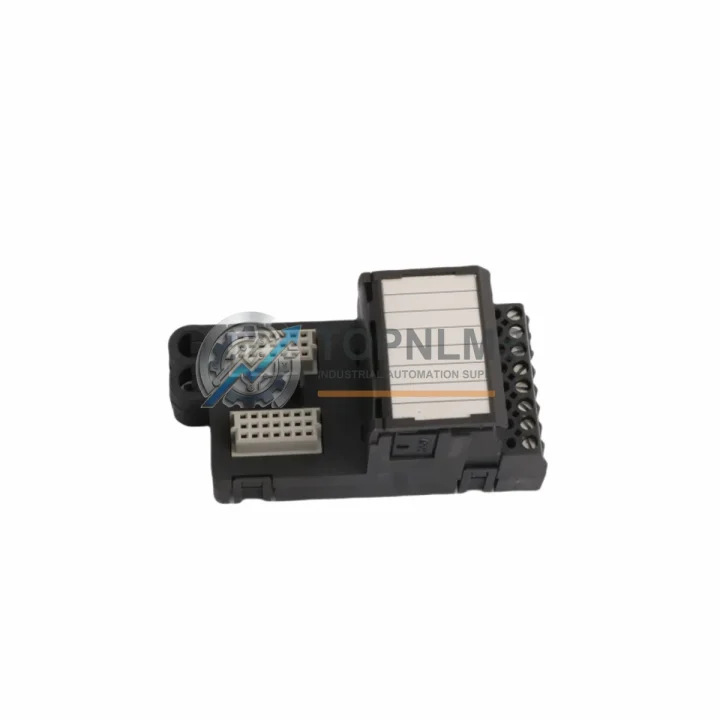

When your plant’s DeltaV distributed control system relies on aging or discontinued I/O terminal blocks, every day of deferred replacement carries real operational risk. The Emerson KJ4001-CB1 12P0625X072 I/O terminal block is a direct-fit replacement and upgrade solution engineered for engineers and procurement teams managing DeltaV Series migrations, legacy I/O module retrofits, and control cabinet modernization projects. Whether you are replacing a failed unit, building a critical spare inventory, or executing a phased system upgrade, this terminal block delivers the wiring compatibility, physical form factor, and communication interface alignment your DeltaV architecture demands.

The KJ4001-CB1 12P0625X072 is designed to interface directly with Emerson DeltaV Series I/O cards, maintaining the same field-side terminal pitch, screw-clamp wiring positions, and signal routing as the original factory configuration. Field wiring from legacy installations — including 4–20 mA analog loops, discrete 24 VDC I/O, and thermocouple inputs — can be reconnected without re-labeling or re-routing, dramatically reducing the risk of wiring errors during a live system cutover. For sites running DeltaV S-series or M-series controllers with KJ3001, KJ3002, or KJ3221 I/O cards, this terminal block preserves the existing marshalling cabinet layout and avoids costly re-engineering of junction boxes or field cable schedules.

Migration projects frequently involve replacing not just the terminal block but the entire I/O sub-assembly. In these scenarios, the KJ4001-CB1 12P0625X072 is commonly deployed alongside the KJ3001X1-BA1 12P1522X032 analog input card and the KJ3221X1-BA1 discrete I/O card, both of which share the same DIN-rail mounting footprint and backplane connector standard. When the project scope extends to controller-level upgrades, the terminal block’s compatibility with the KJ2003X1-BA1 DeltaV controller carrier ensures that the entire I/O train — from field device to controller backplane — can be refreshed without introducing new cable management challenges.

For sites transitioning from older Emerson PROVOX or RS3 legacy platforms to DeltaV, the KJ4001-CB1 12P0625X072 serves as a critical bridging component. The terminal block’s standard IEC 60947-compliant screw terminals accept the same wire gauges (0.5 mm² to 2.5 mm²) used in PROVOX marshalling panels, allowing field cables to be landed directly without ferrule changes or conductor re-sizing. This compatibility is particularly valuable when the migration schedule requires running old and new systems in parallel during a hot cutover window, where minimizing field wiring disturbance is a primary constraint.

Power supply compatibility is another key consideration in DeltaV I/O migration projects. The KJ4001-CB1 12P0625X072 operates within the standard DeltaV 24 VDC bus power architecture, making it fully compatible with existing KJ1501X1-BG2 power supplies and redundant power distribution modules already installed in the control cabinet. There is no need to upsize the cabinet power budget or add supplementary DC/DC converters when swapping out terminal blocks on a like-for-like basis.

Communication protocol continuity is maintained throughout the replacement process. The KJ4001-CB1 12P0625X072 does not require firmware updates or DeltaV database re-configuration when used as a direct replacement. The DeltaV system recognizes the module through the existing I/O card assignment, and the field device tag database remains intact. For sites using FOUNDATION Fieldbus or HART-enabled I/O cards such as the KJ3222X1-BA1 HART analog input card, the terminal block’s passive signal path ensures that HART communication between the field device and the DeltaV Asset Management Solution (AMS) is uninterrupted after replacement.

Physical installation is straightforward. The KJ4001-CB1 12P0625X072 mounts directly onto the standard Emerson DeltaV I/O card carrier using the factory locking tab mechanism, requiring no tools beyond a standard flat-blade screwdriver for terminal wiring. The module’s compact 80-gram form factor fits within the original cabinet slot without requiring panel modifications, making it suitable for both in-situ replacement during a planned maintenance window and emergency swap-out during an unplanned outage. For control rooms with limited cabinet depth — a common constraint in older petrochemical and power generation facilities — the shallow profile of the KJ4001-CB1 12P0625X072 is a practical advantage over third-party alternatives that may require additional clearance.

Procurement teams managing spare parts programs for DeltaV installations will find the KJ4001-CB1 12P0625X072 a reliable stocking item. As Emerson progressively transitions its DeltaV hardware catalog toward the DeltaV v14 and v15 platform, terminal blocks for earlier I/O generations are increasingly difficult to source through standard distribution channels. TOPNLMS maintains verified stock of the KJ4001-CB1 12P0625X072 and related DeltaV I/O components, including the KJ4001-CB1 12P0625X082 variant and the KJ4002X1-BA1 I/O terminal block for high-density applications, ensuring that your maintenance team can access critical spares without lead-time risk.

Each unit shipped by TOPNLMS undergoes pre-shipment functional verification, including terminal continuity testing and visual inspection for connector pin integrity. Units are packaged in anti-static ESD bags with foam cushioning to prevent transit damage to the terminal block’s precision connector interface. Standard shipping from our Xiamen warehouse reaches most destinations in mainland China within 2–3 business days, with international express options available for urgent requirements in Southeast Asia, the Middle East, and Europe.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV I/O migration rarely involves a single component. The KJ4001-CB1 12P0625X072 is most commonly deployed as part of a broader I/O sub-assembly refresh. During a typical upgrade project, engineers will simultaneously address the KJ3001X1-BA1 12P1522X032 analog input card seated above the terminal block, the KJ3221X1-BA1 discrete I/O card for digital field devices, and the KJ2003X1-BA1 controller carrier that anchors the entire I/O train to the DeltaV backplane. For HART-enabled loops, the KJ3222X1-BA1 HART analog input card works in tandem with this terminal block to maintain AMS device diagnostics without any re-wiring of the field instrument loop.

On the power distribution side, the KJ1501X1-BG2 24 VDC power supply module is the standard companion for DeltaV I/O cabinets and requires no modification when the KJ4001-CB1 12P0625X072 is installed as a replacement. For projects that also involve upgrading the marshalling layer, the KJ4002X1-BA1 high-density terminal block variant can be used in adjacent slots to increase field termination capacity without expanding the cabinet footprint. Where signal isolation is required between legacy field devices and the new DeltaV I/O cards — particularly in older petrochemical plants with high common-mode noise environments — a DIN-rail mounted signal isolator or Zener barrier assembly can be inserted between the field cable and the KJ4001-CB1 12P0625X072 terminal block without affecting the module’s mechanical installation. For sites that also require HMI modernization as part of the same project scope, the DeltaV Operate workstation and associated KJ1701X1-BA1 I/O interface module provide a natural upgrade path that complements the terminal block replacement at the field I/O level.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the terminal block?
Yes. The KJ4001-CB1 12P0625X072 uses the same IEC 60947 screw-clamp terminal pitch as the original DeltaV I/O terminal blocks. Field cables can be transferred directly from the old terminal block to the new unit without re-labeling, re-routing, or changing wire ferrules, provided the wire gauge is within the 0.5 mm² to 2.5 mm² range.

Q: Do I need to modify the DeltaV control system database after replacement?
No. When used as a like-for-like replacement on the same I/O card slot, the DeltaV system does not require a database download or tag re-assignment. The I/O card recognizes the terminal block through the physical connector interface, and all existing module parameters, tag assignments, and alarm limits remain active.

Q: Is the terminal block compatible with HART field devices?
Yes. The KJ4001-CB1 12P0625X072 has a passive signal path that is fully transparent to HART communication. When paired with a HART-enabled I/O card such as the KJ3222X1-BA1, HART commands and device diagnostics pass through the terminal block without attenuation or interference.

Q: What is the installation space requirement?
The KJ4001-CB1 12P0625X072 occupies a single standard DeltaV I/O card slot on the DIN-rail carrier. No additional panel space is required beyond the existing slot footprint. The module’s 80-gram weight does not affect the mechanical load rating of the carrier assembly.

Q: Can this terminal block be used during a parallel-run cutover?
Yes. Because the terminal block is a passive component with no firmware or configuration dependency, it can be pre-wired and tested on the bench before installation. During a parallel-run cutover, the new terminal block can be installed in an adjacent slot and field wiring transferred one circuit at a time, minimizing the live exposure window.

Q: What communication protocols are supported?
The KJ4001-CB1 12P0625X072 is a passive terminal block and does not implement any active communication protocol. It supports all signal types routed through the connected DeltaV I/O card, including 4–20 mA analog, 24 VDC discrete, thermocouple, RTD, and HART superimposed signals.

Warranty Assurance

Every KJ4001-CB1 12P0625X072 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes terminal continuity verification, connector pin integrity check, and visual inspection for mechanical damage. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day via email at [email protected] or by phone at +86 18359293191. For urgent plant maintenance situations, we offer expedited replacement shipping to minimize your system downtime.

Our procurement guarantee covers authenticity: all units are sourced from verified supply channels and are not refurbished, re-labeled, or counterfeit. TOPNLMS does not sell grey-market or unverified stock. Each unit is traceable to its supply source, and documentation can be provided upon request for quality audit purposes.

For bulk orders, long-term supply agreements, or spare parts program consultations, please contact our industrial automation team directly. We support procurement teams managing multi-site DeltaV installations with consolidated invoicing, consignment stock arrangements, and scheduled delivery programs.
