Emerson KJ3242X1-FA1 Original Industrial Spare DeltaV Compatible

Product Overview

Emerson KJ3242X1-FA1 Original Industrial Spare DeltaV Compatible: System Stability & Maintenance Value

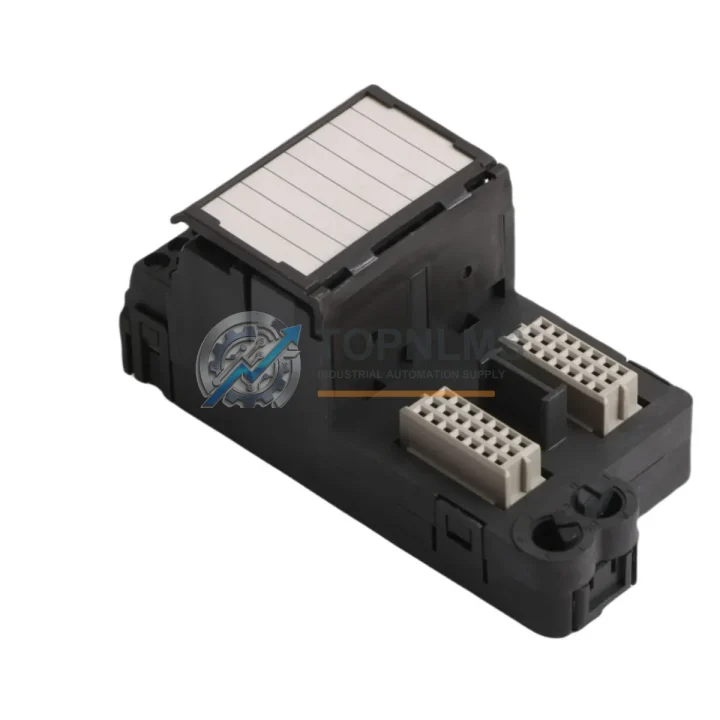

The Emerson KJ3242X1-FA1 (alternate part number 12P2575X032) is an original EMERSON DeltaV H1 Fieldbus Terminal Block engineered for FOUNDATION Fieldbus H1 segment wiring within DeltaV distributed control systems. In process industries — refining, petrochemical, power generation, pharmaceuticals, and pulp & paper — the H1 fieldbus segment is the backbone of field device communication. A failed or degraded terminal block can isolate an entire fieldbus segment, triggering unplanned shutdowns and costly process interruptions. Stocking the KJ3242X1-FA1 as a certified spare is one of the most cost-effective decisions a maintenance team can make.

This unit ships tested and verified against EMERSON factory specifications. Every KJ3242X1-FA1 dispatched from TOPNLMS undergoes pre-shipment functional inspection, and is covered by a 12-month replacement warranty from date of delivery.

Critical Technical Specs

Preventive Maintenance Strategy

Fieldbus terminal block failures rarely occur in isolation. The H1 segment is a shared communication bus — when the KJ3242X1-FA1 terminal block degrades, every field device on that segment (control valves, transmitters, positioners) loses its communication path to the DeltaV controller. Experienced maintenance engineers treat a terminal block replacement as a trigger for a broader segment health audit.

During a scheduled outage or corrective maintenance window involving the KJ3242X1-FA1, it is best practice to simultaneously inspect the KJ3242X1-BA1 H1 Fieldbus Interface Card, which drives the segment and is the upstream partner to this terminal block. A worn or intermittently faulting interface card will cause recurring segment dropouts even after a terminal block swap. Alongside this, verify the condition of the KJ2201X1-BA1 DeltaV Power Supply Module feeding the I/O carrier — an under-voltage condition on the carrier rail is a common root cause of fieldbus communication instability that is frequently misdiagnosed as a terminal block fault.

Fieldbus segment integrity also depends on correct termination resistance. Inspect and, if necessary, replace the H1 segment terminator assemblies at both ends of the fieldbus cable run. Improper termination causes signal reflections that degrade communication quality across all devices on the segment. While the cabinet is open, check the KJ3204X1-BA1 DeltaV Analog Input Module and any associated KJ3221X1-BA1 I/O Terminal Blocks in the same marshalling cabinet — these components share the same environmental stresses and often exhibit similar aging patterns.

For plants running legacy DeltaV S-series hardware, a proactive spare strategy should also include the KJ3242X1-EA1 H1 Fieldbus Card (the next-generation replacement for older H1 interface cards), as well as KJ1501X1-BA2 DeltaV Controller Modules for any controllers managing critical process units. On the wiring side, inspect shielded fieldbus cable assemblies and junction box terminal strips for corrosion, loose terminations, or moisture ingress — particularly in outdoor or high-humidity installations. Finally, if your DeltaV system includes remote I/O via CHARM I/O modules (CIOC), schedule a concurrent inspection of CHARM baseplates and their associated terminal blocks, as these share similar mechanical wear characteristics with the KJ3242X1-FA1.

Stocking one or two units of the KJ3242X1-FA1 alongside these complementary components eliminates the most common single points of failure in a DeltaV H1 fieldbus cabinet, reducing mean time to repair (MTTR) from days to hours.

Strategic Replacement Solutions

The KJ3242X1-FA1 is a direct, plug-compatible replacement for earlier EMERSON DeltaV H1 terminal block variants used in first- and second-generation DeltaV installations. Plants that originally commissioned DeltaV systems in the late 1990s and 2000s are now entering the phase where original terminal blocks — subject to years of thermal cycling, vibration, and contact oxidation — begin to exhibit intermittent connectivity faults. These faults are notoriously difficult to diagnose remotely and often manifest as sporadic fieldbus segment resets or device communication errors in the DeltaV Event Chronicle.

Replacing the KJ3242X1-FA1 requires no firmware changes, no DeltaV database modifications, and no reconfiguration of field devices. The swap is mechanical and electrical only, making it one of the fastest corrective actions available to a DeltaV maintenance team. In most installations, a trained technician can complete the replacement within a single shift, restoring full segment communication without a controller restart.

For plants pursuing a system life extension strategy — keeping DeltaV hardware operational beyond the original design life — maintaining a certified stock of original EMERSON spare parts like the KJ3242X1-FA1 is far more cost-effective than a full I/O cabinet upgrade. Original parts preserve system compatibility, avoid the engineering effort of hardware migration projects, and allow maintenance teams to respond to failures on their own schedule rather than being forced into emergency procurement at premium prices.

TOPNLMS sources KJ3242X1-FA1 units through verified industrial supply channels. Each unit is inspected prior to dispatch. We support global shipping with export documentation, and our technical team can assist with compatibility verification against your specific DeltaV system revision.

Support FAQ

Q1: Is the KJ3242X1-FA1 compatible with all DeltaV controller generations?
The KJ3242X1-FA1 is designed for use with the KJ3242 H1 Fieldbus Card family within DeltaV S-series and M-series I/O subsystems. It is compatible with DeltaV system versions 9.x through 14.x and later. If you are running an earlier DeltaV version or a non-standard hardware configuration, contact us with your system revision details and we will confirm compatibility before shipment.

Q2: What pre-shipment testing does TOPNLMS perform on this unit?
Every KJ3242X1-FA1 is visually inspected for physical damage, connector integrity, and labeling accuracy. Electrical continuity is verified across all terminal positions. Units sourced as new surplus are additionally checked against EMERSON part number markings and date codes. A test report summary is available upon request for quality-critical procurement.

Q3: How should I manage spare parts inventory for DeltaV H1 fieldbus components?
Industry best practice for process plants with 10 or more H1 fieldbus segments is to maintain a minimum of two KJ3242X1-FA1 terminal blocks in on-site inventory. For critical process units (reactors, compressors, main fractionators), consider stocking one spare per segment. Pair this with at least one spare H1 interface card and one spare power supply module per I/O cabinet to cover the most common failure modes without waiting for emergency procurement.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS with your order number, a description of the fault, and any available diagnostic data from your DeltaV system. We will arrange return shipping and dispatch a replacement unit upon verification.
