Emerson KJ3201X1-EA1 Original Industrial Spare DeltaV Compatible

Product Overview

Emerson KJ3201X1-EA1 Original Industrial Spare DeltaV Compatible: System Stability and Industrial Spare Maintenance Value

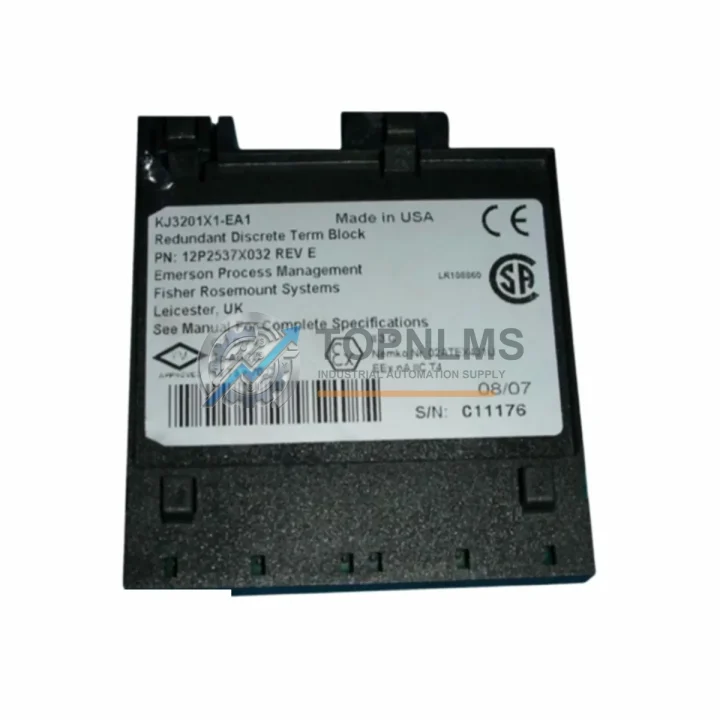

The Emerson KJ3201X1-EA1 is an original discrete terminal block designed for use within the Emerson DeltaV DCS (Distributed Control System) platform. As a critical I/O termination interface, this module bridges field wiring to the DeltaV controller subsystem, enabling reliable discrete signal acquisition across industrial process environments. Whether you are managing a continuous production line, a batch processing facility, or a legacy control system undergoing life extension, maintaining a verified stock of the KJ3201X1-EA1 is a foundational element of any sound spare parts strategy.

In modern industrial facilities, unplanned downtime caused by terminal block failure or I/O signal loss can cascade rapidly into production losses, safety incidents, and costly emergency procurement. The KJ3201X1-EA1 eliminates that risk by providing a direct, plug-compatible replacement that preserves the original wiring topology, signal integrity, and DeltaV system configuration — no re-engineering, no recalibration, no extended commissioning.

Each unit supplied by TOPNLMS is sourced from verified original channels, inspected prior to dispatch, and covered by a 12-month quality warranty. We support maintenance teams, procurement engineers, and MRO managers who require fast, reliable access to genuine DeltaV spare components.

Critical Technical Specs Table

Preventive Maintenance Strategy

A terminal block failure in a DeltaV I/O subsystem rarely occurs in isolation. Field experience consistently shows that when a KJ3201X1-EA1 discrete terminal block reaches end of service life — whether due to terminal corrosion, insulation breakdown, or mechanical fatigue from repeated field wiring operations — adjacent components in the same control cabinet are often approaching similar wear thresholds.

During any scheduled inspection or corrective maintenance event involving the KJ3201X1-EA1, maintenance engineers should simultaneously evaluate the condition of the KJ3202X1-BA1 analog terminal block, which shares the same carrier architecture and is subject to identical environmental stressors. If the discrete I/O card paired with this terminal block — typically a KJ3221X1-BA1 DeltaV discrete input card — shows any sign of LED fault indication or intermittent channel dropout, it should be flagged for replacement in the same maintenance window to avoid a second unplanned outage.

Power integrity is equally critical. The KJ1501X1-BF2 DeltaV power supply module feeding the I/O subsystem should be load-tested during the same inspection cycle. A degraded power supply operating near its rated output can cause marginal discrete signal behavior that mimics terminal block faults, leading to misdiagnosis and wasted replacement cycles. Similarly, the KJ4001X1-BA1 DeltaV controller module should be checked for firmware currency and diagnostic alarm history before concluding that a terminal block is the root cause of any signal anomaly.

Field wiring connected to the KJ3201X1-EA1 should be inspected for insulation integrity, particularly in high-vibration or high-humidity environments. Shielded instrumentation cable terminations should be verified for proper grounding continuity. If the control cabinet houses a KJ3224X1-BA1 DeltaV discrete output card, its output channel status should be cross-referenced against the terminal block wiring diagram to confirm no cross-wiring degradation has occurred over time.

For facilities running extended DeltaV system lifecycles, it is advisable to maintain a minimum buffer stock of the KJ3201X1-EA1 alongside related components such as the KJ3222X1-BA1 discrete I/O module, KJ3001X1-BA1 DeltaV I/O carrier, and KJ3002X1-BA1 redundant I/O carrier. Procurement teams should also consider stocking the KJ3203X1-BA1 HART analog terminal block if the same control room hosts HART-enabled field instruments, as cross-module compatibility within the DeltaV I/O family allows for flexible spare pooling across multiple cabinet configurations.

Communication infrastructure supporting the DeltaV network — including DeltaV CIOC (Controller I/O Card) modules and associated Ethernet switches — should be reviewed for firmware and hardware health during the same maintenance campaign. A holistic cabinet inspection that addresses terminal blocks, I/O cards, power supplies, controllers, and communication modules in a single planned outage window is significantly more cost-effective than reactive single-component replacements.

Strategic Replacement Solutions

The KJ3201X1-EA1 is a direct form-fit-function replacement for earlier discrete terminal block variants used in legacy DeltaV installations. Facilities that originally commissioned DeltaV systems in the early 2000s may be operating with terminal blocks that have accumulated over a decade of field service. These units are statistically overdue for proactive replacement, even in the absence of visible fault symptoms.

Replacing the KJ3201X1-EA1 does not require DeltaV system reconfiguration, controller download, or I/O channel reassignment. The plug-compatible design preserves all existing field wiring connections and DeltaV module addressing, enabling a maintenance technician to complete a hot-swap replacement during a planned shutdown window in under 30 minutes — dramatically reducing the mean time to repair (MTTR) compared to sourcing an emergency replacement from the OEM channel.

For facilities transitioning from older DeltaV hardware generations, the KJ3201X1-EA1 also serves as a validated bridge component that maintains backward compatibility with legacy field devices while supporting integration into upgraded DeltaV S-series and DeltaV Live environments. This makes it a strategically valuable spare for sites managing phased DCS modernization programs where full system replacement is deferred over multiple budget cycles.

TOPNLMS maintains ready stock of the KJ3201X1-EA1 to support emergency procurement timelines. All units are tested for electrical continuity and mechanical integrity prior to shipment. Export documentation, including commercial invoices and packing lists, is prepared to support international customs clearance for global maintenance operations.

Support FAQ

Q1: What is the expected service life of the KJ3201X1-EA1, and when should I plan for replacement?
Emerson DeltaV terminal blocks are designed for extended industrial service, but field experience suggests a proactive replacement interval of 10–15 years in standard environments, or sooner in high-humidity, high-vibration, or chemically aggressive installations. If your facility’s DeltaV system was commissioned before 2015, a terminal block audit is recommended as part of your next scheduled maintenance cycle.

Q2: Is the KJ3201X1-EA1 compatible with all DeltaV controller generations?
The KJ3201X1-EA1 is compatible with DeltaV MD, SD, and MQ series controllers and is designed to interface with the KJ3201 and KJ3202 discrete I/O card families. For DeltaV S-series or newer hardware generations, please confirm the I/O card pairing with your system documentation or contact our technical team at [email protected] before ordering.

Q3: How does TOPNLMS verify the authenticity and condition of the KJ3201X1-EA1 before shipment?
Each KJ3201X1-EA1 unit undergoes a pre-shipment inspection covering electrical continuity, terminal integrity, connector condition, and label verification. Units are sourced from original supply channels and are not refurbished or remanufactured. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the lead time, and can TOPNLMS support emergency procurement requests?
The KJ3201X1-EA1 is maintained in ready stock and typically ships within 1–3 business days of order confirmation. For emergency procurement requests requiring same-day or next-day dispatch, please contact us directly at [email protected] or +86 18359293191. We support expedited shipping via DHL, FedEx, and UPS for international maintenance operations.
