Emerson KJ2201X1-JA1 12P3323X022 DeltaV SIS Upgrade Solution

Product Overview

Emerson KJ2201X1-JA1 12P3323X022 DeltaV SIS Upgrade Solution: Seamless Transition from Legacy Safety Systems

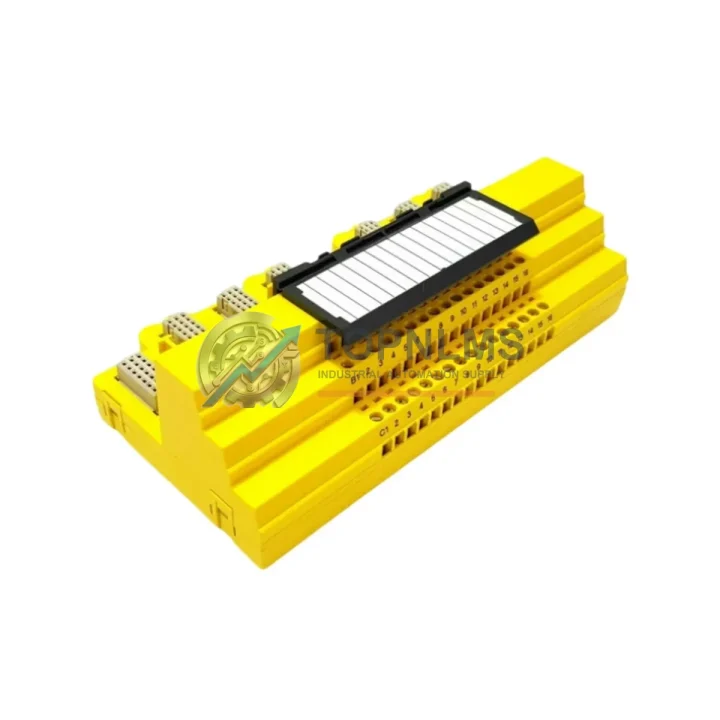

The Emerson KJ2201X1-JA1 (12P3323X022) is a Safety Logic Solver (SLS) Terminal Block designed for use within the Emerson DeltaV SIS (Safety Instrumented System) platform. As aging DeltaV SIS installations approach end-of-life or face discontinued spare-part availability, plant engineers and procurement teams are increasingly seeking verified replacement and upgrade pathways that minimize engineering rework, reduce unplanned downtime, and preserve existing safety architecture investments.

This product page is specifically structured to support migration, replacement, and retrofit projects involving the KJ2201X1-JA1 terminal block. Whether your facility is transitioning from an older DeltaV SIS revision, replacing a failed or obsolete SLS module, or consolidating spare-part inventory ahead of a planned turnaround, the KJ2201X1-JA1 12P3323X022 is a direct-fit solution engineered to slot into existing DeltaV SIS controller chassis and marshalling cabinets without requiring panel redesign or rewiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV SIS migration or spare-part replacement rarely involves a single component in isolation. In practice, the KJ2201X1-JA1 terminal block operates as part of a tightly integrated safety architecture. During retrofit and upgrade projects, engineers commonly address several adjacent components in the same work order to ensure system-wide compatibility and reduce future maintenance windows.

When replacing the KJ2201X1-JA1, it is common to simultaneously audit the associated DeltaV SIS Logic Solver module (such as the KJ2201X1 series SLS controller card) seated in the same carrier, since terminal block wear and logic solver degradation often occur in parallel over long service cycles. The DeltaV SIS carrier or controller chassis itself — which houses both the logic solver and the terminal block — should be inspected for backplane connector integrity, particularly in installations exceeding ten years of continuous operation.

On the field-wiring side, projects involving the KJ2201X1-JA1 frequently include replacement of DeltaV SIS I/O modules connected to the same safety loop, such as discrete input (DI) or discrete output (DO) cards that interface with field instruments including solenoid valves, pressure switches, and emergency shutdown (ESD) actuators. Ensuring that the field junction box terminal strips and associated signal cable shields are properly grounded and labeled during the terminal block swap is a standard commissioning step that prevents nuisance trips post-replacement.

For facilities running redundant DeltaV SIS architectures, the replacement scope typically extends to the redundant SLS terminal block pair, ensuring that both the primary and secondary safety channels are restored to matched hardware revisions. Mismatched revision levels between redundant terminal blocks can trigger diagnostic alarms within the DeltaV SIS health monitoring subsystem.

Communication integrity between the DeltaV SIS subsystem and the main DeltaV DCS controller is maintained through the DeltaV SIS interface module (sometimes referred to as the SIS interface card or gateway module), which should be verified for firmware compatibility whenever terminal block hardware is updated. In larger installations, the DeltaV workstation and DeltaV Explorer configuration software may require a module re-download or safety application re-validation following hardware replacement, per IEC 61511 management-of-change procedures.

Procurement teams sourcing the KJ2201X1-JA1 as a long-lead spare often bundle it with DeltaV SIS power supply modules and DeltaV SIS system power conditioners to build a comprehensive critical-spare inventory that covers the most failure-prone components across a single safety loop or safety instrumented function (SIF).

Retrofit Guidance FAQ

Q: Does replacing the KJ2201X1-JA1 terminal block require rewiring field cables?
A: No. The KJ2201X1-JA1 12P3323X022 uses the same field-side terminal layout as the original unit. Field cables can be transferred directly using the existing wiring schedule, eliminating the need for re-termination or loop re-testing from scratch. Always verify wire labeling against the as-built P&ID before disconnecting.

Q: Is the KJ2201X1-JA1 compatible with both SIL 2 and SIL 3 safety loops?
A: Yes. The terminal block supports the full SIL capability of the DeltaV SIS platform. The actual SIL rating of the safety instrumented function depends on the complete loop architecture, including the logic solver, field instruments, and final elements — not the terminal block alone.

Q: Will the DeltaV SIS system require a safety application download after replacing the terminal block?
A: In most cases, a hot-swap or cold-swap of the terminal block does not require a full safety application re-download, provided the replacement unit is the same part number and revision. However, your site’s management-of-change (MOC) procedure and the DeltaV SIS commissioning checklist should be followed to confirm. Consult your DeltaV SIS system documentation for revision-specific guidance.

Q: Can this terminal block be used in a non-redundant DeltaV SIS configuration?
A: Yes. The KJ2201X1-JA1 is compatible with both simplex and redundant DeltaV SIS controller configurations. In simplex installations, only one terminal block per logic solver slot is required.

Q: What physical space does the KJ2201X1-JA1 occupy in the control cabinet?
A: The terminal block mounts directly to the DeltaV SIS carrier and does not require additional DIN rail space or panel cutouts. Cabinet layout and cable management remain unchanged from the original installation.

Warranty Assurance

Every Emerson KJ2201X1-JA1 12P3323X022 shipped from TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification and visual inspection to confirm physical integrity, connector condition, and part number accuracy against the order specification.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on your maintenance schedule. Our after-sales response team is reachable via email and phone to coordinate return authorization, technical clarification, and expedited re-shipment where required.

For procurement teams managing critical-spare inventories or turnaround project BOMs, we offer pre-shipment inspection documentation and packing records upon request. Stock availability is confirmed at time of order, and lead times are communicated transparently before purchase commitment.

We ship globally from Xiamen, China, with export documentation, commercial invoice, and packing list provided as standard. Expedited freight options are available for urgent replacement requirements.
