EMERSON KC4011X1-BC1 Ruggedized Terminal Block Module

Product Overview

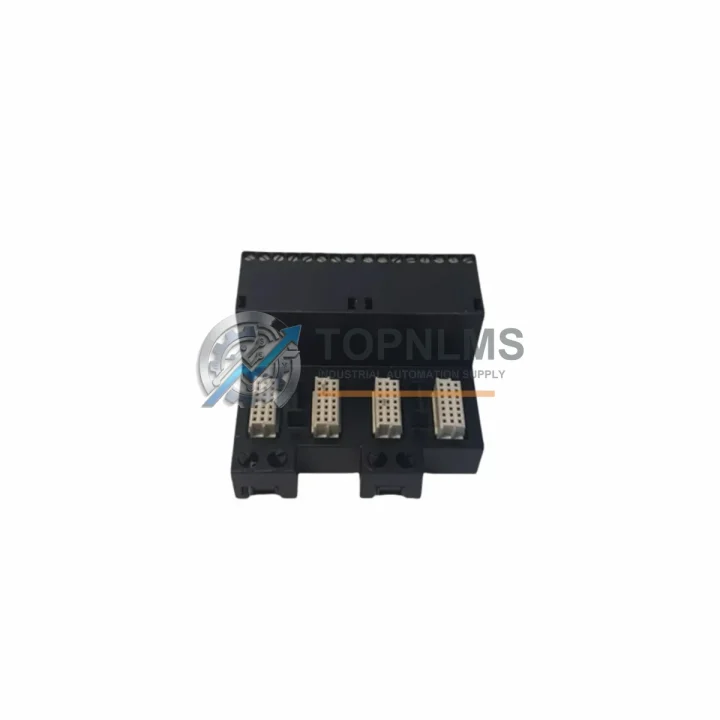

EMERSON KC4011X1-BC1 12P6745X012 Ruggedized Terminal Block Module: Industrial Resilience for Harsh Environments

The EMERSON KC4011X1-BC1 12P6745X012 is a DeltaV-series terminal block module engineered for continuous, fault-free operation in the most demanding industrial environments. Designed to meet the rigorous requirements of process automation and safety-critical control systems, this module delivers exceptional signal integrity, mechanical robustness, and long-term reliability — whether deployed in a climate-controlled control room or exposed to the extremes of an offshore platform, underground mine, or high-temperature smelting facility.

Built on EMERSON’s proven DeltaV distributed control system (DCS) architecture, the KC4011X1-BC1 12P6745X012 serves as a critical field-wiring interface between field instruments and the DeltaV I/O subsystem. Its ruggedized terminal block design ensures stable, low-resistance connections even under continuous mechanical vibration, thermal cycling, and high-humidity conditions — conditions that routinely degrade lesser components and introduce costly process interruptions.

In heavy industrial settings such as oil and gas refineries, petrochemical plants, and power generation facilities, terminal block modules are among the most frequently replaced components in a control cabinet. The KC4011X1-BC1 12P6745X012 is stocked and tested by TOPNLMS specifically to support rapid spare-parts replacement, minimizing unplanned downtime and keeping production lines running without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The KC4011X1-BC1 12P6745X012 does not operate in isolation — it is a precision component within a broader DeltaV control architecture. In a typical DeltaV-based control cabinet, this terminal block module interfaces directly with DeltaV I/O cards such as the KJ3221X1-BA1 analog input card and the KJ2201X1-EA1 digital output card, providing the physical wiring termination layer that keeps field signals clean and correctly routed to the controller.

Upstream, the DeltaV MD Plus Controller (MD-PLUS) or the DeltaV M5Plus Controller manages process logic and communicates with field devices via the I/O subsystem. The terminal block module ensures that every 4–20 mA analog signal, discrete contact, or HART communication channel arrives at the controller without noise corruption or wiring error. In safety-instrumented systems, this reliability is non-negotiable — a loose or corroded terminal connection can trigger a spurious trip or, worse, mask a genuine process hazard.

For power distribution within the control cabinet, EMERSON DeltaV Power Supplies (KJ4001X1-BA1) provide regulated 24 VDC to the I/O bus, and the terminal block module’s stable contact resistance ensures that voltage drops across field wiring remain within specification. In high-vibration environments — common in compressor stations, pump skids, and rotating machinery applications — the KC4011X1-BC1 12P6745X012’s robust terminal clamping mechanism prevents the micro-arcing and intermittent faults that plague standard terminal blocks.

When integrated with EMERSON DeltaV Safety Logic Solvers (SLS) and DeltaV safety I/O modules, the terminal block module supports SIL 2 and SIL 3 safety loop architectures by providing reliable, traceable field wiring termination. Paired with EMERSON’s CHARM I/O technology or traditional marshalling panels, it simplifies cabinet layout and reduces the risk of wiring errors during commissioning and maintenance. Communication modules such as the DeltaV PROFIBUS interface card and the Foundation Fieldbus H1 card also rely on correctly terminated field wiring — a function this module performs with consistent precision across thousands of operating hours.

Application in Critical Infrastructure

In upstream oil and gas operations, the KC4011X1-BC1 12P6745X012 is deployed in wellhead control panels, separator skids, and gas compression stations where ambient temperatures fluctuate widely and electromagnetic interference from variable-frequency drives (VFDs) and high-voltage switchgear is a constant challenge. The module’s shielded signal paths and robust terminal design maintain measurement accuracy for pressure transmitters, temperature sensors, and flow meters — instruments whose readings directly govern safety shutdown systems and production optimization algorithms.

In coal and metal mining operations, control systems must endure continuous mechanical shock, coal dust ingress, and high-humidity underground environments. The KC4011X1-BC1 12P6745X012, installed within IP54 or IP65-rated control enclosures, provides the reliable field-wiring interface needed to keep conveyor drives, ventilation fans, and hoisting equipment under precise DeltaV supervisory control. Unplanned downtime in these environments carries enormous safety and financial consequences — which is why procurement teams increasingly specify genuine EMERSON spare parts with documented test records and warranty coverage.

Power generation facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — rely on DeltaV-based distributed control systems for boiler management, turbine control, and emissions monitoring. The terminal block module’s ability to maintain stable signal termination across wide temperature ranges and under the electromagnetic noise generated by large generators and transformers makes it an essential component in these high-stakes environments. Water treatment and wastewater facilities similarly depend on reliable I/O termination for dosing pump control, level measurement, and SCADA integration — applications where a single wiring fault can compromise public health compliance.
