Emerson 12P4629X082 Original Industrial Spare DeltaV CHARM Compatible: System Stability & Industrial Spare Parts Maintenance Value

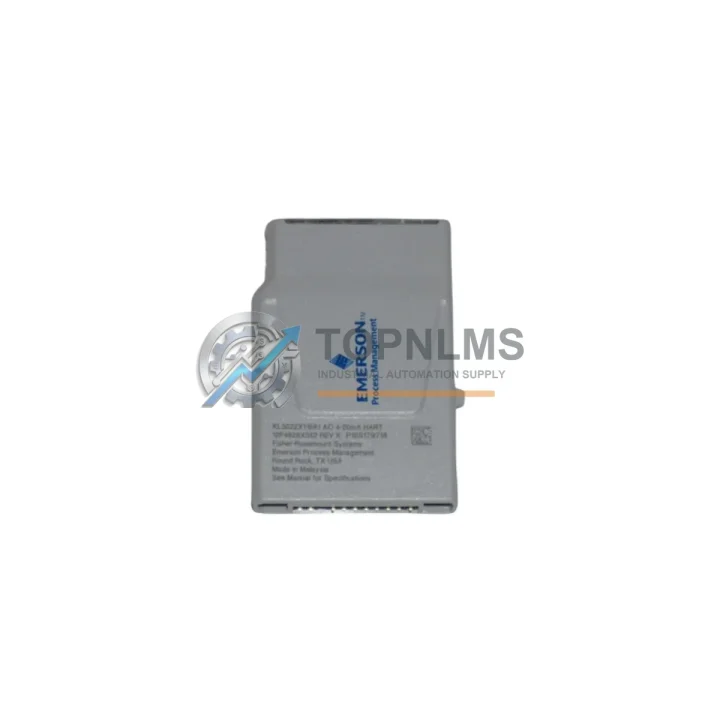

The Emerson 12P4629X082 is a genuine DeltaV CHARM (Characterization Module) terminal block designed for high-density I/O wiring interfaces in process automation and distributed control systems. As a critical field-wiring component within the DeltaV CHARM I/O architecture, this terminal block provides the physical connection layer between field instruments and CHARM I/O modules, ensuring signal integrity, reliable loop continuity, and long-term system stability in demanding industrial environments including oil & gas, chemical processing, power generation, and pharmaceutical manufacturing.

For maintenance engineers and procurement teams managing aging DeltaV systems, sourcing a verified original 12P4629X082 is essential. Counterfeit or incompatible terminal blocks introduce wiring faults, signal noise, and loop failures that can cascade into unplanned shutdowns. TOPNLMS supplies factory-tested, original Emerson components with full traceability, enabling rapid like-for-like replacement without system reconfiguration or re-commissioning delays.

Critical Technical Specs Table

Preventive Maintenance Strategy

In DeltaV CHARM-based control cabinets, the terminal block is the most frequently accessed component during field wiring changes, loop checks, and instrument replacements. A proactive maintenance strategy for any DeltaV CHARM I/O node should treat the 12P4629X082 terminal block as a consumable spare — one that should be stocked alongside the components it interfaces with.

During scheduled cabinet inspections, maintenance teams should simultaneously verify the condition of the CHARM I/O modules (CIOC) that plug into these terminal blocks, as worn or corroded contacts on either side degrade signal quality. The DeltaV CHARM carrier assemblies that house multiple CHARM modules should also be inspected for mechanical integrity and proper seating. If the terminal block shows signs of heat discoloration or terminal loosening, it is best practice to also inspect the field wiring cables and shielded twisted-pair signal cables connected to it, as thermal stress typically affects both simultaneously.

For AI and AO loops, consider stocking Emerson DeltaV CHARM AI modules (such as the CHARMS AI 4-20mA type) alongside terminal blocks, since a loop fault often requires replacing both the termination hardware and the characterization module. Similarly, for digital I/O circuits, DeltaV CHARM DI and DO modules are logical co-spares. In cabinets running mixed signal types, a small buffer stock of CHARM power supplies and CIOC power conditioners is advisable, as power anomalies are a leading cause of terminal block and module degradation.

Facilities running legacy DeltaV M-series alongside newer S-series hardware should also maintain spares for DeltaV I/O subsystem cards (MD Plus, MD Controller) and their associated terminal blocks and marshalling panels, since a single cabinet may contain both generations. For sites with intrinsically safe loops, Zener barriers and galvanic isolators installed in the same marshalling cabinet should be part of the same inspection cycle — their failure modes often mimic terminal block faults, making simultaneous inspection efficient.

Finally, for any DeltaV system running critical process loops, maintaining a documented spare parts list that includes DeltaV workstation hardware, redundant controllers, and communication modules (such as the EIOC Ethernet I/O Controller) ensures that a single component failure does not become a multi-day outage. The 12P4629X082 terminal block, while small, is a single point of failure for every field instrument wired through it — stocking two to four units per active cabinet is a low-cost insurance policy against unplanned downtime.

Strategic Replacement Solutions

The Emerson 12P4629X082 is a direct, like-for-like replacement for worn, damaged, or end-of-life terminal blocks within the DeltaV CHARM I/O architecture. Because the CHARM system uses a plug-and-play characterization approach, replacing the terminal block does not require software reconfiguration — the CHARM module retains its characterization data independently. This means field technicians can complete a terminal block swap during a brief maintenance window without involving control system engineers or triggering a loop re-commissioning procedure.

For plants operating DeltaV systems installed in the early 2000s through 2010s, original terminal blocks from that era may no longer be available through standard distribution channels. TOPNLMS specializes in sourcing genuine surplus-new and factory-original Emerson components, providing a reliable supply path for systems that Emerson’s standard distribution network no longer actively stocks. This is particularly valuable for facilities committed to maintaining their existing DeltaV architecture rather than undertaking a costly system migration.

Replacing aging terminal blocks proactively — rather than reactively after a loop failure — eliminates the risk of a single wiring fault triggering a process shutdown. Given that the 12P4629X082 interfaces directly with field instruments such as pressure transmitters, flow meters, and control valves, a failure at this termination point can affect process measurement, control output, or both simultaneously. Planned replacement during scheduled turnarounds, with verified original components, is the lowest-risk and most cost-effective maintenance approach.
