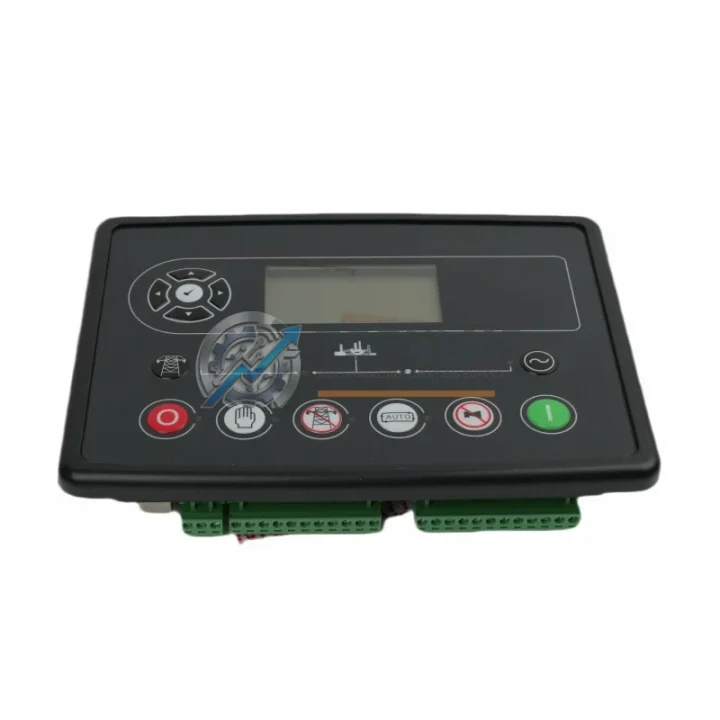

DSE DSE6120-MKIII Ruggedized AMF Control Module for Harsh Environments

Product Overview

DSE DSE6120-MKIII Ruggedized AMF Control Module: Industrial Resilience for Harsh Environments

The Deep Sea Electronics DSE6120-MKIII is a professional-grade Automatic Mains Failure (AMF) control module engineered for continuous, reliable operation in the most demanding industrial environments. As part of the proven DSE6000 Series, the DSE6120-MKIII delivers robust generator set management with advanced protection logic, making it the preferred choice for critical power infrastructure across oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing sectors.

Designed to withstand high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI), the DSE6120-MKIII maintains stable AMF sequencing and generator protection even when installed in exposed control cabinets, outdoor enclosures, or harsh plant-floor environments. Its sealed front panel and conformal-coated PCB provide a critical barrier against dust ingress and condensation — two of the most common causes of control module failure in continuous production facilities.

In industrial power systems where generator reliability is non-negotiable, the DSE6120-MKIII integrates seamlessly with upstream and downstream control architecture. It monitors mains voltage and frequency in real time, automatically initiates generator start sequences on mains failure, and manages load transfer via compatible automatic transfer switches (ATS). The module’s configurable protection thresholds — covering over/under voltage, over/under frequency, high coolant temperature, low oil pressure, and overcurrent — allow site engineers to tailor protection curves to the specific generator set and load profile without requiring proprietary software tools.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSE6120-MKIII is rarely deployed in isolation. In a complete generator control and power protection architecture, it works in concert with a range of complementary components to deliver end-to-end system reliability. The DSE8610 MKII remote annunciator panel is commonly paired with the DSE6120-MKIII to provide remote alarm monitoring and generator status display in control rooms located away from the generator set. For sites requiring advanced data logging and SCSI/SCADA integration, the DSE855 PC software suite enables configuration, event logging, and remote monitoring over RS-232 or RS-485 Modbus RTU links.

On the power distribution side, the DSE6120-MKIII interfaces with automatic transfer switch (ATS) panels and motorized changeover contactors to execute seamless load transfer between mains and generator supply. In high-availability facilities, this is often complemented by DSE4520 MKII auto start modules managing secondary generator sets in parallel operation or standby redundancy configurations. For sites with multiple generator sets, the DSE890 PC software provides fleet-level monitoring and configuration management.

Within the control cabinet, the DSE6120-MKIII is typically installed alongside industrial-grade components including DIN-rail mounted terminal blocks, surge protection devices (SPDs), 24 V DC SMPS industrial power supplies, and shielded communication cables to maintain signal integrity in high-EMI environments. Proper cabinet grounding, cable segregation between power and signal wiring, and the use of ferrite cores on communication lines are standard practices that complement the DSE6120-MKIII’s built-in EMC resilience. Safety relay modules and emergency stop circuits are integrated into the same panel to meet IEC 60204-1 machinery safety requirements, ensuring that the generator control system can be safely isolated during maintenance or emergency conditions.

For Modbus RTU-based SCADA integration, the DSE6120-MKIII’s RS-485 port connects directly to industrial communication gateways and PLC I/O modules, enabling real-time generator status data — including coolant temperature, oil pressure, voltage, frequency, and alarm states — to be transmitted to plant-level control systems. This interoperability makes the DSE6120-MKIII a natural fit for facilities already operating Siemens S7-series PLCs, Schneider Electric Modicon platforms, or Allen-Bradley ControlLogix systems where generator status must be integrated into the broader plant automation and safety instrumented system (SIS) architecture.

Application in Critical Infrastructure

The DSE6120-MKIII is deployed across a wide spectrum of critical infrastructure sectors where uninterrupted power is a safety and operational imperative.

In oil and gas facilities — including offshore platforms, onshore processing plants, and pipeline compression stations — the DSE6120-MKIII manages emergency generator sets that power safety-critical systems such as fire and gas detection panels, emergency shutdown (ESD) systems, and wellhead control units. Its ability to operate reliably across the full industrial temperature range and in high-humidity, salt-laden atmospheres makes it well-suited to both tropical and arctic deployment environments.

In mining operations, where underground ventilation, dewatering pumps, and hoisting equipment must remain operational during mains supply interruptions, the DSE6120-MKIII provides fast, reliable AMF response times that minimize production downtime. Its vibration tolerance is particularly valuable in environments subject to blasting and heavy machinery operation.

In power generation and substation applications, the DSE6120-MKIII is used to manage auxiliary generator sets that provide backup power to protection relay panels, SCADA systems, and communication equipment during grid disturbances. Its Modbus RTU communication capability allows seamless integration with substation automation systems.

In water and wastewater treatment plants, continuous operation of pumping stations, aeration systems, and chemical dosing equipment is essential for regulatory compliance and public health. The DSE6120-MKIII ensures that standby generators are started and load transfer is completed within the required time window, maintaining process continuity during mains outages.

In metallurgical and heavy manufacturing facilities, where process interruptions can result in significant material losses and equipment damage, the DSE6120-MKIII’s configurable protection thresholds and fast response logic provide the level of generator control reliability that continuous casting, electric arc furnace, and rolling mill operations demand.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DSE6120-MKIII?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing including power-on verification, relay output testing, and communication port checks. Units that fail to meet Deep Sea Electronics’ published specifications are not shipped. Warranty claims are supported with replacement unit dispatch and technical documentation.

Q2: How is the DSE6120-MKIII tested before shipment?
Every DSE6120-MKIII unit in our inventory is inspected and functionally tested prior to dispatch. Testing covers supply voltage input range, relay output continuity, LCD display operation, LED alarm indicator function, and RS-485 communication response. Units are shipped in original or equivalent protective packaging to prevent transit damage. A test report is available upon request for critical infrastructure procurement.

Q3: Is the DSE6120-MKIII compatible with my existing generator control panel?
The DSE6120-MKIII is designed for panel-mount installation and is compatible with standard generator control panel cutouts. Its relay outputs and configurable input thresholds allow integration with a wide range of generator sets from major OEMs. For Modbus RTU SCADA integration, the RS-485 port is compatible with standard industrial communication gateways. If you require confirmation of compatibility with a specific generator set or control panel configuration, please contact our technical team with your panel schematic and generator set datasheet.

Q4: Can you support long-term supply and replacement for the DSE6120-MKIII?
Yes. We maintain stock of the DSE6120-MKIII and related DSE6000 Series modules to support both immediate replacement requirements and planned maintenance programs. For facilities operating multiple generator sets or requiring scheduled spare parts procurement, we can provide volume pricing, lead time commitments, and documentation packages including datasheets, wiring diagrams, and configuration guides. Contact us to discuss your long-term supply requirements.
