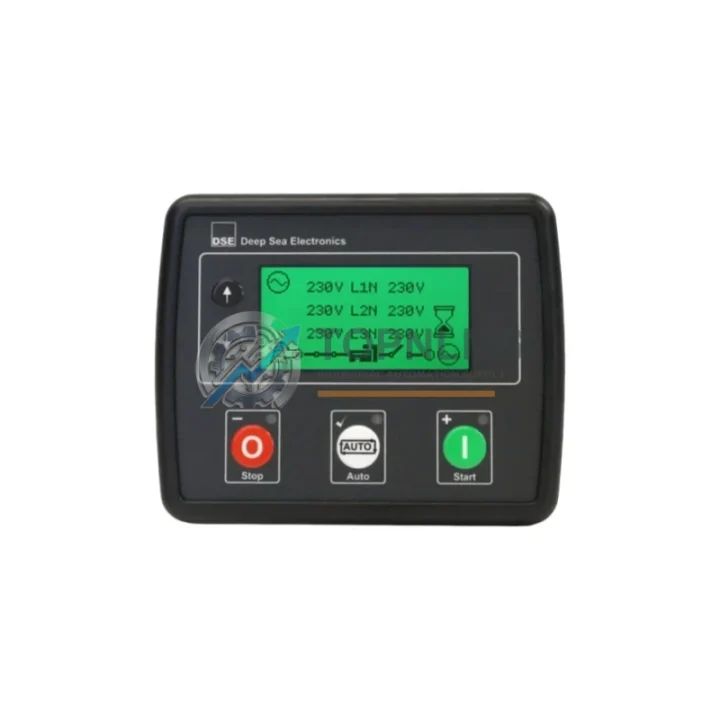

DSE DSE4520-MKII Ruggedized AMF Generator Control Module: Industrial Resilience for Harsh Environments

The Deep Sea Electronics DSE4520-MKII is a professional-grade Automatic Mains Failure (AMF) generator control module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. As part of the proven DSE 4500 Series, the DSE4520-MKII delivers comprehensive generator set management — from automatic start/stop sequencing and mains monitoring to load transfer control and multi-channel protection — all within a ruggedized housing designed to withstand the thermal stress, vibration, humidity, and electromagnetic interference common to heavy industrial sites.

Whether deployed in a remote oil and gas wellhead, an underground mining substation, a coastal water treatment facility, or a high-voltage power distribution switchroom, the DSE4520-MKII maintains reliable generator supervision without compromise. Its sealed front panel and conformal-coated PCB resist moisture ingress and corrosive atmospheres, while its wide operating temperature range ensures stable performance from arctic cold-start conditions to tropical generator room heat. For facilities where generator failure is not an option — hospitals, data centers, petrochemical plants, and continuous-process manufacturing lines — the DSE4520-MKII is a trusted backbone of the emergency power architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSE4520-MKII is rarely deployed in isolation — it forms the intelligent nerve center of a broader generator control and power protection system. In a typical industrial standby power installation, the module interfaces directly with the DSE8610 MKII PC software suite for remote monitoring and configuration, enabling plant engineers to adjust protection thresholds, log events, and perform firmware updates without physical access to the control panel. For larger multi-generator paralleling applications, the DSE4520-MKII can be paired with the DSE8680 SCADA gateway to feed real-time generator data into plant-wide supervisory systems.

On the power distribution side, the module’s relay outputs drive Schneider Electric TeSys or ABB AF-series contactors for mains and generator bus switching, ensuring clean, arc-suppressed load transfer. Upstream of the generator, DSE9480 automatic transfer switch (ATS) panels integrate seamlessly with the DSE4520-MKII’s control logic, providing a fully coordinated AMF solution. For installations requiring additional generator protection, the DSE7310 MKII advanced protection relay can be added to the same control cabinet, extending coverage to differential, earth fault, and reverse power protection.

Communication integrity is maintained through DSE855 Ethernet communication modules, which bridge the RS-485 bus of the DSE4520-MKII to plant Ethernet networks for Modbus TCP/IP integration with DCS platforms such as Honeywell Experion PKS or Emerson DeltaV. In hazardous area installations — classified Zone 2 or Division 2 — the control wiring is routed through MTL Instruments Zener barriers or galvanic isolators to maintain intrinsic safety compliance. Battery monitoring is handled by dedicated DSE9480 battery charger modules, ensuring the 24 V DC supply to the DSE4520-MKII remains within specification even during extended mains outages. Surge protection on all signal and power lines is provided by Phoenix Contact TRABTECH surge protective devices, guarding the module against transient overvoltages from nearby switching operations or lightning strikes.

Application in Critical Infrastructure

In oil and gas upstream facilities, the DSE4520-MKII governs emergency diesel generator sets that power wellhead safety systems, blowout preventers, and fire and gas detection panels. A mains failure at a remote production platform can trigger a cascade of safety shutdowns; the DSE4520-MKII’s sub-second AMF response time ensures the emergency bus is energized before critical safety instrumented systems (SIS) lose power, maintaining SIL-rated protection throughout the outage.

In underground mining operations, where ventilation fans, hoisting equipment, and dewatering pumps must remain operational during grid disturbances, the DSE4520-MKII provides the automatic generator start and load transfer logic that keeps life-safety systems running. Its vibration-hardened design tolerates the mechanical shock environment of a mine headframe or crusher building without relay chatter or false trips.

At municipal water treatment and wastewater facilities, continuous pump operation is non-negotiable. The DSE4520-MKII monitors incoming mains voltage and frequency across all three phases, initiating generator start within configurable time delays to prevent pump cavitation or process upsets during brief voltage dips. Its configurable protection curves allow plant engineers to fine-tune under/overvoltage and under/overfrequency thresholds to match local grid characteristics.

In metallurgical and heavy manufacturing plants — steel mills, aluminum smelters, cement works — the DSE4520-MKII protects the generator sets that supply arc furnace auxiliaries, cooling water systems, and control room UPS chargers. The module’s wide DC supply range (8–35 V) accommodates the voltage fluctuations typical of large industrial battery banks, and its conformal-coated PCB resists the sulfurous and dusty atmospheres found in smelting and cement environments.

For power generation and utility applications, including distributed energy resources (DER) and co-generation plants, the DSE4520-MKII’s mains decoupling and synchronization-ready architecture supports grid-parallel and island-mode operation, making it a versatile choice for both standby and prime power generator sets.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it handled?
Every DSE4520-MKII unit supplied by TOPNLMS carries a 12-month warranty against manufacturing defects from the date of shipment. Prior to dispatch, each unit undergoes a full functional test — including AMF sequence simulation, protection relay verification, and communication port check — with a test report available on request. In the event of a warranty claim, we provide advance replacement or repair support with minimal lead time to keep your site operational.

Q2: How do I verify compatibility with my existing generator set and control cabinet?
The DSE4520-MKII is compatible with virtually all diesel and gas generator sets operating on 8–35 V DC battery systems. It supports standard Cummins, Perkins, Volvo Penta, and Stamford alternator configurations. Our technical team can review your existing wiring schematics and DSE Configuration Suite settings to confirm compatibility before shipment. Replacement of an existing DSE4520 (original) or DSE4510 MKII is typically a direct panel-cutout fit.

Q3: Is the DSE4520-MKII suitable for hazardous area or safety-critical installations?
The DSE4520-MKII itself is rated for general industrial environments (IP65 front panel). For Zone 1/2 or Division 1/2 hazardous area installations, the module is installed in a certified Ex e or Ex d enclosure, with all field wiring routed through appropriate intrinsic safety barriers or galvanic isolators. We can advise on suitable enclosure and barrier combinations for your specific area classification and process safety requirements.

Q4: What is the typical lead time, and can you support long-term spare parts supply?
Units in stock ship within 1–3 business days via DHL Express or FedEx International Priority from Xiamen, China, with full export documentation and commercial invoice. TOPNLMS maintains ongoing stock of DSE 4500 Series modules to support long-term maintenance contracts and planned outage sparing strategies. For OEM integrators and EPC contractors requiring scheduled deliveries, framework supply agreements are available — contact us at [email protected] or +86 18359293191 to discuss your project requirements.
