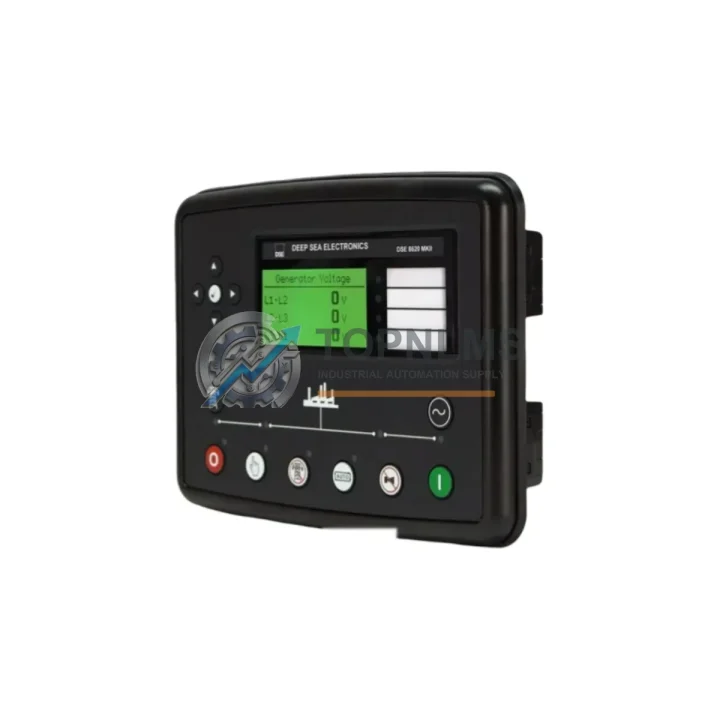

Deep Sea Electronics DSE8620 MKII Replacement for DSE8600

Product Overview

Deep Sea Electronics DSE8620 MKII Replacement for DSE8600: Smooth Transition & Legacy System Compatibility

When your existing DSE8600 Series automatic mains failure (AMF) controller reaches end-of-life or becomes difficult to source, the DSE8620 MKII is the industry-validated drop-in replacement that eliminates costly panel redesigns and minimises generator set downtime. Engineered by Deep Sea Electronics to maintain backward compatibility with the DSE8600 platform, this module preserves your existing wiring harness, terminal layout, and generator control cabinet footprint — making it the preferred upgrade path for OEMs, panel builders, and field service engineers worldwide.

The DSE8620 MKII supports both single and three-phase mains sensing, integrated AMF sequencing, and comprehensive engine protection. Its front-panel USB port and DSE Configuration Suite PC software allow engineers to migrate parameters from legacy DSE8600 configurations with minimal re-commissioning effort. Whether you are replacing a failed unit on a critical standby generator or proactively upgrading an aging fleet, the DSE8620 MKII delivers a reliable, specification-matched solution backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSE8620 MKII retrofit rarely involves the controller alone. During the migration from an older DSE8600 platform, field engineers typically address several interconnected components within the same generator control cabinet. The DSE8680 MKII and DSE8660 MKII are frequently specified alongside the DSE8620 MKII in multi-genset synchronising applications, where the 8620 handles AMF duties while the 8680 or 8660 manages load sharing and synchronisation across the busbar.

Power supply integrity is equally critical during a retrofit. The DSE9480 battery charger and power supply module is commonly installed in the same panel to ensure stable 12 V or 24 V DC supply to the new controller, replacing aging charger units that may no longer meet the DSE8620 MKII’s inrush requirements. For remote monitoring integration, the DSE855 GPRS/Ethernet remote communications module connects directly to the DSE8620 MKII’s RS-485 port, enabling cloud-based fleet monitoring without additional gateways.

On the engine interface side, engineers migrating from older Cummins, Perkins, or Volvo Penta engine ECUs often pair the DSE8620 MKII with a DSE890 PC interface kit or a DSE2130 expansion module to extend digital and analogue I/O capacity — particularly when the legacy panel used discrete relay logic that must now be consolidated into the new controller’s configurable inputs. The DSE124 and DSE125 remote annunciator panels are also commonly retained or upgraded in parallel, as they communicate directly with the DSE8620 MKII over the existing CAN or RS-485 wiring without modification.

For installations where the original panel used a separate DSE5110 or DSE5120 manual/auto transfer switch controller, the migration to DSE8620 MKII often consolidates those functions into a single module, reducing panel complexity and the number of discrete components requiring maintenance. Commissioning engineers should also verify that the existing DSE8610 MKII or DSE8620 (non-MKII) configuration files are exported via DSE Configuration Suite before decommissioning the old unit, as parameter sets can be imported directly into the DSE8620 MKII with minor adjustments to mains window thresholds and engine protection trip levels.

Retrofit Guidance FAQ

Q: Does the DSE8620 MKII use the same wiring terminals as the DSE8600 Series?
A: Yes. The DSE8620 MKII maintains the same terminal numbering and pinout as the DSE8600 platform. In most installations, the existing wiring harness can be transferred directly to the new module without modification. Always verify against the DSE8620 MKII installation manual for your specific engine interface wiring.

Q: Can I import my existing DSE8600 configuration into the DSE8620 MKII?
A: Yes. DSE Configuration Suite supports backward-compatible configuration import. Export your existing .dse configuration file from the legacy unit, open it in the current version of DSE Configuration Suite, and load it to the DSE8620 MKII. Review mains voltage window, frequency thresholds, and engine protection settings after import, as some parameters may require adjustment for the MKII firmware.

Q: Is the Modbus RTU register map compatible between DSE8600 and DSE8620 MKII?
A: The DSE8620 MKII supports the standard DSE Modbus register set. Most SCADA and BMS integrations using the DSE8600 Modbus map will function without modification. Consult the DSE8620 MKII Modbus manual (available from DSE) to verify any custom register mappings used in your existing system.

Q: Will the DSE8620 MKII fit the existing panel cutout?
A: The DSE8620 MKII uses the same panel cutout dimensions as the DSE8600 Series. No panel modification is required for a direct replacement. Verify bezel and gasket compatibility if your installation requires IP65 front-panel sealing.

Q: What communication protocols does the DSE8620 MKII support?
A: The DSE8620 MKII supports RS-232, RS-485 (Modbus RTU), and USB (for local configuration). It is compatible with DSE remote communications modules such as the DSE855 for Ethernet/GPRS connectivity. CAN bus is supported for engine ECU communication on compatible engine platforms.

Q: How do I handle the transition from a discrete relay-based legacy panel to the DSE8620 MKII?
A: The DSE8620 MKII’s configurable digital inputs and relay outputs can replicate most discrete relay logic used in older panels. Map your existing relay functions to the DSE8620 MKII’s configurable outputs during the commissioning phase. DSE’s application engineering team and your local distributor can provide application-specific guidance for complex legacy panel migrations.

Warranty Assurance

Every DSE8620 MKII unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, communication port validation, and configuration software connectivity check. Units are shipped in original or equivalent protective packaging with full documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or repair support with priority handling for critical standby power applications. Our technical team is available to assist with installation queries, configuration questions, and compatibility verification before and after purchase. We maintain stock of DSE8620 MKII and related DSE8600 Series components to support rapid fulfilment for urgent replacement requirements.

For procurement enquiries, bulk pricing, or technical pre-sales support, contact our team directly. We ship globally from Xiamen, China, with DHL Express, FedEx, and UPS options available for time-critical orders.
