Danpex AN-520BT Original Industrial Spare AN-520 Compatible: System Stability & Maintenance Value

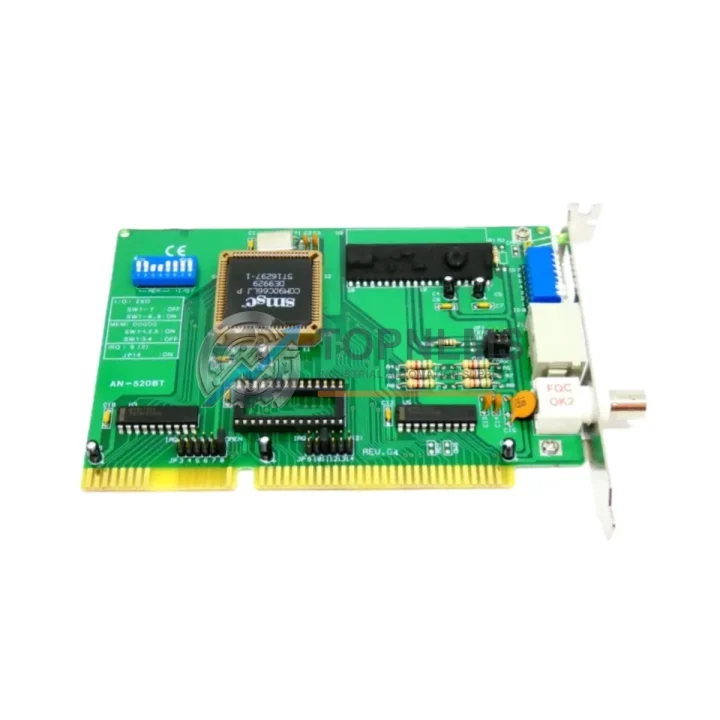

In industrial automation environments, network communication reliability is the backbone of uninterrupted production. The Danpex AN-520BT is a 16-bit ISA ARCNET network interface card engineered for demanding industrial control system applications. As an original spare part within the AN-520 Series, the AN-520BT provides a direct, compatible replacement for aging or failed network interface cards in legacy PLC and DCS architectures — enabling maintenance teams to restore system communication without costly infrastructure overhauls.

For facilities operating legacy ISA-bus control systems, sourcing a verified original AN-520BT is often the difference between a two-hour repair and a multi-day production shutdown. The AN-520BT’s ARCNET protocol support ensures deterministic, token-passing network communication — a critical requirement in process control, motion coordination, and distributed I/O environments where timing integrity cannot be compromised.

Critical Technical Specs

Preventive Maintenance Strategy

When a Danpex AN-520BT network interface card is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance engineers know that the network card is rarely the only component under stress. A comprehensive inspection of the entire communication and control cabinet is essential to prevent repeat failures and maximize uptime between service intervals.

Begin with the ISA backplane and industrial PC chassis — verify that all ISA slot contacts are clean and free of oxidation, as poor contact resistance is a leading cause of intermittent ARCNET communication faults. While the cabinet is open, inspect the ARCNET coaxial cable assemblies and BNC terminators; degraded coax shielding or loose BNC connectors introduce signal reflections that can destabilize the entire network segment even after a new AN-520BT is installed.

The 24VDC power supply module feeding the industrial PC rack should be load-tested during this window — an aging power supply with marginal output voltage is a common root cause of unexplained network card failures. If the system includes a redundant power supply unit, verify automatic switchover functionality and replace any capacitors showing signs of bulging or leakage.

For systems where the AN-520BT interfaces with downstream PLC I/O modules — such as digital input modules, analog output modules, or remote I/O racks — this is the ideal time to verify module status LEDs, check terminal block torque values, and confirm that no I/O channels are reporting persistent faults. Loose terminal connections on DIN rail terminal blocks are a frequent source of intermittent signals that are often misdiagnosed as network-layer issues.

If the control system includes a communication gateway or protocol converter bridging ARCNET to Modbus, PROFIBUS, or Ethernet, inspect the gateway’s firmware version and connection status logs. Outdated firmware on communication bridges can cause packet loss that mimics a failing network interface card. Similarly, any signal isolators or surge protection modules installed on the ARCNET segment should be tested for proper isolation resistance — industrial environments with variable-frequency drives or large motor starters are particularly prone to common-mode noise injection.

Complete the inspection by reviewing the HMI panel or operator workstation connected to the ARCNET network. Verify that the HMI’s communication driver configuration matches the AN-520BT’s node address settings, and confirm that the ARCNET network management software (if applicable) correctly enumerates all nodes after the card replacement. Documenting node addresses and network topology in the maintenance log will significantly reduce troubleshooting time during future service events.

Strategic Replacement Solutions

The Danpex AN-520BT addresses one of the most persistent challenges in industrial maintenance: keeping legacy ISA-bus ARCNET systems operational without migrating to entirely new control architectures. Many facilities continue to rely on ISA-based industrial PCs as the communication hub for distributed control systems that were commissioned in the 1990s and early 2000s. Replacing the entire control system to address a single failed network card is neither economically justified nor operationally practical when production schedules are tight.

By stocking the AN-520BT as a certified original spare, maintenance teams can execute a card swap in under 30 minutes — restoring full ARCNET network communication without reconfiguring node addresses, updating driver software, or revalidating the control system. The AN-520BT’s direct compatibility with the AN-520 Series specification means that replacement cards are plug-and-play within the same ISA slot, eliminating the risk of configuration drift that often accompanies third-party substitutes.

For facilities managing multiple ARCNET network segments or operating several ISA-based industrial PCs across different production lines, maintaining a minimum stock of two AN-520BT units per site is a recognized best practice. This buffer inventory eliminates single-point-of-failure risk at the network layer and ensures that a second failure — which statistically occurs within 12–18 months of the first in aging systems — can be resolved without emergency procurement delays.

The AN-520BT also supports system life extension strategies for facilities that have deferred control system modernization. By replacing failed or degraded network interface cards with original-specification parts, engineering teams can reliably extend the operational life of legacy ARCNET systems by 3–5 years, providing the runway needed to plan and budget a structured migration to modern Ethernet-based control architectures.
