Canon CPU-86 BH8-0675-03 Original Industrial Spare AF Compatible

Product Overview

Canon CPU-86 BH8-0675-03 Original Industrial Spare AF Compatible — System Stability & Maintenance Value

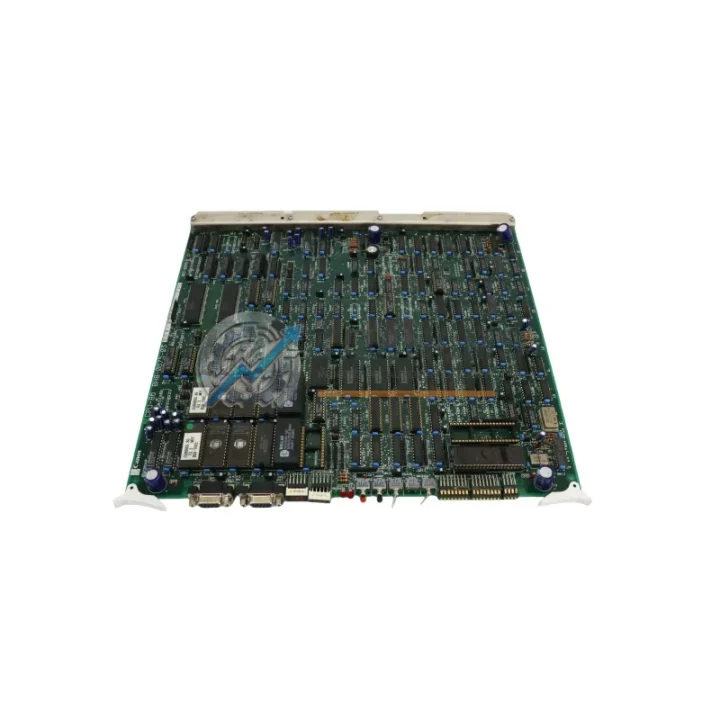

The Canon CPU-86 (BH8-0675-03) is an original autofocus CPU board engineered for Canon industrial imaging and precision control systems. Cross-referenced under part numbers BG9-3728, MI-6, 10332-12400, and 0020-26374, this board serves as the central processing unit governing autofocus logic, signal arbitration, and closed-loop feedback within Canon’s BH8-series industrial control architecture. For maintenance engineers managing aging Canon-based production lines, securing a verified original replacement board is the single most effective measure to eliminate unplanned downtime caused by CPU-level failures.

Industrial environments subject control boards to continuous thermal cycling, vibration, and voltage transients. Over time, solder joint fatigue, capacitor degradation, and firmware-level wear accumulate silently — until a line stops. The CPU-86 board governs the autofocus subsystem’s real-time decision loop; when it fails, the entire imaging or positioning process halts. Stocking a pre-tested original Canon CPU-86 BH8-0675-03 as a cold-standby spare is the most cost-effective insurance against a multi-day production outage.

Critical Technical Specs

Preventive Maintenance Strategy

A CPU board failure rarely occurs in isolation. When a Canon BH8-series control cabinet is opened for inspection or the CPU-86 board is being replaced, experienced maintenance engineers treat the intervention as a full-system health audit. The autofocus CPU board interfaces directly with the Canon BH8 power supply module — any ripple or voltage sag from an aging PSU can accelerate CPU board degradation. Verifying the power supply’s output rails during the same maintenance window prevents a repeat failure within weeks of the CPU swap.

Downstream from the CPU-86, the Canon AF driver board and associated motor driver PCB receive positioning commands. If the CPU board has been operating in a degraded state, it may have been issuing erratic signals that stress these downstream boards. A proactive inspection of the driver stage — and replacement of any boards showing burn marks, swollen capacitors, or erratic response — is strongly recommended alongside the CPU-86 replacement.

The Canon BH8 I/O interface board handles signal routing between the CPU and external sensors. Connector oxidation and pin wear on this board are common in high-cycle environments. During the same cabinet inspection, cleaning or replacing the I/O board’s connectors — or stocking a spare I/O board — eliminates a common secondary failure point. Similarly, the Canon sensor signal board and position feedback encoder cable assembly should be inspected for insulation cracking and connector integrity, as these components share the same thermal and vibration load as the CPU board.

For facilities running Canon BH8-series systems in multi-axis configurations, the Canon communication interface module (responsible for RS-232/RS-422 or proprietary bus communication between the CPU and HMI) is another component worth auditing. Communication faults are frequently misdiagnosed as CPU failures; confirming the interface module’s health before condemning the CPU board can save significant time and cost. If your facility uses a Canon HMI operator panel or a third-party HMI connected to the BH8 system, verifying the HMI’s communication parameters after a CPU board swap is essential to restore full system operability.

Finally, the terminal block assemblies and fuse modules within the Canon BH8 control cabinet should be inspected during any CPU-level maintenance. Loose terminal connections cause intermittent faults that are difficult to trace and can damage a newly installed CPU board. Replacing any discolored or heat-stressed fuse holders and re-torquing all terminal screws to specification is a low-cost step that protects the investment in the new CPU-86 board.

Strategic Replacement Solutions

The Canon CPU-86 BH8-0675-03 is a legacy industrial board that Canon no longer actively promotes through standard distribution channels. As production lines age and OEM support windows close, sourcing verified original spare boards becomes increasingly difficult — and increasingly critical. A single unplanned stoppage caused by an unavailable CPU board can cost more in lost production than an entire year’s worth of proactive spare inventory.

TOPNLMS specializes in sourcing, testing, and supplying original Canon industrial control boards for exactly this scenario. Each CPU-86 unit we ship has been functionally tested under load conditions representative of its intended application. We maintain stock of BH8-series boards specifically to support facilities that cannot afford the lead times associated with new OEM orders or refurbished alternatives of uncertain provenance.

For facilities managing a planned migration away from Canon BH8-series systems, the CPU-86 board also serves as a bridge component — maintaining the existing system in reliable operation while the replacement platform is commissioned, validated, and integrated. This approach eliminates the risk of a forced cutover driven by hardware failure rather than project schedule, preserving both production continuity and capital planning flexibility.

Customers managing multiple Canon BH8 installations across different sites are encouraged to consolidate spare board procurement. Bulk stocking of the CPU-86 alongside the power supply module and I/O interface board creates a complete rapid-response kit that can restore any BH8 cabinet to operation within the time it takes to physically access the control room — not the days or weeks required to source emergency parts.
