Bosch Rexroth VT5006S12R5 Replacement for VT-5006

Product Overview

Bosch Rexroth VT5006S12R5 Replacement for VT-5006: Smooth Transition & Legacy System Compatibility

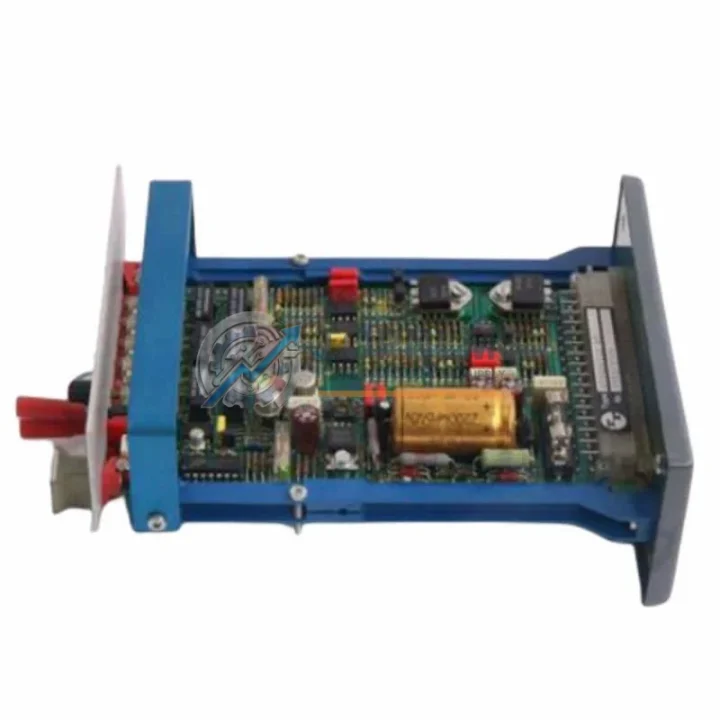

The Bosch Rexroth VT5006S12R5 is a 12 VDC Euro-card format proportional valve amplifier card belonging to the VT-5006 series. It is widely deployed in hydraulic motion control systems across press machinery, injection molding equipment, steel rolling mills, and marine deck machinery. As original VT-5006 series cards reach end-of-life or become increasingly difficult to source through standard distribution channels, plant engineers and procurement teams face mounting pressure to secure verified replacement units without triggering a full system redesign.

At TOPNLMS, we stock the VT5006S12R5 as a direct drop-in replacement for aging Bosch Rexroth proportional amplifier installations. Our units are sourced from authorized supply chains, individually tested prior to dispatch, and backed by a 12-month warranty. Whether you are managing a planned maintenance window or responding to an unplanned shutdown, our inventory and logistics infrastructure is designed to minimize your downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VT5006S12R5 migration rarely involves a single card in isolation. In practice, the proportional amplifier card operates within a broader hydraulic control architecture that may include several interdependent components requiring simultaneous attention.

The VT-VSPA2-1-1X/V0/0 amplifier rack is the standard 19-inch subrack used to house VT-5006 series Euro-cards. If the existing rack shows signs of backplane corrosion or connector wear, replacing it alongside the amplifier card eliminates a common source of intermittent faults. Similarly, the VT-VSPA1 single-slot housing is an alternative for installations where only one amplifier card is mounted per enclosure.

On the valve side, the VT5006S12R5 is typically paired with Bosch Rexroth 4WRPH / 4WRPEH series proportional directional control valves. Confirming valve coil resistance and rated current against the amplifier’s output stage specification is a mandatory step during commissioning. If the existing valve is also discontinued, the 4WRPH 6 C3B 40L-2X/G24K0/A1M and similar current-generation variants offer backward-compatible hydraulic porting.

For systems where the command signal originates from a legacy Siemens S5 or S7-300 PLC analog output module — such as the 6ES5 470 or SM 332 — no signal conditioning is required, as the ±10 V interface is natively compatible. However, if the control system has been migrated to a Siemens S7-1500 with PROFINET I/O, an analog output module such as the SM 532 or AQ 4×U/I HF must be confirmed to deliver the correct voltage range and update rate.

In cabinet installations where multiple proportional axes are controlled, the VT-HACD-1 hydraulic axis controller or a VT-HNC100 digital axis controller may be present upstream of the amplifier card. These controllers output a ±10 V analog demand signal that feeds directly into the VT5006S12R5 command input, preserving the existing control loop without software modification.

Power supply integrity is critical. The VT-NE30-1X/24VDC power supply module or an equivalent 24 VDC / 12 VDC regulated DIN-rail PSU should be verified for load capacity before commissioning the replacement card. Voltage ripple exceeding 50 mV peak-to-peak can introduce instability in the dither circuit and degrade valve positioning accuracy.

Where signal isolation between the PLC output and the amplifier input is required — particularly in older installations with long cable runs or shared ground references — a signal isolator such as the Phoenix Contact MCR-SL-UI-UI or equivalent galvanic isolator is recommended to eliminate ground loop interference before the analog command reaches the VT5006S12R5.

Retrofit Guidance FAQ

Q: Can I swap the VT5006S12R5 without modifying the existing wiring harness?
A: In most cases, yes. The DIN 41612 Type C 64-pin connector is pin-compatible with earlier VT-5006 revisions. Verify the supply voltage jumper (12 VDC vs. ±15 VDC) on the new card matches your cabinet’s power rail before insertion.

Q: Do I need to re-tune the PLC program after replacement?
A: No PLC program changes are required if the command signal remains ±10 V analog. Ramp time and dither amplitude are set via onboard potentiometers on the VT5006S12R5 and should be matched to the previous card’s settings during commissioning.

Q: Is the VT5006S12R5 compatible with PROFIBUS or PROFINET?
A: The VT5006S12R5 is an analog amplifier card and does not natively support fieldbus protocols. It receives a ±10 V analog command from the upstream controller. Fieldbus-to-analog conversion, if needed, is handled at the PLC or axis controller level.

Q: What physical space does the card require?
A: The Euro-card format (100 × 160 mm) fits standard 3U subrack slots. No additional panel cutouts or DIN-rail adapters are required when replacing a like-for-like VT-5006 series card in an existing Bosch Rexroth amplifier rack.

Q: How do I verify the replacement card before connecting to the valve?
A: Apply supply voltage, connect a calibrated ±10 V signal source to the command input, and measure the current output at the valve connector pins using a clamp meter. Compare against the rated output current specification in the VT5006S12R5 datasheet before connecting the proportional valve coil.

Warranty Assurance

Every VT5006S12R5 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each card undergoes functional verification including supply voltage acceptance, enable/inhibit signal response, ramp generator operation, and analog output linearity check. Units that do not meet specification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial fault assessment and 5 business days for replacement dispatch. Customers are not required to return the defective unit before a replacement is shipped for verified warranty cases.

We ship from Xiamen, China via DHL Express, FedEx International Priority, and UCP, with typical transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact our team directly.
