Bosch Rexroth WV60-RGC2 Ruggedized Proportional Valve Control Module: Industrial Resilience in Harsh Environments

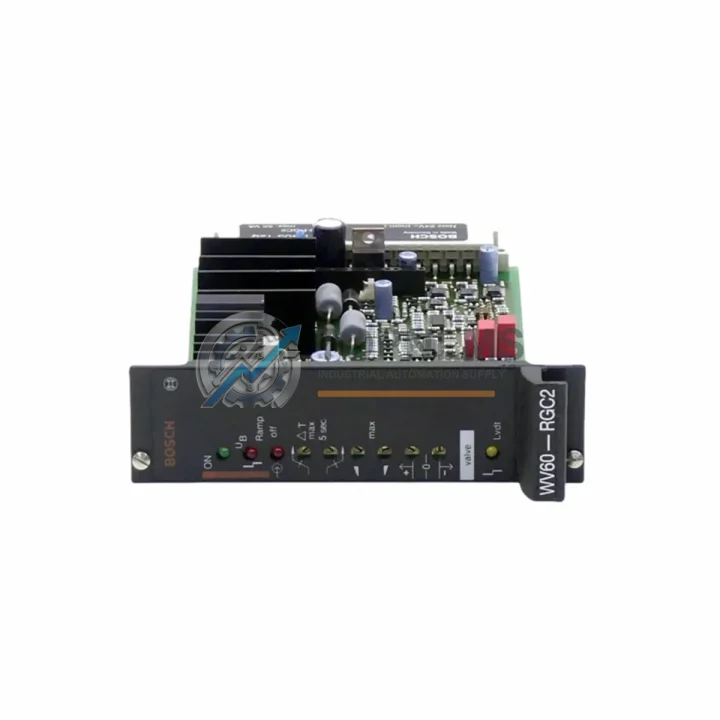

The Bosch Rexroth WV60-RGC2 is a precision-engineered proportional valve amplifier card from the WV60 Series, purpose-built to deliver stable, high-fidelity control of proportional hydraulic valves in the most demanding industrial environments. Whether deployed in steel mills, offshore platforms, chemical processing plants, or heavy-press manufacturing lines, the WV60-RGC2 maintains consistent signal output and valve response accuracy even under conditions of elevated temperature, mechanical vibration, electromagnetic interference (EMI), and high ambient humidity. Its ruggedized design philosophy reflects Bosch Rexroth’s commitment to reliability in continuous-duty industrial applications where control system failure is not an option.

In hydraulic automation systems, the amplifier card is the critical interface between the PLC or DCS controller and the proportional valve actuator. The WV60-RGC2 receives a low-level analog command signal — typically 0–10 V or 4–20 mA — from the upstream controller and converts it into a precisely regulated current output to drive the proportional solenoid. This closed-loop amplification process ensures that valve spool position tracks the command signal with minimal hysteresis and fast dynamic response, which is essential for pressure control, flow regulation, and position feedback in servo-hydraulic circuits.

Rugged Specifications Table

Comprehensive Protection Solutions: Maintaining System Integrity in Hostile Conditions

The WV60-RGC2 does not operate in isolation. In a well-engineered hydraulic control cabinet, it works in concert with a range of protective and control components that collectively ensure system uptime and operator safety. When commissioning or maintaining a system built around the WV60-RGC2, engineers should simultaneously verify the condition of the Bosch Rexroth VT-VSPA1 proportional amplifier if dual-axis control is present, as cross-axis signal interference can degrade valve response. The 24 V DC industrial power supply module feeding the amplifier card must maintain tight voltage regulation — even brief undervoltage events can cause solenoid current dropout and unintended valve closure.

In environments with significant EMI — such as near large variable frequency drives (VFDs) or motor starters — the signal wiring between the PLC analog output module and the WV60-RGC2 input should be shielded and routed away from power conductors. The Bosch Rexroth VT-SWMO signal conditioning module can be inserted upstream to filter noise before it reaches the amplifier card. Similarly, signal isolators (such as Phoenix Contact or Weidmüller 4–20 mA loop isolators) are recommended when the PLC and the hydraulic panel share different ground references, preventing ground loop interference that manifests as valve hunting or oscillation.

For the PLC side, the Siemens S7-300 or S7-1500 analog output module (e.g., SM 332 or AQ series) provides the command signal. Ensuring this module is calibrated and free of channel drift is part of any preventive maintenance routine involving the WV60-RGC2. On the feedback side, if the system uses a linear position transducer (LVDT) or pressure transducer for closed-loop control, these sensors should be inspected for drift or contamination simultaneously with any amplifier card replacement.

Within the control cabinet, terminal blocks (such as Weidmüller or Phoenix Contact screw-clamp types) connecting the amplifier card to field wiring should be inspected for corrosion, especially in high-humidity or coastal environments. Corroded terminals introduce resistance that alters the effective current delivered to the solenoid, causing calibration errors. Fuse modules protecting the 24 V supply rail to the WV60-RGC2 should also be checked — a slow-blow fuse rated at 1–2 A is typical for this class of amplifier card. Finally, the Bosch Rexroth proportional valve solenoid coil itself (the load driven by the WV60-RGC2) should be resistance-tested during any amplifier replacement to rule out coil degradation as the root cause of control anomalies.

Application in Critical Infrastructure

The WV60-RGC2 finds its most demanding deployments in critical infrastructure sectors where hydraulic control precision directly impacts process safety and production continuity.

Oil & Gas and Offshore Platforms: On offshore drilling rigs and FPSO vessels, proportional valve amplifier cards control blowout preventer (BOP) hydraulic circuits, riser tensioner systems, and subsea control manifolds. The WV60-RGC2’s resistance to salt-laden air, vibration from wave motion, and EMI from onboard generators makes it a preferred choice for topside hydraulic control panels. Replacement cycles are planned during scheduled maintenance windows, and having a verified spare WV60-RGC2 on the rig eliminates the risk of extended downtime waiting for offshore logistics.

Steel and Metallurgy: In continuous casting lines and rolling mills, proportional valve control governs hydraulic gap adjustment, roll force control, and cooling water flow regulation. The WV60-RGC2 operates in close proximity to induction furnaces and large DC drives, both of which generate intense electromagnetic fields. Its EMC-hardened design ensures that the amplifier card maintains accurate solenoid current output without spurious valve movements that could cause strip breaks or surface defects.

Mining and Mineral Processing: Underground mining equipment — including longwall shearers, roof support systems, and conveyor tensioners — relies on proportional hydraulic control for precise load management. The WV60-RGC2 withstands the coal dust, water ingress, and mechanical shock characteristic of underground environments. Surface processing plants (crushers, flotation cells, thickeners) similarly benefit from its robust signal handling in electrically noisy environments.

Power Generation and Water Treatment: Turbine governor hydraulic systems, dam gate control, and large pump station flow control all employ proportional valve technology. The WV60-RGC2 supports long-term, unattended operation in these applications, where maintenance access is infrequent and reliability over multi-year intervals is the primary procurement criterion.
