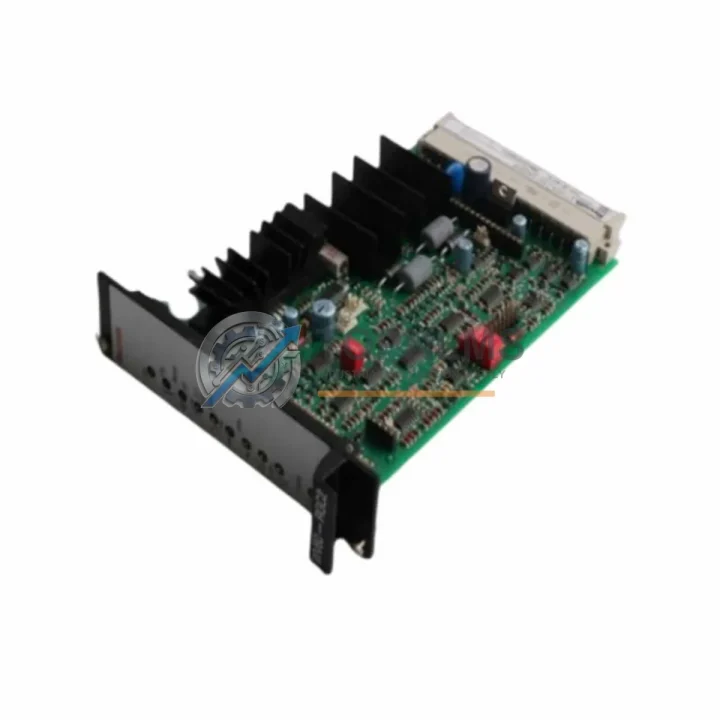

REXROTH VT-VSPA1-1-F10 Ruggedized Amplifier Module

Product Overview

REXROTH VT-VSPA1-1-F10 Ruggedized Amplifier Module: Industrial Resilience in the Harshest Environments

The REXROTH VT-VSPA1-1-F10 is a single-axis proportional valve amplifier card engineered by Bosch Rexroth for the most demanding industrial hydraulic control applications. Purpose-built to sustain continuous, fault-free operation in environments defined by extreme ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this amplifier module delivers precise, repeatable control signals to proportional directional control valves and proportional pressure valves across continuous production lines and heavy-industry installations worldwide.

In sectors where hydraulic motion control is the backbone of production — oil and gas processing, underground mining, steel and metallurgy, power generation, water treatment infrastructure, and offshore platforms — component failure translates directly into costly unplanned downtime, safety incidents, and production losses. The VT-VSPA1-1-F10 is designed to eliminate that risk. Its ruggedized analog signal conditioning circuitry maintains output linearity and repeatability even when supply voltage fluctuates, high-frequency EMI is present on the control cabinet bus, or mechanical shock loads are transmitted through the DIN rail mounting structure.

TOPNLMS maintains dedicated stock of the VT-VSPA1-1-F10 and related Bosch Rexroth hydraulic control components, with pre-shipment functional testing, 12-month warranty coverage, and full export documentation for global procurement teams. Whether you are replacing a failed card on an emergency basis or building a preventive spare-parts inventory for a long-term maintenance program, TOPNLMS provides the supply reliability that critical infrastructure demands.

Rugged Specifications Table

Comprehensive Protection Solutions

The VT-VSPA1-1-F10 operates as a critical node within a broader Bosch Rexroth hydraulic and electronic control architecture. In a typical heavy-industry control cabinet, this amplifier card interfaces directly with a Rexroth 4WRPH series proportional directional control valve, translating the PLC’s analog output into precise solenoid drive current. The upstream command signal originates from a Rexroth IndraControl L or IndraControl V PLC, or from a third-party controller such as a Siemens S7-1500 with SM 532 analog output module, both of which deliver the ±10 V DC reference signal the VT-VSPA1-1-F10 requires for stable, linear valve positioning.

Power integrity is fundamental to amplifier stability. The card is powered through a Rexroth VT-SWKD or equivalent 24 V DC regulated power supply module, which provides the clean, regulated bus voltage needed to prevent output drift under load transients. In installations where multiple proportional axes are controlled simultaneously, a Rexroth VT-VSPA2 dual-axis amplifier card may complement the VT-VSPA1-1-F10 for secondary valve channels, reducing cabinet footprint while maintaining full signal fidelity across all axes.

For safety-critical hydraulic circuits — including press brakes, injection molding clamping units, and offshore blowout preventer controls — the VT-VSPA1-1-F10 is routinely paired with a Rexroth VT-HACD safety relay module or a Pilz PNOZ safety relay to implement SIL 2-compliant emergency stop and valve de-energization logic. Communication between the safety layer and the main PLC is handled via PROFIBUS DP or PROFINET IO communication modules, ensuring deterministic response times even in electrically noisy environments where variable frequency drives and large motor starters generate significant conducted interference.

Terminal connectivity within the control cabinet is managed through Phoenix Contact or Weidmüller DIN rail terminal blocks, which provide reliable, vibration-resistant wire termination for the amplifier’s command signal, enable, and feedback wiring. Where closed-loop position control is required, a Rexroth linear position transducer with SSI or LVDT interface feeds axis position data back to the PLC, enabling precise velocity profiling and end-of-stroke deceleration — capabilities that are essential in continuous casting machines, hydraulic presses, and servo-hydraulic test rigs.

In installations where the VT-VSPA1-1-F10 must coexist with high-power drives and induction heating equipment, Rexroth HCS or HMV series drive controllers and their associated NFD noise filter modules are deployed on the same cabinet bus to suppress conducted EMI before it reaches the amplifier card’s analog input stage. This layered approach to electromagnetic compatibility ensures that the VT-VSPA1-1-F10 maintains its specified ±0.1% output repeatability even in the most electromagnetically hostile industrial environments.

Application in Critical Infrastructure

In oil and gas upstream operations, the VT-VSPA1-1-F10 controls proportional flow valves on wellhead choke manifolds and hydraulic workover units, where ambient temperatures routinely exceed 45 °C and salt-laden, humidity-saturated air accelerates corrosion of unprotected electronics. Installed within sealed, climate-controlled control panels rated to IP65 or higher, the amplifier card maintains stable solenoid drive currents that ensure precise choke positioning and prevent uncontrolled well flow events that could escalate into blowout scenarios.

In underground coal and hard-rock mining, roof support systems and longwall shearer hydraulics depend on proportional valve control for safe, coordinated movement of powered roof supports across the entire face length. The VT-VSPA1-1-F10’s immunity to conducted and radiated EMI — generated by high-power variable frequency drives controlling conveyor belts, ventilation fans, and dewatering pumps — ensures that valve positioning commands are executed accurately, preventing hydraulic surges that could compromise structural support integrity and endanger personnel.

In steel and metallurgy plants, continuous casting machines use proportional hydraulic control to regulate mold oscillation frequency and amplitude with sub-millimeter precision. The VT-VSPA1-1-F10 sustains reliable operation despite intense radiated heat from molten metal, high-frequency vibration from rolling mills and straightening rolls, and the powerful electromagnetic fields generated by large induction furnaces and electric arc furnaces operating in adjacent bays. Its ability to maintain signal integrity under these combined stressors makes it a preferred choice for caster hydraulic control upgrades and modernization projects.

In power generation facilities — including thermal, hydroelectric, and nuclear plants — the VT-VSPA1-1-F10 controls proportional hydraulic actuators on turbine governor valves, steam bypass valves, and cooling water flow control systems. The consequences of valve positioning errors in these applications range from turbine trip events to grid instability, making the amplifier card’s proven reliability and long mean time between failures (MTBF) critical procurement criteria for plant maintenance engineers.

In municipal water treatment and high-pressure pumping stations, the amplifier card controls proportional flow control valves on filtration, chlorination dosing, and distribution pressure management systems, where 24/7 continuous operation is mandatory and unplanned shutdowns directly affect public water supply reliability. TOPNLMS’s ability to supply genuine VT-VSPA1-1-F10 units from verified stock, with rapid dispatch and full traceability documentation, makes it a trusted source for water utility maintenance departments managing aging hydraulic control infrastructure.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the VT-VSPA1-1-F10?
Every VT-VSPA1-1-F10 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair at no additional cost, and our technical team provides remote diagnostic support to minimize your downtime. Warranty documentation is included with every shipment.

Q2: How is each unit tested before shipment?
All VT-VSPA1-1-F10 cards undergo pre-shipment functional verification, including supply voltage input testing across the full ±25% tolerance range, analog command signal response linearity checks, solenoid output current measurement at rated load, and enable/disable logic validation. Units that do not meet Bosch Rexroth’s original performance specifications are quarantined and not dispatched. A test record is available upon request for quality-critical procurement programs.

Q3: Is the VT-VSPA1-1-F10 compatible with my existing Rexroth proportional valve and PLC setup?
The VT-VSPA1-1-F10 is designed for direct compatibility with Rexroth 4WRPH, 4WRPEH, DBET, and DBEM series proportional valves. It accepts standard ±10 V DC analog command signals from any PLC analog output module — including Siemens S7-300/400/1500, Allen-Bradley ControlLogix, Mitsubishi MELSEC Q series, and Rexroth IndraControl platforms — making it a drop-in replacement in most existing hydraulic control architectures without requiring software or wiring modifications.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the VT-VSPA1 series?
Yes. TOPNLMS maintains dedicated stock of VT-VSPA1 series amplifier cards and related Bosch Rexroth hydraulic control components to support long-term maintenance programs and emergency replacement requirements. We supply to OEMs, system integrators, EPC contractors, and end-user maintenance departments globally, with full export documentation — commercial invoices, packing lists, certificates of origin, and material safety data sheets — provided for customs clearance. Contact our procurement team at [email protected] or +86 18359293191 for volume pricing, lead times, and consignment stock arrangements.
