Bosch Rexroth VPB40.3D1L-1G0NN-D1D-DN-NN-FW Original Spare VPB40

Product Overview

Bosch Rexroth VPB40.3D1L-1G0NN-D1D-DN-NN-FW Original Spare VPB40: System Stability & Industrial Spare Maintenance Value

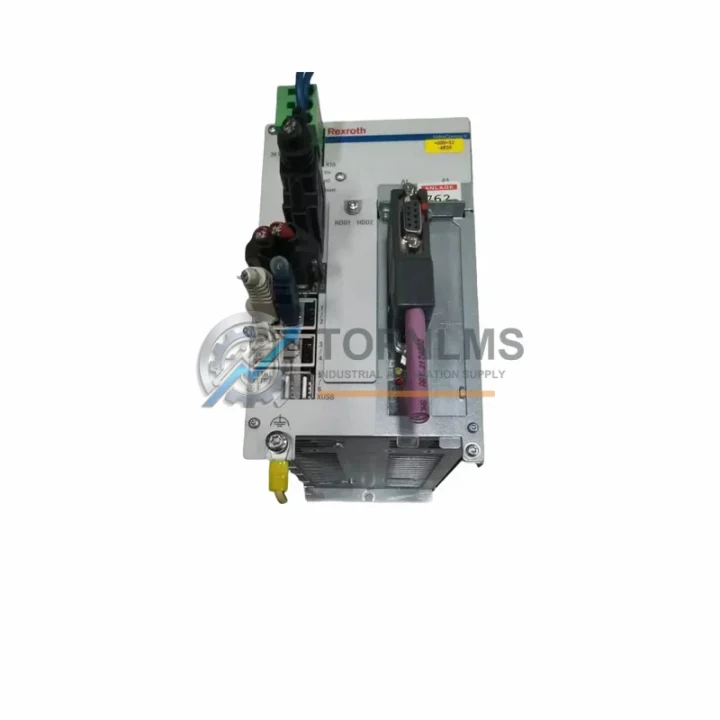

The Bosch Rexroth VPB40.3D1L-1G0NN-D1D-DN-NN-FW (R911171030) is a genuine original IndraControl VPB40 series Panel PC engineered for demanding industrial automation environments. In modern manufacturing facilities, the HMI and panel PC layer is the critical interface between operators and the control system — a failed or degraded panel PC can bring an entire production line to a halt within minutes. Sourcing a verified original spare unit of the VPB40.3D1L-1G0NN-D1D-DN-NN-FW ensures that your maintenance team can execute rapid, like-for-like replacement without reconfiguration delays, firmware compatibility risks, or extended commissioning time.

Whether your facility operates Bosch Rexroth IndraMotion, IndraLogic, or a hybrid Rexroth/Siemens control architecture, the VPB40 series panel PC integrates seamlessly as the operator interface layer. Its robust industrial-grade housing, wide operating temperature tolerance, and fanless design make it a preferred choice for control cabinets in automotive assembly, press lines, injection moulding, and heavy process industries. Maintaining at least one verified spare unit of the VPB40.3D1L-1G0NN-D1D-DN-NN-FW in your on-site inventory is a foundational element of any serious preventive maintenance programme.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned inspection or emergency replacement of the VPB40.3D1L-1G0NN-D1D-DN-NN-FW, experienced maintenance engineers know that the panel PC rarely fails in isolation. The surrounding control cabinet ecosystem must be evaluated simultaneously to prevent repeat downtime events within the same maintenance window.

Begin by inspecting the 24 VDC power supply module feeding the panel PC — Bosch Rexroth HMD and HCS series power supply units are common companions in IndraControl cabinets, and a degraded power supply is a leading cause of intermittent panel PC faults. Simultaneously, check the PROFIBUS DP communication cable and connectors linking the VPB40 to the PLC or motion controller; cable insulation fatigue and connector oxidation are frequent culprits in communication timeout errors that are often misdiagnosed as panel PC failures.

The IndraControl XM22 or XM42 PLC/motion controller mounted in the same cabinet should be inspected for firmware version alignment with the VPB40 panel PC software. Mismatched firmware versions between the HMI and the controller can cause project loading failures after a panel PC swap. While the cabinet is open, verify the condition of the I/O expansion modules — particularly any Rexroth CML or CMS series I/O modules — as loose terminal connections on these units can generate spurious alarms that operators incorrectly attribute to the panel PC.

For facilities running legacy IndraMotion systems, it is advisable to also inspect the SERCOS III or PROFINET communication modules and their fibre-optic or copper ring connections. A single degraded node in the SERCOS ring can cause the entire drive network to drop, with the VPB40 panel PC displaying the fault — again leading to misdiagnosis. Proactively stocking a spare Rexroth IndraDrive Cs or IndraDrive Mi servo drive module alongside the VPB40 spare is a best practice for automotive and press-line environments where axis faults and HMI faults frequently co-occur.

Do not overlook the UPS module or battery backup unit within the control cabinet. An ageing UPS that fails to hold voltage during a mains dip can corrupt the panel PC’s operating system partition, turning what should be a simple power event into a full OS recovery exercise. Finally, inspect the terminal blocks and fuse modules on the 24 VDC distribution rail — a blown fuse or a loose terminal on the panel PC supply circuit is one of the most common and most easily preventable causes of unplanned HMI downtime.

Strategic Replacement Solutions

The VPB40.3D1L-1G0NN-D1D-DN-NN-FW is a direct original replacement for earlier VPB40 series variants, including units running older Windows CE or Windows XP Embedded operating systems that have reached end-of-support. By replacing an ageing panel PC with a verified original VPB40.3D1L-1G0NN-D1D-DN-NN-FW unit, maintenance teams avoid the engineering overhead of cross-platform migration, retain full compatibility with existing IndraWorks project files, and eliminate the risk of driver incompatibilities that arise when substituting third-party HMI hardware.

For facilities managing a fleet of Rexroth-controlled machines, a standardised spare strategy built around the VPB40 series reduces the number of unique spare part numbers that must be held in stock. A single verified spare can cover multiple machine types within the same product family, reducing inventory carrying costs while maintaining sub-four-hour replacement capability — a key metric for OEE-focused maintenance organisations. Pre-tested and pre-configured spare units, loaded with the correct IndraWorks project image, can reduce mean time to repair (MTTR) from several hours to under thirty minutes.

All units supplied by TOPNLMS are inspected, function-tested, and shipped with full documentation. Each unit carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are packed in anti-static, shock-resistant packaging suitable for international air and sea freight.

Support FAQ

Q1: Is the VPB40.3D1L-1G0NN-D1D-DN-NN-FW compatible with my existing IndraWorks project?
A: Yes. The VPB40.3D1L-1G0NN-D1D-DN-NN-FW is designed for direct compatibility with IndraWorks DS and IndraWorks Engineering project files. Provided your project was developed for the VPB40 hardware platform, no re-engineering is required. We recommend verifying the firmware version of your existing unit before ordering to ensure a matched replacement.

Q2: What is the lead time and how is the unit tested before shipment?
A: In-stock units are dispatched within 1–3 business days. Each unit undergoes a power-on functional test, display verification, and communication interface check prior to packaging. A test report is available upon request. Express air freight options are available for urgent breakdown situations.

Q3: How should I manage spare part lifecycle for the VPB40 series?
A: Bosch Rexroth has announced end-of-production for several VPB40 sub-variants. We recommend procuring at least one verified spare unit now while original stock remains available. For facilities with three or more VPB40-equipped machines, a two-unit spare holding is advisable to cover simultaneous or back-to-back failure events.

Q4: What warranty and after-sales support is provided?
A: All units carry a 12-month warranty from the date of shipment. Warranty covers functional defects under normal industrial operating conditions. Our technical team is available to assist with compatibility verification, installation guidance, and firmware matching prior to purchase. Contact us at [email protected] or +86 18359293191.
