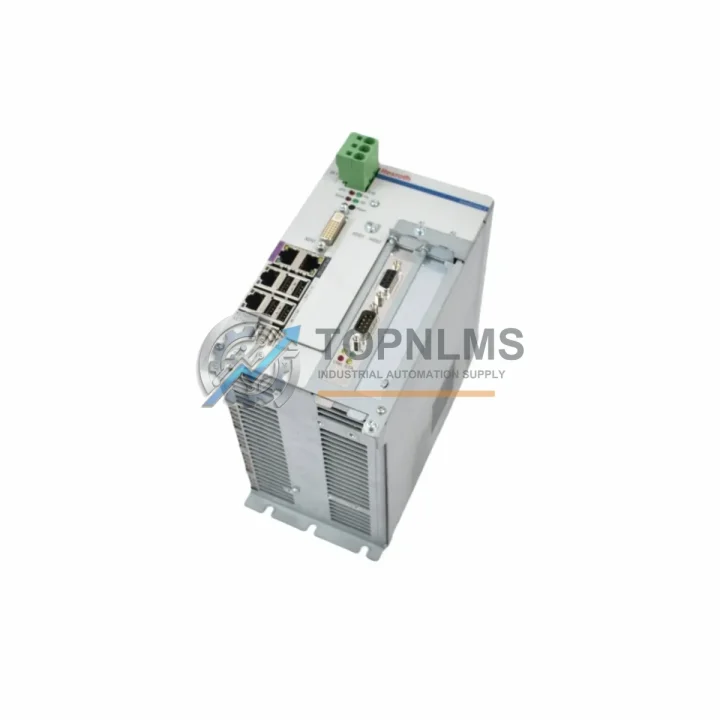

Bosch Rexroth MV-VPB40*3-PB002 Original Industrial Spare VPB Compatible

Product Overview

Bosch Rexroth MV-VPB40*3-PB002 Original Industrial Spare VPB Compatible: System Stability and Industrial Spare Parts Maintenance Value

The Bosch Rexroth MV-VPB40*3-PB002 (VPB-38/43-AC2-715, R91133860) is an original HMI panel unit engineered for demanding industrial automation environments. As a genuine Bosch Rexroth VPB Series component, this panel serves as a critical human-machine interface in a wide range of manufacturing, process control, and machine tool applications. Whether you are managing a scheduled maintenance shutdown, responding to an unplanned line stoppage, or building a strategic spare parts inventory, securing an original replacement unit is the single most effective step to restoring system stability and minimizing production loss.

Industrial facilities running legacy Bosch Rexroth control architectures depend on the VPB Series HMI for real-time process visualization, operator input, and alarm management. When a panel fails or degrades, the entire control loop is compromised. Sourcing an original MV-VPB40*3-PB002 — rather than an unverified substitute — ensures full electrical and firmware compatibility with the existing control cabinet, preserving the integrity of your automation system without costly re-engineering.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance strategy for any control cabinet housing the MV-VPB40*3-PB002 should extend well beyond the HMI panel itself. During a scheduled inspection or corrective maintenance visit, maintenance engineers should treat the panel replacement as an opportunity to audit the health of the entire control loop.

Begin with the PROFIBUS communication cable connecting the HMI to the PLC or drive controller. Degraded shielding or loose connectors are a leading cause of intermittent HMI faults that are often misdiagnosed as panel failures. At the same time, inspect the 24 VDC power supply module feeding the panel — voltage ripple or under-voltage conditions accelerate display aging and can corrupt operator input data.

Within the same cabinet, the Bosch Rexroth I/O modules (digital and analog) connected to the same PLC rack should be checked for loose terminal connections and error LEDs. A failing I/O module can generate false alarms that appear on the HMI screen, leading to unnecessary panel replacements. Similarly, relay output modules in the control circuit should be tested for contact wear, particularly in high-cycle applications such as conveyor control or press automation.

The terminal blocks and DIN rail assemblies within the cabinet deserve attention during every shutdown. Loose or corroded terminals cause intermittent signal faults that are difficult to trace and can damage connected modules over time. If the cabinet includes a signal isolator or analog signal conditioner, verify that isolation resistance remains within specification — degraded isolation is a common root cause of ground loop interference affecting HMI display accuracy.

For systems using Bosch Rexroth communication modules (PROFIBUS-DP, PROFINET, or DeviceNet gateways), firmware version compatibility with the replacement HMI panel should be confirmed before commissioning. Mismatched firmware between the panel and the communication gateway is a known source of startup failures after spare part replacement.

Facilities managing older Bosch Rexroth CNC or drive systems should also maintain stock of the controller backplane or rack assembly associated with the VPB Series. Backplane connector wear is a silent failure mode that only manifests under vibration or thermal cycling. Keeping a tested spare backplane alongside the HMI panel significantly reduces mean time to repair (MTTR) during an unplanned outage.

Finally, if the control cabinet includes a fuse module or circuit protection assembly for the HMI power circuit, replace fuses proactively during the same maintenance window. The cost of a fuse is negligible compared to the labor cost of a second maintenance visit caused by a blown fuse discovered after the new panel is installed.

Strategic Replacement Solutions

The MV-VPB40*3-PB002 is a direct original replacement for aging VPB-38 and VPB-43 series HMI panels installed in Bosch Rexroth control systems manufactured from the late 1990s through the 2010s. Many of these systems remain in active production service because the underlying control logic and drive architecture continue to perform reliably — the HMI panel is simply the component most exposed to operator interaction, environmental dust, and thermal stress, and therefore the first to require replacement.

Using an original Bosch Rexroth MV-VPB40*3-PB002 eliminates the compatibility risks associated with third-party HMI substitutes. Aftermarket panels frequently require custom communication drivers, modified PLC programs, or physical cabinet modifications — all of which introduce downtime, engineering cost, and validation risk. The original spare part installs in the existing panel cutout, connects to the existing PROFIBUS or serial wiring, and communicates with the existing PLC program without modification.

For facilities managing a fleet of machines with VPB Series HMIs, a strategic inventory of one or two MV-VPB40*3-PB002 units provides insurance against multi-machine downtime scenarios. The 12-month warranty from shipment date means that even panels held in reserve inventory are covered during the storage period, making forward stocking a low-risk procurement decision.

When planning a system life extension project for aging Bosch Rexroth control architecture, the HMI panel is typically the first component to be refreshed. Replacing the MV-VPB40*3-PB002 as part of a planned life extension — rather than waiting for failure — allows the replacement to be scheduled during a planned production window, avoiding the premium costs of emergency procurement and expedited shipping.

Support FAQ

Q1: Is the MV-VPB40*3-PB002 tested before shipment?
Yes. Every unit undergoes a powered-on functional test prior to dispatch. Basic display, communication port, and input response are verified. A test report is available upon request for quality-critical applications.

Q2: What warranty is provided, and does it cover units held in spare parts inventory?
All units carry a 12-month warranty from the date of shipment. Units purchased for spare parts inventory are covered from the shipment date, not the installation date. We recommend documenting the shipment date for warranty tracking purposes.

Q3: How do I verify compatibility with my existing Bosch Rexroth control system before installation?
Confirm that your existing system uses the VPB-38 or VPB-43 panel form factor and the PB002 communication variant (PROFIBUS). Cross-reference the material number R91133860 with your existing panel label or system documentation. If you require compatibility confirmation before purchase, contact our technical team with your machine model and existing panel label photograph.

Q4: What is the recommended spare parts lifecycle strategy for VPB Series HMI panels?
For facilities with three or more machines using VPB Series HMIs, we recommend maintaining at least one MV-VPB40*3-PB002 unit in local inventory at all times. Panel backlight life is typically 50,000 hours under normal operating conditions. Proactive replacement at 80% of rated backlight life — combined with annual inspection of the touchscreen and communication ports — is the most cost-effective strategy for avoiding unplanned downtime.
