Bosch Rexroth HSM01.1-FW Original Industrial Spare IndraDrive Compatible

Product Overview

Bosch Rexroth HSM01.1-FW Original Industrial Spare IndraDrive Compatible: System Stability & Industrial Spare Maintenance Value

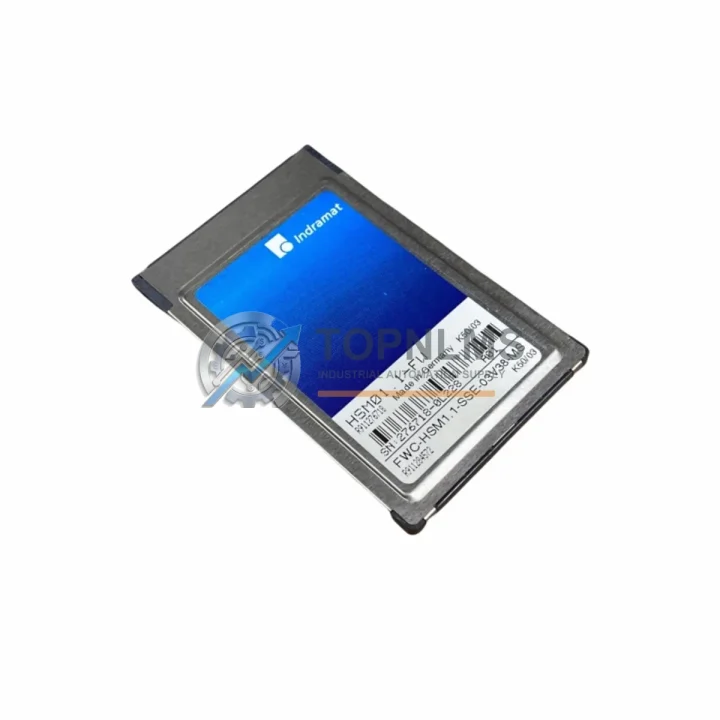

The Bosch Rexroth HSM01.1-FW is an original firmware memory module engineered specifically for the IndraDrive series of digital AC servo drives and frequency converters. In industrial environments where drive system uptime is non-negotiable, the HSM01.1-FW serves as the critical firmware carrier that defines drive behavior, parameter sets, and communication protocols. Replacing or restoring this module with a genuine original part ensures that your IndraDrive system operates exactly as commissioned — without the risk of firmware mismatch, parameter corruption, or unexpected fault codes that can cascade into costly unplanned downtime.

For maintenance engineers managing aging servo drive infrastructure, the HSM01.1-FW represents one of the most strategically important spare parts to stock. Drive firmware modules are frequently overlooked in preventive maintenance schedules until a failure occurs — at which point sourcing a genuine replacement under production pressure becomes both expensive and time-consuming. Stocking the HSM01.1-FW in advance eliminates this vulnerability entirely.

Critical Technical Specifications

Preventive Maintenance Strategy

When scheduling a planned maintenance window for an IndraDrive-based servo system, the HSM01.1-FW should be treated as part of a broader inspection and spare-parts audit. Drive firmware modules do not wear out under normal operation, but they are vulnerable to data corruption from power surges, improper shutdowns, or electrostatic discharge during servicing. A proactive approach means having a verified spare on the shelf before any issue arises.

During a control cabinet inspection, maintenance teams should simultaneously audit the condition of the IndraDrive power supply module (HMV01) and the drive controller section (CSB01 or CSE02), as these components share the same firmware ecosystem and a failure in any one of them may require a coordinated replacement. The IndraDrive capacitor module (HLC01) should also be checked for capacitance degradation, particularly in drives that have been in service for more than five years.

For multi-axis systems, the IndraDrive axis module (HMD01) and associated motor feedback cables (IKS series) are common wear items that should be inspected alongside any firmware-related maintenance. Damaged or degraded feedback cables can generate encoder errors that are frequently misdiagnosed as firmware faults, leading to unnecessary module replacements. Keeping a stock of IKS4043 or IKS0223 feedback cables alongside the HSM01.1-FW eliminates this diagnostic ambiguity.

In facilities running Bosch Rexroth IndraControl L (ILC) or IndraControl V (IVC) PLCs in conjunction with IndraDrive systems, the SERCOS III or PROFIBUS communication modules installed in the drive should be inspected for firmware compatibility whenever the HSM01.1-FW is updated or replaced. Communication module firmware and drive firmware must remain synchronized to prevent bus faults. Additionally, IndraDrive terminal blocks and I/O extension modules (DA300 series) should be checked for loose connections and contact oxidation during the same maintenance cycle.

For facilities with legacy Rexroth DIAX04 or ECODRIVE03 drive systems operating alongside IndraDrive units, maintaining a cross-compatible spare inventory that includes both HSM01.1-FW for IndraDrive and the equivalent firmware modules for older drive generations is a best practice that significantly reduces mean time to repair (MTTR) across the entire drive fleet.

Strategic Replacement Solutions

The HSM01.1-FW is the direct OEM replacement for the firmware memory function in all IndraDrive C and IndraDrive M platforms. Unlike third-party or cloned firmware carriers, the original Bosch Rexroth HSM01.1-FW guarantees full compatibility with Rexroth’s IndraWorks DS commissioning software, ensuring that parameter upload, firmware update, and drive diagnostics proceed without error.

For facilities transitioning from older IndraDrive generations, the HSM01.1-FW supports a non-invasive upgrade path: the existing drive hardware can be retained while the firmware is updated to the latest stable release, extending the operational life of the drive system by several years without the capital expenditure of a full drive replacement. This approach is particularly valuable in industries such as automotive manufacturing, printing, and food processing, where machine retooling costs are prohibitive.

When a drive fault is traced to a corrupted or failed firmware module, the HSM01.1-FW enables a same-shift replacement that restores the drive to full operation in under 30 minutes — provided the replacement module is pre-loaded with the correct firmware version and parameter backup. TOPNLMS recommends maintaining a pre-configured spare with the site-specific parameter set archived, so that field technicians can execute the swap without requiring engineering support on-site.

All HSM01.1-FW units supplied by TOPNLMS are tested prior to dispatch, verified for firmware integrity, and shipped with full documentation. Each unit is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: How do I verify that the HSM01.1-FW is compatible with my specific IndraDrive unit?
Compatibility is determined by the drive’s hardware revision and the firmware version required by your application. Check the drive nameplate for the hardware index (e.g., HCS02.1E-W0054) and cross-reference with Bosch Rexroth’s firmware compatibility matrix in IndraWorks DS. Contact TOPNLMS with your drive model and hardware index for pre-purchase compatibility confirmation.

Q2: Can I stock the HSM01.1-FW as a long-term spare without risk of obsolescence?
Yes. The HSM01.1-FW is a passive memory module with no self-discharge or shelf-life limitation under proper storage conditions (dry, ESD-protected environment, 15–35°C). It is suitable for long-term strategic inventory and is recommended as a critical spare for any facility operating IndraDrive systems.

Q3: What pre-shipment testing does TOPNLMS perform on the HSM01.1-FW?
Each unit undergoes functional verification including firmware read/write integrity testing and physical inspection of the module connector and housing. Units are shipped in ESD-safe packaging with a test report available on request. The 12-month warranty covers all verified functional defects from the date of delivery.

Q4: How quickly can a field technician replace the HSM01.1-FW on-site?
With the drive powered down and a pre-configured replacement module available, the physical swap takes under five minutes. Firmware verification and parameter restore via IndraWorks DS typically adds 15–25 minutes depending on system complexity. No special tools are required for the module exchange itself.
