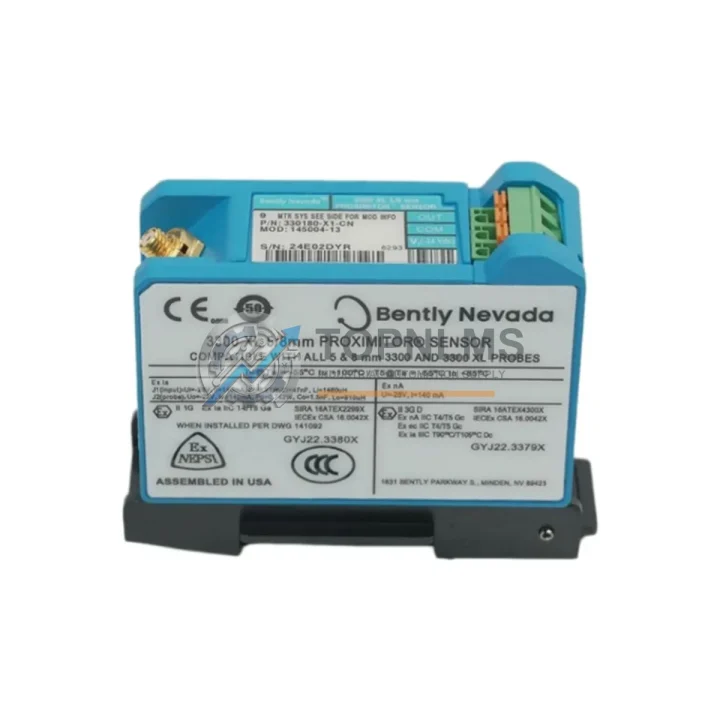

Bently Nevada 330380-90-00 Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330380-90-00 Original Industrial Spare 3300 XL: System Stability and Industrial Spare Maintenance Value

In high-stakes industrial environments — rotating machinery, turbines, compressors, and critical drive trains — continuous vibration monitoring is not optional. The Bently Nevada 330380-90-00 is an original high-temperature eddy-current proximity probe from the renowned 3300 XL Series, engineered to deliver precise, non-contact shaft displacement and vibration measurements in the most demanding plant conditions. Whether you are managing a scheduled overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory, the 330380-90-00 is a mission-critical component that directly determines your system’s uptime and reliability.

Sourced as an original Bently Nevada spare, this probe is fully compatible with the 3300 XL signal conditioning system and integrates seamlessly into existing Bently Nevada monitoring architectures without requiring recalibration of the entire measurement chain. For maintenance engineers and reliability teams, this means faster swap-out, reduced commissioning time, and confidence that the replacement part meets the original OEM specification.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity probe failure rarely occurs in isolation. In a typical rotating machinery monitoring system, the 330380-90-00 probe operates as part of a complete measurement chain. When performing a scheduled inspection or responding to a vibration alarm, experienced maintenance teams know that replacing the probe alone is only the first step. A thorough inspection should also cover the 3300 XL extension cable (330130 series) for insulation damage, connector corrosion, or mechanical stress fractures — particularly in high-vibration zones near bearing housings.

The 3300 XL Proximitor / Signal Conditioner (330180 series) mounted in the control cabinet should be verified for correct bias voltage output and gap voltage linearity. If the proximitor shows drift or erratic output, it is best practice to replace it alongside the probe to eliminate compounding measurement errors. Similarly, the 3300 XL barrier isolator or Zener barrier in the intrinsically safe circuit should be inspected for continuity and correct clamping voltage, especially in hazardous area installations.

At the control cabinet level, the Bently Nevada 3500 Series rack — including the 3500/42M Proximitor I/O Module and the 3500/15 Power Supply Module — should be checked for alarm relay output integrity and power rail stability. A failing power supply module can introduce noise into the entire monitoring loop, causing false alarms or masking genuine vibration events. Spare 3500/15 power supply modules and 3500/42M I/O modules are therefore logical additions to any strategic spare parts plan for plants running Bently Nevada 3500 monitoring systems.

For plants operating older Bently Nevada 7200 Series or 3300 Series (non-XL) systems, it is worth auditing whether the existing probes and proximitors are still within their calibration and service life. Probes operating beyond 5–7 years in high-temperature or high-vibration environments are statistically more prone to sensitivity drift. Proactive replacement with 3300 XL equivalents — including the 330380-90-00 — during planned shutdowns avoids the far greater cost of an unplanned trip.

Terminal blocks, DIN rail-mounted signal isolators, and fuse modules within the vibration monitoring panel should also be inspected during the same maintenance window. Loose terminal connections and blown fuses are common root causes of intermittent channel faults that are often misdiagnosed as probe failures. Keeping a small buffer stock of compatible Phoenix Contact or Weidmüller terminal blocks and 10 × 38 mm ceramic fuses rated for the monitoring circuit voltage ensures these minor issues can be resolved without extending the shutdown window.

Strategic Replacement Solutions

The 330380-90-00 is a direct OEM replacement for worn, damaged, or end-of-life proximity probes in the 3300 XL measurement chain. Because it is an original Bently Nevada part, it requires no sensitivity factor adjustment in the monitoring system — the standard 200 mV/mil (7.87 V/mm) scale factor applies directly, preserving alarm and danger setpoints without reconfiguration.

For plants transitioning from older Bently Nevada 3300 (5 mm) probes to the 3300 XL platform, the 330380-90-00 provides a clear upgrade path: improved temperature tolerance, enhanced EMI rejection, and a more robust connector system reduce nuisance trips and extend mean time between replacements. Maintenance planners can phase in 3300 XL probes and proximitors during scheduled outages without a full system replacement, protecting the capital investment in existing 3500 Series racks and I/O modules.

Stocking one or two 330380-90-00 units per critical machine train — particularly for steam turbines and centrifugal compressors where unplanned downtime costs can reach tens of thousands of dollars per hour — is a straightforward risk mitigation measure. The probe’s compact form factor and standardized thread pitch mean that field replacement can typically be completed within a single shift, minimizing mean time to repair (MTTR) and restoring full monitoring coverage quickly.

Support FAQ

Q1: Is the 330380-90-00 compatible with my existing 3300 XL Proximitor and extension cable?
Yes. The 330380-90-00 is designed as a matched component within the 3300 XL eddy-current transducer system. It is fully compatible with 3300 XL Proximitors (330180 series) and 3300 XL extension cables (330130 series). No sensitivity factor adjustment is required when replacing a like-for-like 3300 XL probe.

Q2: What pre-shipment testing is performed on this probe?
Each 330380-90-00 unit is inspected and electrically tested prior to dispatch. Testing covers DC resistance, insulation integrity, and bias voltage output verification against the standard 3300 XL specification. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this probe be used as a direct replacement in a Bently Nevada 3500 Series monitoring rack?
Yes. The 3300 XL probe system (probe + extension cable + proximitor) interfaces directly with the Bently Nevada 3500/42M Proximitor I/O Module. The 330380-90-00 probe, when paired with the correct 3300 XL proximitor, will operate within the 3500 rack’s expected input range without requiring rack reconfiguration.

Q4: What is the recommended spare parts strategy for plants with multiple 3300 XL probe installations?
For critical machine trains (turbines, compressors), we recommend maintaining a minimum of one spare probe per measurement plane (X and Y radial, plus axial if applicable). For plants with 10 or more 3300 XL probe channels, a buffer of 2–3 spare probes, one spare proximitor, and one spare extension cable set provides adequate coverage for both corrective and preventive replacement scenarios without excessive inventory carrying cost.
