Bently Nevada 330232-05-05-12-05 Original Industrial Spare 3300 XL Compatible: Ensuring System Stability in Critical Rotating Machinery Monitoring

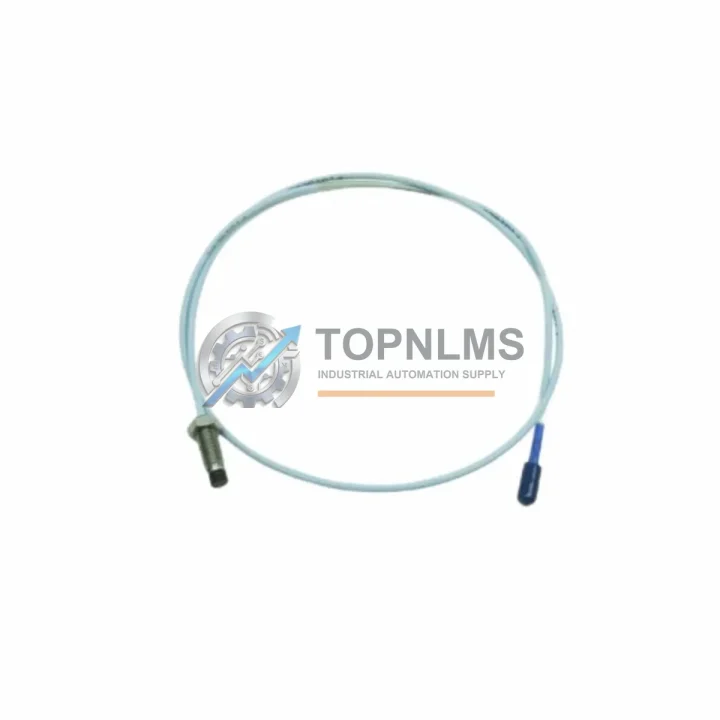

The Bently Nevada 330232-05-05-12-05 is an original eddy-current proximity transducer from the industry-leading 3300 XL 8mm series, engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in turbines, compressors, pumps, and other rotating machinery. In industrial facilities where unplanned downtime translates directly into production loss and safety risk, maintaining a verified spare of this transducer is not optional — it is a fundamental pillar of any responsible predictive maintenance and asset protection strategy.

This transducer operates as the primary sensing element in Bently Nevada’s 3300 XL monitoring system, converting mechanical displacement into a precise electrical signal that feeds into the monitoring rack for real-time analysis. Its 8mm tip diameter and standardized cable configuration make it a direct, drop-in replacement for aging or failed units without requiring system reconfiguration or recalibration of the entire monitoring loop — a critical advantage during emergency shutdowns where every minute of downtime carries measurable cost.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proximity transducer failure in a critical rotating machine rarely occurs in isolation. The 330232-05-05-12-05 is one node in a tightly integrated vibration monitoring loop, and a comprehensive maintenance inspection should treat the entire signal chain as a single system. When scheduling a planned outage or responding to a transducer alarm, maintenance engineers should simultaneously inspect the 330130-080-01-00 Proximitor® sensor driver, which conditions the transducer output and is equally subject to drift and failure over time. A faulty Proximitor can produce false readings that mimic transducer degradation, making it essential to verify both components before condemning either.

The extension cable — typically a 330030-series armored extension cable — is another high-wear item that should be inspected for jacket abrasion, connector corrosion, and impedance continuity during every scheduled outage. Damaged extension cables introduce signal noise that degrades the accuracy of vibration trend data and can trigger nuisance trips. Alongside the cable, inspect the 3300 XL junction box or field wiring terminal block for moisture ingress, loose terminations, and corrosion, particularly in outdoor or high-humidity installations.

For facilities running Bently Nevada 3500 series monitoring racks, the 330232-05-05-12-05 is commonly used in conjunction with 3500/42M Proximitor®/Seismic Monitor modules and 3500/22M Transient Data Interface modules. These rack-mounted modules should be inspected for firmware currency and I/O channel calibration during the same maintenance window. A calibration drift in the monitor module will invalidate the transducer’s precision regardless of the sensor’s own condition.

Power supply integrity is equally critical. The 3500/15 Power Supply module or equivalent -24 VDC supply rail feeding the Proximitor should be load-tested and its output ripple measured. An unstable supply voltage directly corrupts the transducer’s DC output, producing erratic gap readings. Facilities with aging power infrastructure should consider stocking a spare power supply module alongside the transducer itself.

For machines where the 330232-05-05-12-05 monitors axial position — such as steam turbines with thrust bearing wear detection — it is prudent to simultaneously inspect the thrust bearing temperature sensors (RTDs or thermocouples) and the 3500/60 Temperature Monitor module. Axial position and bearing temperature data are complementary indicators of thrust bearing health, and a failure in either monitoring channel reduces the operator’s ability to detect an impending bearing failure before catastrophic damage occurs.

Finally, for facilities managing multiple machines on a common DCS or safety system, ensure that the 4–20 mA output interface cards or Modbus/OPC communication gateways connecting the 3500 rack to the plant DCS are included in the inspection scope. Signal integrity at the system integration layer is as important as the transducer itself for maintaining reliable machine protection.

Strategic Replacement Solutions

The 330232-05-05-12-05 is a direct replacement for earlier 3300 XL 8mm transducers that share the same tip geometry, cable configuration, and Proximitor compatibility. Facilities still operating legacy 330100-series or early 330200-series transducers can upgrade to the 330232-05-05-12-05 without modifying existing mounting brackets, conduit runs, or monitor rack configurations, provided the Proximitor driver is also a 3300 XL-compatible unit. This backward compatibility is a significant operational advantage: it allows maintenance teams to standardize their spare parts inventory on a single, current-production SKU rather than maintaining stocks of multiple obsolete part numbers.

For facilities facing long lead times on OEM procurement — a common challenge in the current industrial supply environment — having a verified, tested spare of the 330232-05-05-12-05 on the shelf eliminates the risk of extended downtime while waiting for factory delivery. A single unplanned outage on a critical compressor or turbine train can cost orders of magnitude more than the cost of maintaining a strategic spare inventory. The replacement procedure for this transducer is straightforward: remove the failed unit, install the replacement at the same gap setting (typically 1.0 mm for a 3300 XL 8mm system), verify the Proximitor output voltage, and return the machine to service — a process that a trained technician can complete in under two hours.

For aging facilities planning a phased migration from 3300 XL to 3500 series monitoring architecture, the 330232-05-05-12-05 transducer remains fully compatible with both platforms, making it a bridge component that supports the transition without forcing an immediate, full-system replacement. This compatibility reduces capital expenditure during the migration period and allows facilities to prioritize monitor rack upgrades while continuing to use existing field-installed transducers.

Support FAQ

Q1: Is the 330232-05-05-12-05 compatible with both 3300 XL and 3500 series monitoring systems?
Yes. The 330232-05-05-12-05 is designed for the 3300 XL 8mm Proximitor system and is also compatible with 3500 series racks when paired with the appropriate 3300 XL Proximitor driver. Always verify the Proximitor model number to confirm compatibility before installation.

Q2: What pre-shipment testing is performed on this transducer?
Each unit undergoes functional verification including scale factor measurement, linearity check across the full 0–2.0 mm range, and connector integrity inspection before shipment. A test report is available upon request for quality-critical applications.

Q3: How should this transducer be stored if purchased as a strategic spare?
Store in the original packaging in a dry, temperature-controlled environment (10°C to 40°C), away from strong magnetic fields and mechanical shock. Inspect the connector and cable jacket annually. Shelf life under proper storage conditions exceeds five years without performance degradation.

Q4: What is covered under the 12-month warranty?
