Bently Nevada 330196-05-30-10-CN Replacement for 3300 XL

Product Overview

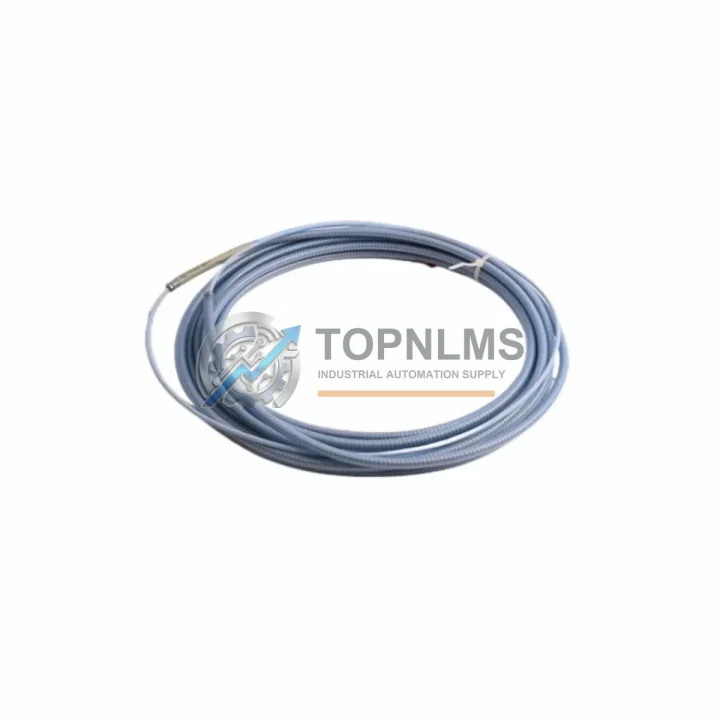

Bently Nevada 330196-05-30-10-CN Replacement for 3300 XL Series: Seamless Transition & Legacy System Compatibility

The Bently Nevada 330196-05-30-10-CN is a 3300 XL Series eddy-current proximity sensor widely deployed in rotating machinery protection and condition monitoring systems across oil & gas, power generation, petrochemical, and heavy industrial facilities. As original Bently Nevada 3300 XL inventory becomes increasingly constrained and legacy systems approach end-of-support cycles, plant engineers and reliability teams are actively seeking verified replacement and upgrade paths that preserve existing wiring infrastructure, signal conditioning compatibility, and system architecture integrity.

This listing provides a fully tested, specification-matched replacement for the 330196-05-30-10-CN, engineered to integrate directly into existing 3300 XL measurement chains without requiring rewiring, recalibration of the proximitor/driver, or modification to the monitoring rack. Whether you are executing a planned outage swap, responding to an unplanned sensor failure, or building a strategic spare-parts inventory for a critical asset, this unit ships ready for immediate installation.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration-Ready Components for 3300 XL Systems

A successful sensor replacement within a Bently Nevada 3300 XL measurement chain rarely involves the sensor alone. In practice, field engineers conducting a planned or emergency swap will simultaneously inspect and often replace adjacent components to ensure the entire signal path is restored to specification. The 330196-05-30-10-CN sensor operates as part of a three-component eddy-current system: the sensor itself, the extension cable, and the proximitor/driver module.

When replacing this sensor, the 330130-080-00-05 extension cable (5-metre, armored, 3300 XL compatible) is the most commonly co-ordered item, as cable jacket degradation and connector corrosion are frequent failure modes in high-vibration, high-temperature environments. The proximitor driver — typically a 330180-X0-00 or 330180-51-00 3300 XL 8mm Proximitor — should be bench-tested during the outage window; if the proximitor shows drift or output offset, replacing it alongside the sensor eliminates the risk of a second unplanned shutdown.

For facilities running a Bently Nevada 3500 Series monitoring rack, the sensor integrates directly with 3500/40M, 3500/42M, and 3500/46M monitor modules without firmware changes or I/O reconfiguration. Plants that have already migrated their rack infrastructure to the 3500 Series from older 7200 Series or 3300 Series hardware will find that the 330196-05-30-10-CN replacement slots into the existing measurement chain with no changes to the Rack Configuration Software (RCS) database, provided the channel is already configured for 8mm eddy-current input.

In turbomachinery and compressor train applications, this sensor is frequently installed alongside 330103-00-08-10-02-00 radial vibration sensors and 330850-50-00 thrust position sensors, forming a complete shaft monitoring suite. When executing a full bearing housing sensor refresh, sourcing all three sensor types simultaneously reduces total outage duration and simplifies post-installation loop checks. Additionally, facilities using Keyphasor modules — such as the 330980-50-05 — should verify Keyphasor gap voltage during the same maintenance window, as Keyphasor signal integrity directly affects vibration vector calculations across all radial channels.

For plants integrating Bently Nevada data into a broader DCS or SCADA environment via System 1 software or third-party OPC-DA/OPC-UA gateways, no changes to the communication layer are required when performing a like-for-like sensor swap. The 3500 rack continues to publish the same tag structure and alarm setpoints to the control system, preserving historian continuity and avoiding the need for operator retraining or alarm rationalization reviews.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the 330196-05-30-10-CN?
A: Yes. The replacement unit uses the same connector pinout and cable interface as the original. Provided the extension cable and field junction box connectors are in good condition, no rewiring is required. Inspect the MIL-C-5015 connector contacts for corrosion or fretting before reconnecting.

Q: Do I need to recalibrate the proximitor after installing the replacement sensor?
A: Not for a like-for-like replacement. The 3300 XL 8mm Proximitor is factory-calibrated for use with AISI 4140 steel targets and 5-metre cable systems. If the target material or cable length differs from the original configuration, a gap calibration check is recommended per Bently Nevada installation procedures.

Q: Is this sensor compatible with both 3300 Series and 3500 Series monitoring racks?
A: Yes. The 330196-05-30-10-CN and its replacement are compatible with both the legacy 3300 Series rack and the current-generation 3500 Series rack. No channel reconfiguration is required in the Rack Configuration Software when performing a sensor swap on an existing, commissioned channel.

Q: What is the physical installation clearance requirement?
A: The sensor uses a standard M8 x 1.0 threaded body. Installation requires access to the bearing housing probe boss and sufficient clearance for the locknut and cable routing. The physical envelope is identical to the original, so no machining or bracket modification is needed.

Q: Can this sensor be used with non-steel target materials?
A: The standard calibration is optimized for AISI 4140 steel. Use with other target materials (e.g., titanium, Inconel, aluminum) requires a material correction factor per Bently Nevada application guidelines. Contact our technical team for material-specific gap calibration data.

Q: What communication protocols does the 3500 rack support when using this sensor?
A: The 3500 Series rack supports Modbus RTU/TCP, OPC-DA, OPC-UA (via System 1 gateway), and 4–20 mA analog output depending on the monitor module configuration. The sensor itself is a passive analog device; protocol selection is determined at the rack and gateway level, not the sensor level.

Warranty Assurance

Every 330196-05-30-10-CN replacement unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including output linearity check, connector integrity inspection, and cable continuity test. Units are packaged in anti-static, shock-resistant packaging suitable for international air and sea freight.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation verification, gap setting confirmation, and loop check guidance. Typical order processing time is 1–3 business days, with express shipping options available for emergency breakdown situations. Stock availability is confirmed at time of order; we maintain buffer inventory for high-demand 3300 XL Series components to support unplanned outage requirements.

For volume procurement, blanket orders, and consignment stock arrangements for critical spare parts programs, please contact our industrial sales team directly.
