Bently Nevada 16710-17 Replacement for 3300/7200 Series

Product Overview

Bently Nevada 16710-17 Replacement for 3300/7200 Series: Seamless Transition & Upgrade Solution

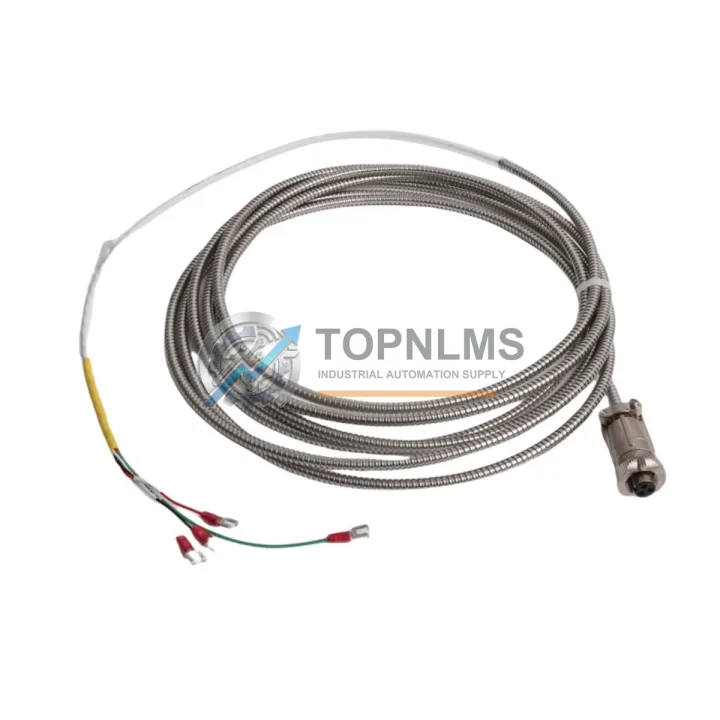

The Bently Nevada 16710-17 Proximity Probe Interconnect Cable is a critical field-wiring component within the Bently Nevada 3300 Series and 7200 Series continuous vibration monitoring systems. As legacy installations age and OEM support for discontinued configurations becomes increasingly limited, plant engineers and reliability teams face mounting pressure to source verified replacement cables that maintain full signal integrity without requiring re-engineering of the existing monitoring loop.

TOPNLMS supplies the 16710-17 as a direct replacement and upgrade solution for facilities operating Bently Nevada proximity systems across rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, gearboxes, and large induction motors. Our inventory is sourced from authorized distribution channels and subjected to pre-shipment functional verification to ensure every unit meets the original OEM electrical and mechanical specification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A proximity monitoring loop is only as reliable as its weakest interconnect. When replacing the 16710-17 cable, experienced reliability engineers typically audit the entire signal chain to eliminate latent failure points before returning the machine to service. In a typical Bently Nevada 3300 Series installation, the interconnect cable sits between the proximity probe tip assembly — such as the Bently Nevada 330101 or 330103 8mm proximity probe — and the 3300 XL Proximitor® Sensor driver module mounted in the field junction box or monitor rack.

If the existing 3300 XL Proximitor® Sensor (e.g., 330180-51-05) shows signs of output drift or has exceeded its recommended service interval, replacing it alongside the 16710-17 cable during the same planned outage eliminates a second unplanned shutdown. Similarly, the 3300/16 Dual Vibration Monitor rack card that receives the proximity signal should be inspected for firmware currency and channel calibration status — particularly in installations where the monitor has been in continuous service for more than ten years.

For facilities migrating from older 7200 Series field wiring to a modernized 3500 Series rack architecture, the 16710-17 cable can serve as an interim interconnect while the 3500/42M Proximitor I/O module is commissioned. The 3500/42M accepts the same –24 VDC proximity loop signal, meaning the probe and cable assembly can remain in place while the rack-side electronics are upgraded — a significant advantage for brownfield retrofits where machine downtime must be minimized.

In installations where the proximity probe is routed through a hazardous-area barrier, the Bently Nevada 3300/20 Zener Barrier or equivalent galvanic isolator should be verified for compatibility with the replacement cable’s capacitance specification. Mismatched cable capacitance is a common source of signal attenuation that is frequently overlooked during cable-only replacements. Pairing the 16710-17 with a verified 3300/20 barrier ensures the intrinsic safety loop remains within the certified entity parameters.

For sites operating Bently Nevada 7200 Series systems on older turbine control cabinets, the replacement cable is often installed alongside a 7200 Series Proximitor® Sensor driver and a TK-3 Terminal Block adapter kit to maintain backward compatibility with legacy DCS I/O marshalling panels. The terminal block adapter eliminates the need to re-terminate field wiring at the cabinet, reducing installation time from hours to minutes. Where the DCS front-end is a Honeywell TDC 3000 or Yokogawa CENTUM VP system, the analog proximity signal is typically wired through a signal isolator or HART multiplexer before entering the DCS I/O card — none of which are affected by the cable replacement.

Complete your upgrade kit with the Bently Nevada 330130-080-00-00 proximity probe (if the existing probe tip is worn), a 3300 XL 8mm Proximitor® Sensor, and a calibrated gap voltage verification tool to confirm the –10.0 VDC nominal gap output after installation. This three-component approach — cable, driver, and probe — constitutes a full proximity loop overhaul that restores the monitoring channel to as-new performance without requiring changes to the 3300/16 or 3500 rack configuration, DCS tag mapping, or alarm setpoints.

Retrofit Guidance FAQ

Q: Can I replace the 16710-17 cable without recalibrating the proximity gap?
A: Yes, provided the probe tip position (gap) has not changed. The interconnect cable is a passive component; replacing it does not alter the gap voltage. After installation, verify the DC gap voltage at the Proximitor® output terminals reads within the acceptable range (typically –10.0 VDC ±1.0 V for an 8mm probe at nominal gap). If the reading is outside this range, the cause is the probe gap, not the cable.

Q: Is the 16710-17 compatible with both 3300 XL and standard 3300 Proximitor® drivers?
A: Yes. The cable is a passive coaxial interconnect and is electrically compatible with all Bently Nevada 3300 Series and 7200 Series Proximitor® driver variants. No jumper or configuration change is required on the driver module.

Q: Will replacing this cable affect my DCS or PLC communication?
A: No. The 16710-17 carries an analog proximity signal between the probe and the Proximitor® driver. It has no digital communication interface. Your DCS, PLC, or safety system receives the processed 4–20 mA or voltage output from the monitor rack card — which is unaffected by the cable replacement.

Q: What is the physical installation space requirement?
A: The 16710-17 has the same outer diameter and connector footprint as the original OEM cable. No conduit enlargement, cable tray modification, or junction box re-drilling is required. The replacement is a direct mechanical fit.

Q: Can this cable be used in a hazardous area (Zone 1 / Division 1) installation?
A: The cable itself is a passive component. Hazardous-area compliance depends on the certified Zener barrier or galvanic isolator in the loop (e.g., Bently Nevada 3300/20 or equivalent). Verify that the replacement cable’s capacitance and inductance values remain within the entity parameters of your certified barrier before installation in a classified area.

Q: How long does installation take in the field?
A: A trained instrumentation technician can complete the cable swap in 15–30 minutes per channel, including connector torquing, continuity verification, and gap voltage confirmation. No special programming tools or software are required.

Q: What if my existing probe connector is corroded or damaged?
A: If the probe-side connector shows corrosion or mechanical damage, we recommend replacing the proximity probe assembly (e.g., Bently Nevada 330101 or 330103) at the same time. Attempting to mate a new cable to a damaged probe connector risks signal intermittency and premature cable failure.

Warranty Assurance

Every Bently Nevada 16710-17 Proximity Probe Interconnect Cable shipped by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our pre-shipment inspection process includes visual examination of connector terminations, coaxial shield continuity verification, and insulation resistance testing to confirm the cable meets OEM electrical specifications before it leaves our facility in Xiamen, China.

In the event of a verified product defect within the warranty period, TOPNLMS will arrange a replacement shipment at no additional cost. Our after-sales response team is reachable within one business day via email at [email protected] or by phone at +86 18359293191. We maintain standing inventory of the 16710-17 to support rapid dispatch — standard international shipping from Xiamen reaches most destinations in Asia within 3–5 business days, and global destinations within 5–10 business days depending on customs clearance.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of conformance, and country-of-origin declaration with every shipment. Bulk orders of five units or more qualify for priority processing and consolidated shipping to reduce per-unit freight cost. Contact our sales team to discuss volume pricing, lead times, and consignment stocking arrangements for maintenance, repair, and operations (MRO) programs.

TOPNLMS is committed to supporting industrial facilities through every phase of their control system lifecycle — from emergency spare procurement to planned upgrade campaigns — with verified parts, transparent documentation, and responsive after-sales support.
