Bently Nevada 330930-060-06-CN Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330930-060-06-CN Original Industrial Spare 3300 XL Compatible: System Stability and Industrial Spare Maintenance Value

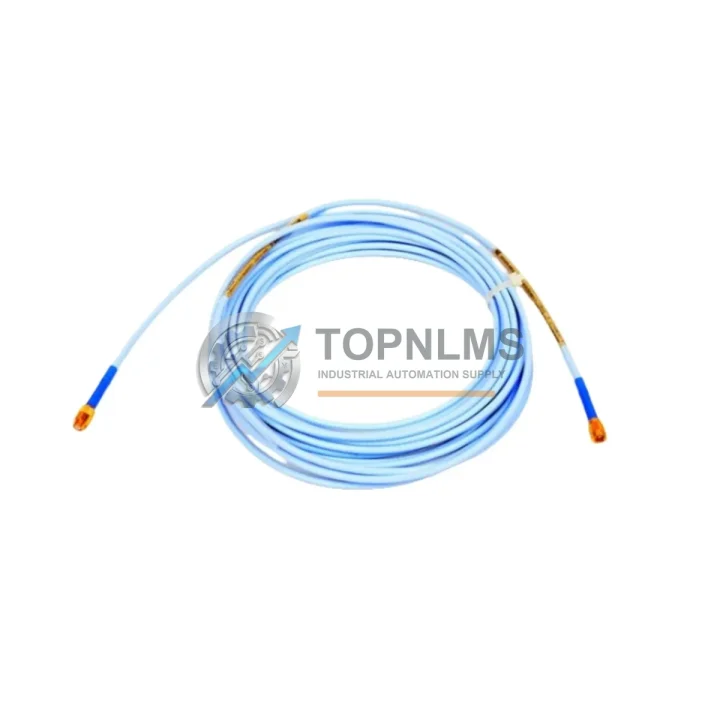

The Bently Nevada 330930-060-06-CN is a 9-meter extension cable engineered specifically for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for a turbine hall, compressor train, or pump skid, this cable is a mission-critical component that directly determines the reliability of your condition monitoring signal chain.

In industrial facilities where continuous operation is paramount — petrochemical plants, power generation stations, LNG terminals, steel mills, and offshore platforms — the integrity of the proximity transducer cable is often overlooked until a fault occurs. A degraded or failed extension cable introduces signal noise, causes false trips, or results in complete loss of vibration data, any of which can trigger costly unplanned downtime. Stocking the 330930-060-06-CN as a verified original spare eliminates this risk and ensures your maintenance team can execute a rapid, like-for-like replacement without waiting on lead times.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance programme for rotating machinery condition monitoring must treat the 330930-060-06-CN extension cable as part of a complete signal chain — not an isolated component. During scheduled outages or annual turnarounds, maintenance engineers should inspect and, where necessary, replace the full transducer assembly as a coordinated set.

Begin with the proximity probe itself — the Bently Nevada 330130-080-00-CN (8mm probe) or 330180-X1-CN (11mm probe) — which sits at the measurement point on the shaft or thrust collar. The probe tip condition, gap voltage, and connector integrity should be verified before reusing any cable. If the probe shows signs of wear, contamination, or sensitivity drift, replace it alongside the extension cable to avoid introducing a new cable into a degraded signal path.

Next, inspect the Bently Nevada 330500-02-CN Proximitor Sensor (driver/oscillator), which converts the probe’s eddy-current signal into a usable voltage output. The Proximitor is typically mounted in a junction box or on the machinery skid and is exposed to vibration, heat cycling, and moisture ingress. A failing Proximitor will produce erratic gap voltage readings even with a new cable installed — always verify driver output with a calibrated gap simulator before closing out the work order.

Within the control cabinet or rack room, check the Bently Nevada 3500/42M Proximitor/Seismic Monitor or equivalent 3300 Series monitor card. Loose terminal connections, corroded backplane contacts, or firmware mismatches between the monitor and the transducer system can cause measurement errors that are incorrectly attributed to cable faults. Inspect the 3500 Rack Power Supply (3500/15) at the same time — an under-voltage condition on the rack bus will affect all channels simultaneously and is a common root cause of multi-channel alarms during summer peak loads.

For facilities running mixed Bently Nevada and third-party systems, also verify the 3500/20 Rack Interface Module (RIM) and any associated TDXnet or System 1 Evolution data acquisition nodes. Communication faults between the monitor rack and the plant DCS — often caused by degraded RS-232/RS-485 cables or misconfigured Modbus mappings — can mask genuine vibration events or generate nuisance alarms. Replacing the extension cable without auditing the communication path is an incomplete repair.

In high-vibration environments such as gas turbine compressor trains or reciprocating compressors, the cable routing and clamping arrangement deserves particular attention. Unsupported cable runs that allow flexing at the connector junction are the leading cause of premature extension cable failure. During the inspection, also check Bently Nevada 02-262783-01 armoured conduit assemblies and cable gland fittings for signs of fretting or seal degradation. Replacing the cable without correcting a poor routing arrangement will result in repeat failures within 12–18 months.

Finally, for facilities that maintain a minimum viable spare parts inventory, the 330930-060-06-CN should be stocked alongside the 330130-080-00-CN proximity probe, 330500-02-CN Proximitor, and at least one spare 3500/42M monitor card. This four-component kit covers the complete signal chain for a single measurement point and enables a full channel restoration within a single shift — a critical capability when the monitored machine is on the critical path of a production unit.

Strategic Replacement Solutions

The 330930-060-06-CN is a direct, like-for-like replacement for earlier Bently Nevada 3300 series extension cables used in legacy installations. Many facilities that commissioned rotating machinery in the 1990s and 2000s are still operating original 3300 XL transducer systems, and the extension cables in those installations have now exceeded their recommended service life of 10–15 years in process environments.

Replacing aged cables with genuine 330930-060-06-CN units preserves full compatibility with existing 3300 XL probes and Proximitor sensors without requiring recalibration of the monitor system or modification of the DCS configuration. This is a significant operational advantage compared to third-party cable substitutes, which may introduce impedance mismatches, connector incompatibilities, or sensitivity offsets that require engineering review and system re-commissioning.

For facilities planning a phased migration from 3300 Series to 3500 Series monitoring, the 330930-060-06-CN is also compatible with 3500/42M and 3500/40M monitor inputs when used with the appropriate Proximitor driver, allowing the cable infrastructure to be retained during the rack upgrade. This reduces the scope and cost of the migration project and allows maintenance teams to focus capital expenditure on the monitor hardware rather than the field wiring.

Procurement teams should note that genuine Bently Nevada extension cables are serialised and traceable to manufacturing batch records. This traceability is increasingly required by asset integrity management systems and insurance auditors in regulated industries. Substituting non-OEM cables to reduce unit cost introduces documentation gaps that can complicate insurance claims and regulatory inspections following a machinery failure event.

Support FAQ

Q1: What is the expected service life of the 330930-060-06-CN extension cable, and when should it be replaced?
Bently Nevada recommends periodic inspection of extension cables every 2–3 years in standard process environments, and annual inspection in high-temperature, high-vibration, or chemically aggressive installations. Cables showing jacket cracking, connector corrosion, impedance drift beyond ±5%, or physical damage at the connector junction should be replaced immediately. As a general guideline, proactive replacement at the 10-year mark is advisable regardless of visual condition.

Q2: How do I verify compatibility between the 330930-060-06-CN and my existing probe and Proximitor before installation?
Confirm that your proximity probe is an 8mm, 11mm, 14mm, or 25mm 3300 XL series unit and that your Proximitor driver is a 330500 series or equivalent. Check the system gap voltage specification — the 330930-060-06-CN is calibrated for the standard Bently Nevada -18V gap voltage range. If your system uses a non-standard gap voltage or a third-party driver, contact our technical team before ordering. We test all cables prior to dispatch and can provide a calibration certificate on request.

Q3: What does the 12-month warranty cover, and what is the claims process?
Our 12-month warranty covers manufacturing defects, connector integrity, and electrical performance to OEM specification from the date of delivery. It does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified environmental ratings. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and photographic evidence. We will arrange return shipping and either repair or replace the unit within 10 business days of receipt.

Q4: Can I order multiple units for a blanket spare parts inventory, and what lead times should I plan for?
Yes — we regularly supply multi-unit orders for planned maintenance programmes and strategic spare parts inventories. All units are inspected and tested before dispatch. Standard orders ship within 3–5 business days; expedited shipping is available for urgent breakdown situations. For volume orders or scheduled delivery programmes, contact [email protected] to discuss pricing and logistics arrangements.
