Bently Nevada 330930-060-00-00 Replacement for 3300 XL: Seamless Transition & Legacy System Compatibility

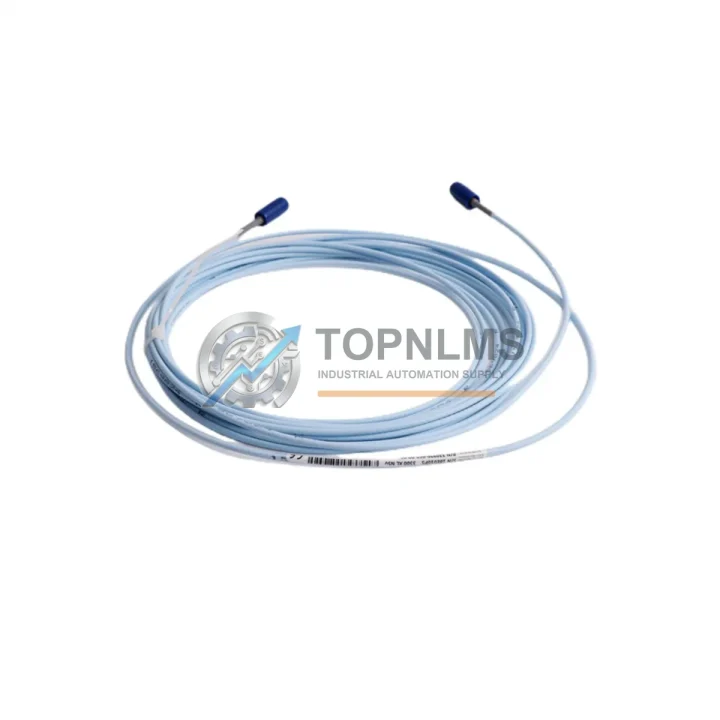

The Bently Nevada 330930-060-00-00 is a 60-inch (1524 mm) extension cable engineered for the 3300 XL Proximity Transducer System. As aging machinery monitoring infrastructure reaches end-of-service life, plant engineers and reliability teams increasingly require a direct, drop-in replacement that preserves existing wiring topology, connector pinouts, and signal integrity without forcing a full-system overhaul. This cable bridges the gap between legacy 3300 Series installations and modern condition monitoring requirements, enabling a smooth upgrade path with minimal downtime and zero reprogramming of the host monitoring system.

The 330930-060-00-00 extension cable connects the 3300 XL proximitor/oscillator (such as the 330180-X1-05 or 330180-X1-CN proximitor) to the eddy-current probe tip, maintaining the calibrated gap voltage and sensitivity (200 mV/mil, –24 VDC bias) that the 3300 XL system expects. Because the cable is a passive, shielded coaxial assembly with standard TNC-style connectors, it is fully interchangeable with earlier 330930-series variants used in the legacy 3300 proximity system, provided the total cable length (probe + extension) remains within the system’s specified range.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging 3300 proximity monitoring installation to a fully functional 3300 XL system involves more than swapping a single cable. During a typical retrofit, engineers will also evaluate the condition of the 330900-050-01-CN eddy-current probe at the machine bearing journal — if the probe tip shows wear or gap-voltage drift beyond ±0.5 VDC of the nominal –10 VDC midpoint, it should be replaced concurrently with the extension cable to avoid a second outage. The 330180-X1-05 proximitor/oscillator mounted in the field junction box is the active signal-conditioning element; its internal oscillator circuit degrades over time in high-vibration or high-temperature environments, and pairing a new extension cable with a verified proximitor ensures the entire signal chain is restored to factory specification.

On the rack side, the 3300/16 Dual Voting Logic Monitor or 3300/20 Radial Vibration Monitor receives the –24 VDC-biased signal from the proximitor. If the monitor card itself is flagged for replacement during the outage window, the 3500/42M Proximitor Monitor is the recommended migration target within the Bently Nevada ecosystem, offering backward-compatible input ranges and Modbus/TCP or PROFIBUS communication options that integrate cleanly with modern DCS platforms. For sites running a Honeywell Experion PKS or Emerson DeltaV distributed control system, the 3500/42M’s digital output eliminates the need for separate 4–20 mA signal converters previously required with the 3300/20.

When the control cabinet layout is being revised as part of the upgrade, 3500 Series rack backplanes and 3500/05 Power Supply modules are commonly sourced alongside extension cables to consolidate the machinery protection system into a single 19-inch rack footprint. Field wiring from the junction box to the rack typically runs through Belden 9182 or equivalent low-capacitance coaxial cable in a dedicated cable tray; maintaining cable separation from high-voltage motor leads is critical to preserving the sub-1 mV noise floor that the 3300 XL system requires. A signal isolator or barrier module (such as a MTL or P+F Zener barrier) may be inserted in the signal path if the installation is in a Zone 1 or Zone 2 hazardous area, and the 330930-060-00-00 extension cable’s shielding specification is fully compatible with such barrier-protected circuits.

For commissioning, a Bently Nevada 330130-040-00-00 or equivalent proximitor calibration tool and a precision gap-setting fixture are recommended to verify the –10 VDC ±0.5 VDC static gap voltage after installation. Documentation of the as-left gap voltage, along with the cable serial number and installation date, should be entered into the plant’s CMMS (such as SAP PM or Maximo) to establish the baseline for future predictive maintenance trending.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring conduit when replacing the extension cable?
A: Yes. The 330930-060-00-00 uses the same outer diameter and TNC connector footprint as the original 330930 series. No conduit enlargement or new cable glands are required. Verify that the conduit is free of moisture ingress before re-pulling the cable.

Q: Do I need to recalibrate the proximitor after installing a new extension cable?
A: The proximitor (e.g., 330180-X1-05) does not require electronic recalibration when only the extension cable is replaced, provided the probe-to-target gap is reset to the manufacturer-specified value (typically 1.0 mm / 40 mil for a 5 mm probe). Verify the static gap voltage at the monitor input after installation.

Q: Is the 330930-060-00-00 compatible with the 3500 Series monitoring system?
A: The cable itself is electrically compatible with 3500 Series proximitor inputs. However, the 3500 system uses a different proximitor module (3500/42M) and may require a different extension cable length depending on the field junction box location. Confirm total cable length (probe + extension) against the 3500/42M specification sheet before ordering.

Q: What communication protocols does the 3300 XL system support?
A: The 3300 XL monitor cards output a standard 4–20 mA analog signal and a relay contact for alarm/danger. They do not natively support Modbus or PROFIBUS. If digital communication is required, migration to the 3500 Series with the 3500/42M Proximitor Monitor is recommended, which supports Modbus/TCP and PROFIBUS DP.

Q: How do I verify the cable is genuine and not a counterfeit?
A: All units supplied by TOPNLMS are sourced from authorized distributors or directly from Bently Nevada-certified supply chains. Each cable ships with a test report confirming DC resistance, insulation resistance (>100 MΩ at 500 VDC), and shield continuity. The part number and date code are laser-marked on the connector body.

Q: What is the lead time and shipping arrangement?
A: Units in stock ship within 1–3 business days from Xiamen, China via DHL Express or FedEx International Priority. Estimated transit time to most destinations is 3–7 business days. For urgent plant shutdowns, contact us directly for same-day dispatch options.

Warranty Assurance

Every Bently Nevada 330930-060-00-00 extension cable supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes: visual inspection of connector bodies and cable jacket for mechanical damage; DC resistance measurement of the center conductor and shield; insulation resistance test (>100 MΩ at 500 VDC); and shield continuity verification end-to-end. A signed test report is included with every shipment.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit or full refund within 5 business days of receiving the returned item and confirming the defect. Return shipping costs for confirmed warranty defects are covered by TOPNLMS. Our after-sales team responds to technical inquiries within 24 hours on business days. For time-critical plant situations, priority support is available via direct phone contact.

We understand that unplanned downtime in rotating machinery monitoring carries significant operational and safety consequences. Our procurement guarantee is straightforward: if the part does not perform as specified, we make it right — no bureaucratic delays, no ambiguity.
