Beckhoff AX5203-0000 Ruggedized Dual-Axis EtherCAT Servo Drive

Product Overview

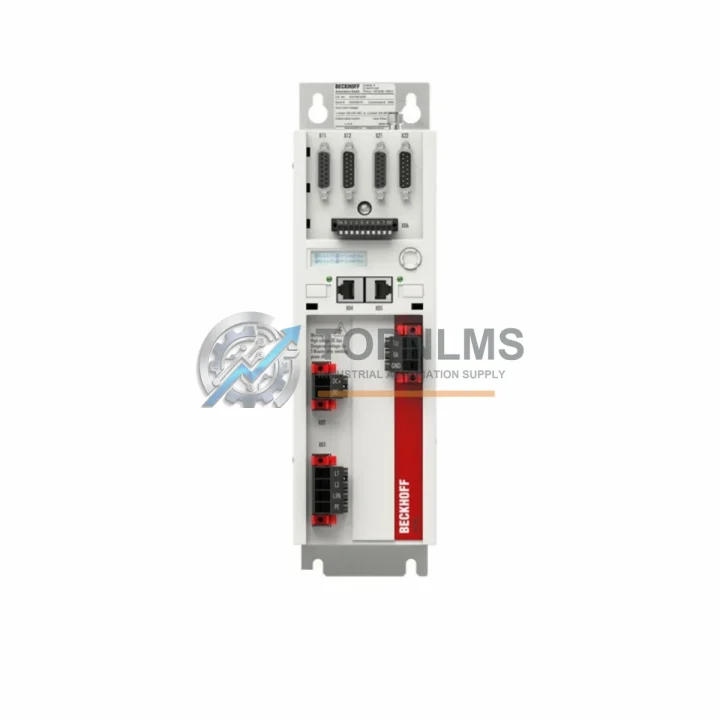

Beckhoff AX5203-0000 Ruggedized Dual-Axis EtherCAT Servo Drive: Industrial Resilience for Harsh Environments

The Beckhoff AX5203-0000 is a high-performance, dual-axis EtherCAT servo drive from the renowned AX5000 Series, engineered to deliver uncompromising motion control precision in the most demanding industrial environments. Designed for continuous operation under conditions of elevated temperature, high humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, this drive is a cornerstone component for engineers and procurement specialists who cannot afford downtime in critical production systems.

Built on Beckhoff’s proven EtherCAT real-time communication architecture, the AX5203-0000 integrates seamlessly into TwinCAT-based automation platforms, enabling deterministic, high-speed synchronization across multi-axis motion sequences. Its dual-axis topology reduces cabinet footprint while maintaining full independent control of two servo axes — a decisive advantage in compact control cabinet designs where space, thermal management, and cable routing are engineering constraints.

Rugged Specifications Table

Comprehensive Protection Solutions

The AX5203-0000 does not operate in isolation — it is a precision node within a broader, interdependent automation architecture. In high-stakes production environments, the reliability of the servo drive is directly tied to the integrity of every upstream and downstream component in the control chain.

At the controller level, the AX5203-0000 is designed to operate under the command of a Beckhoff CX2040 Embedded PC or CX5140 Industrial PC running TwinCAT 3, where real-time EtherCAT cycle times as low as 62.5 µs ensure deterministic axis synchronization. The drive communicates over the EtherCAT ring alongside Beckhoff EL7201 servo terminal modules and EL2521 pulse train output terminals, forming a tightly integrated motion bus that eliminates the latency and wiring complexity of traditional fieldbus architectures.

For I/O expansion in the same cabinet, Beckhoff EL1008 digital input terminals and EL2008 digital output terminals provide the discrete signal interface for limit switches, proximity sensors, and actuator feedback — all mounted on the same EtherCAT coupler rail as the AX5203-0000’s associated terminal blocks. In environments with significant electromagnetic interference — such as those near large variable frequency drives (VFDs), arc welding stations, or high-current bus bars — the Beckhoff EL9560 power supply terminal and dedicated EMC filter modules are recommended to maintain signal integrity across the EtherCAT segment.

The AX5203-0000’s integrated STO (Safe Torque Off) function interfaces directly with safety relay modules such as the Beckhoff EL6900 TwinSAFE Logic Terminal or third-party safety PLCs, enabling SIL 2 / PLd-compliant emergency stop circuits without additional external contactors. This is particularly critical in collaborative robot cells, press brake applications, and conveyor systems where personnel safety and machine protection must be enforced at the drive level.

On the power supply side, pairing the AX5203-0000 with a Beckhoff PS2000 series 24 V DC power supply or a compatible industrial DIN-rail PSU ensures stable auxiliary voltage for the drive’s control electronics, even during mains fluctuations common in heavy industrial facilities. A properly sized AX5000 series regenerative resistor module or braking resistor should be specified for applications with frequent deceleration cycles — such as high-speed pick-and-place or winding/unwinding machinery — to safely dissipate regenerative energy and protect the DC bus.

Application in Critical Infrastructure

The Beckhoff AX5203-0000 has established a strong track record across critical infrastructure sectors where servo drive failure is not an option.

In oil and gas upstream processing, the AX5203-0000 drives precision valve actuators and pump control systems on offshore platforms and onshore separation facilities. Its wide supply voltage tolerance and robust EMC performance allow it to function reliably alongside high-power variable speed drives and generator sets that introduce significant harmonic distortion into the local power grid.

In mining and mineral processing, the drive controls conveyor positioning systems, crusher feed regulators, and flotation cell agitators in environments characterized by pervasive coal dust, silica particulate, and continuous mechanical shock. Installed within sealed, climate-controlled control cabinets rated to IP54 or higher, the AX5203-0000 maintains full operational integrity across extended production shifts.

In power generation and grid infrastructure, the AX5203-0000 is deployed in turbine blade pitch control systems and generator excitation positioning mechanisms, where microsecond-level response accuracy directly impacts grid stability. Its EtherCAT communication ensures that TwinCAT-based supervisory control systems receive real-time position and torque feedback without the latency penalties of legacy Profibus or Modbus RTU architectures.

In water and wastewater treatment, the drive manages the precise rotational speed of sludge scrapers, chemical dosing pumps, and UV disinfection carousel systems. The corrosive, high-humidity atmosphere of treatment facilities demands a drive with robust internal conformal coating and thermal management — characteristics inherent to the AX5000 platform’s industrial-grade design philosophy.

In metallurgy and steel production, the AX5203-0000 controls rolling mill positioning, ladle transfer car drives, and continuous casting withdrawal systems. The combination of high ambient temperatures, radiated heat from molten metal, and intense electromagnetic fields from induction furnaces represents one of the most severe operating environments for any servo drive — and the AX5000 series is specifically validated for these conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All Beckhoff AX5203-0000 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including power-on verification, EtherCAT communication handshake confirmation, and STO circuit continuity check. Serial numbers are recorded and cross-referenced against our procurement documentation. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund upon return and inspection of the defective item.

Q2: How do you verify authenticity and ensure the unit is not counterfeit or refurbished?
TOPNLMS sources Beckhoff AX5203-0000 units exclusively through authorized distribution channels and verified industrial surplus networks with full traceability. Every unit is inspected for original Beckhoff labeling, firmware version consistency, and physical condition prior to listing. Units showing signs of re-labeling, board-level repair, or non-original firmware are rejected. Buyers receive a test report and photographic documentation upon request.

Q3: Is the AX5203-0000 compatible with my existing TwinCAT project and Beckhoff EtherCAT topology?
Yes. The AX5203-0000 is fully compatible with TwinCAT 2 and TwinCAT 3 runtime environments and integrates as a standard EtherCAT slave device using the standard Beckhoff ESI (EtherCAT Slave Information) file. It supports CoE (CANopen over EtherCAT) and is interoperable with all standard Beckhoff EK1100 EtherCAT couplers and CX-series embedded controllers. No firmware modification or special licensing is required for drop-in replacement of a failed AX5203-0000 in an existing system.

Q4: What is your lead time, and can you support long-term or repeat procurement?
In-stock units ship within 1–3 business days from our Xiamen, China warehouse via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. For project-based or MRO (Maintenance, Repair & Operations) procurement requiring multiple units or scheduled delivery, TOPNLMS offers reservation agreements and priority allocation. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, or long-term supply contracts for the AX5000 series.
