BECKHOFF AX2010-S61000-520 Ruggedized Servo Drive Module

Product Overview

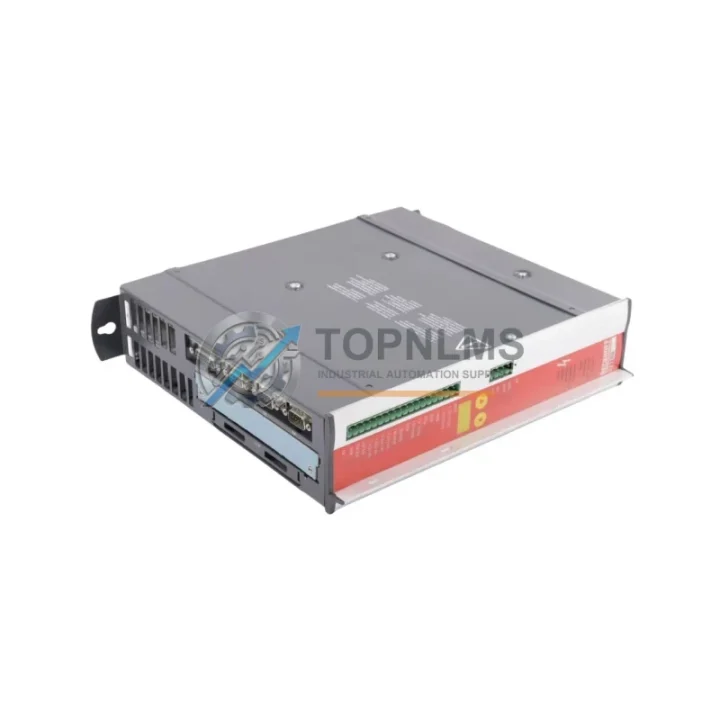

BECKHOFF AX2010-S61000-520 Ruggedized Digital Servo Drive for Harsh Industrial Environments

The BECKHOFF AX2010-S61000-520 is a high-performance digital servo drive from the AX2000 Series, engineered to deliver precise motion control and sustained reliability in the most demanding industrial environments. Rated at 7 kVA continuous output power, this drive is purpose-built for applications where thermal stress, mechanical vibration, electromagnetic interference, and continuous duty cycles are everyday realities. Whether deployed on a high-speed packaging line, a CNC machining center, a steel rolling mill, or a petrochemical process train, the AX2010-S61000-520 maintains stable, accurate servo performance without compromise.

BECKHOFF’s AX2000 Series drives are renowned in the industrial automation community for their tight integration with BECKHOFF TwinCAT automation software and EtherCAT fieldbus architecture. The AX2010-S61000-520 communicates natively over SERCOS II and supports standard encoder feedback interfaces, making it a direct fit for multi-axis coordinated motion systems. Its compact footprint and DIN-rail-compatible mounting allow straightforward integration into existing control cabinets alongside BECKHOFF CX series Embedded PCs, EK1100 EtherCAT couplers, EL series I/O terminals, and KL series Bus Terminals — enabling a fully cohesive BECKHOFF automation ecosystem within a single enclosure.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, a servo drive does not operate in isolation — it is one node in a tightly coupled system where every component must perform reliably under the same harsh conditions. The AX2010-S61000-520 is designed to work seamlessly within BECKHOFF’s broader automation portfolio. In a typical control cabinet, it operates alongside the BECKHOFF AX2090-ND50-0012 mains filter and the AX2090-BW50-0150 braking resistor to manage regenerative energy and suppress conducted EMI on shared DC bus systems.

For multi-axis coordinated motion — common in gantry systems, winding machines, and robotic welding cells — the AX2010-S61000-520 pairs with other AX2000 series drives such as the AX2020-S61000-520 and AX2040-S61000-520, all sharing a common DC bus and synchronized via SERCOS II ring topology. This architecture eliminates inter-axis timing jitter and reduces overall cabinet wiring complexity. The BECKHOFF CX5130 or CX2040 Embedded PC running TwinCAT 3 NC/PTP serves as the motion controller, issuing real-time position commands to each drive with sub-millisecond cycle times.

On the I/O side, BECKHOFF EL7201 and EL7211 servo terminal modules handle smaller-axis positioning tasks within the same EtherCAT network, while the AX2010-S61000-520 manages the high-power main axes. Safety functions — including STO (Safe Torque Off) and SS1 (Safe Stop 1) — are implemented through BECKHOFF EL6900 TwinSAFE Logic terminals and EL1904 safety digital input terminals, ensuring IEC 62061 / EN ISO 13849-1 PLd compliance without requiring a separate safety relay chain. Industrial power quality is maintained by pairing the drive with a BECKHOFF CP-series UPS module or an equivalent 24 V DC industrial power supply, protecting the control system against voltage sags and transient spikes common in heavy manufacturing environments.

Application in Critical Infrastructure

The AX2010-S61000-520 has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

Oil & Gas: In upstream and midstream facilities, servo-driven valve actuators and compressor control systems demand drives that can withstand ambient temperatures exceeding 40 °C, corrosive atmospheres, and continuous 24/7 duty cycles. The AX2010-S61000-520, installed within sealed, climate-controlled control cabinets, provides the torque accuracy and dynamic response required for precision flow control and emergency shutdown actuation.

Mining & Mineral Processing: Conveyor positioning systems, ore crusher drives, and flotation cell agitators subject servo drives to intense mechanical vibration and airborne particulate contamination. The AX2000 Series’ robust power stage design and conformal-coated PCBs (available on select configurations) resist moisture ingress and conductive dust accumulation, maintaining insulation resistance over extended service intervals.

Power Generation & Utilities: Turbine governor systems, cooling tower fan drives, and grid-synchronization equipment in thermal and hydroelectric power plants rely on servo drives with deterministic response times. The AX2010-S61000-520’s SERCOS II interface delivers cycle times as low as 250 µs, meeting the stringent dynamic requirements of power plant auxiliary systems.

Water & Wastewater Treatment: Pump station drives and sluice gate actuators in water treatment facilities operate in high-humidity environments with frequent wash-down cycles. Cabinet-mounted AX2010-S61000-520 units, protected by IP54 or higher enclosures, provide reliable flow regulation and level control without corrosion-related failures.

Metallurgy & Steel: Rolling mill main drives, coiler tension control, and continuous casting withdrawal systems impose extreme dynamic load demands. The AX2010-S61000-520’s high overload capacity and fast current loop response make it well-suited for these torque-intensive applications, where response lag translates directly into product quality defects.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the AX2010-S61000-520?
Every AX2010-S61000-520 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround, and replacement units are dispatched from our Xiamen warehouse to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
All units undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional verification, communication interface testing (SERCOS II link establishment), and output stage load testing. Units that do not pass all checkpoints are quarantined and not offered for sale. A test report is available upon request for critical procurement projects.

Q3: Is the AX2010-S61000-520 compatible with my existing BECKHOFF TwinCAT and SERCOS II infrastructure?
Yes. The AX2010-S61000-520 is a native AX2000 Series drive and is fully compatible with BECKHOFF TwinCAT 2 and TwinCAT 3 NC environments. It integrates directly into existing SERCOS II ring topologies without firmware modification. For EtherCAT-based systems, a SERCOS-to-EtherCAT gateway or migration to the AX5000 series may be considered — TOPNLMS technical staff can advise on the optimal upgrade path for your architecture.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains dedicated safety stock of high-demand BECKHOFF AX2000 Series drives, including the AX2010-S61000-520, to support both planned maintenance schedules and emergency breakdown replacements. We serve industrial clients across manufacturing, energy, and process industries with consistent lead times and documented traceability. For volume procurement or long-term supply agreements, contact our sales team directly.
