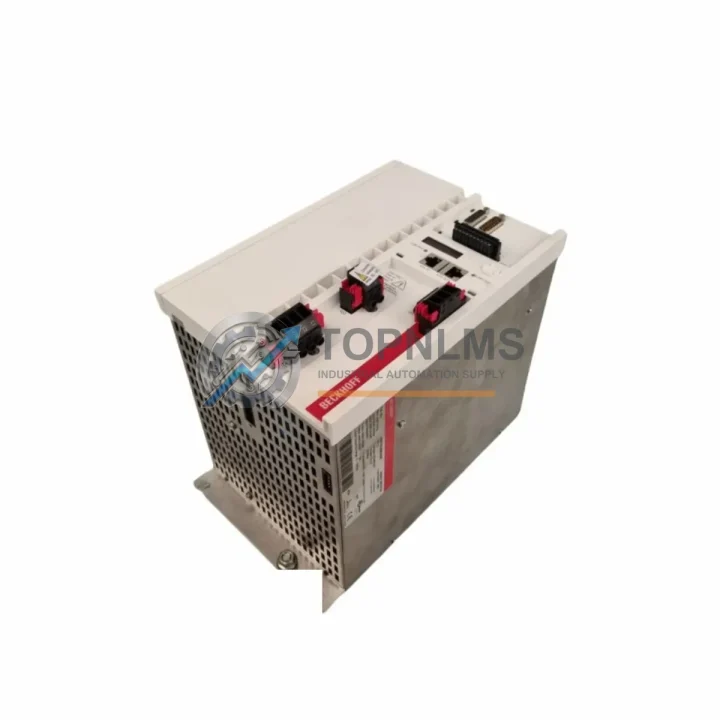

BECKHOFF AX5118-0000 Original Industrial Spare AX5000 Compatible

Product Overview

BECKHOFF AX5118-0000 Original Industrial Spare AX5000 Compatible: System Stability & Industrial Spare Parts Maintenance Value

In high-demand industrial environments, servo drive reliability is not optional — it is the backbone of continuous production. The BECKHOFF AX5118-0000 is a single-axis servo drive from the proven AX5000 series, engineered for precision motion control in demanding automation applications including CNC machining centers, packaging lines, printing presses, and multi-axis robotic cells. Sourcing an original, tested replacement unit is the single most effective action a maintenance team can take to eliminate unplanned downtime and protect long-term system integrity.

At TOPNLMS, every AX5118-0000 unit is inspected, function-tested, and shipped with a 12-month warranty, giving procurement and maintenance engineers the confidence to stock this critical spare without reservation. Whether you are responding to an emergency breakdown or building a proactive spare-parts inventory, the AX5118-0000 is a direct, plug-compatible replacement that preserves your existing AX5000 cabinet architecture without requiring firmware migration or hardware redesign.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive failure rarely occurs in isolation. In most AX5000-based control cabinets, the AX5118-0000 operates alongside a tightly integrated set of components that share the same DC bus, EtherCAT network, and power supply infrastructure. A disciplined preventive maintenance program should treat the servo drive as part of a system — not a standalone unit.

When scheduling a planned inspection or responding to an AX5118-0000 fault, maintenance engineers should simultaneously evaluate the condition of the AX5000 power supply module (AX5000-PSU), which feeds the shared DC bus. A degraded or undersized power supply is a leading cause of premature servo drive failure and nuisance trips. Alongside the PSU, the AX5000 capacitor module (AX5021) should be checked for capacitance degradation, particularly in installations older than five years.

EtherCAT communication integrity is equally critical. Inspect the EK1100 EtherCAT coupler and associated EL6695 EtherCAT bridge terminals for connector wear, cable damage, and firmware version alignment with the TwinCAT runtime. A single degraded EtherCAT segment can cause intermittent axis faults that are misdiagnosed as servo drive failures. While inspecting the communication layer, it is also prudent to verify the status of EL2004 digital output terminals and EL1004 digital input terminals that handle enable signals, brake control, and limit switch feedback for the affected axis.

On the motor side, confirm that the motor feedback cable (EnDat or Hiperface type, matched to the connected servo motor) shows no signs of insulation damage, connector corrosion, or shield continuity loss. A compromised feedback cable will generate encoder errors that can destroy a replacement drive within hours of commissioning. Similarly, inspect the motor power cable for phase-to-phase insulation resistance and verify that the holding brake relay module — often an EL2502 PWM output terminal or a dedicated brake chopper — is functioning within specification.

For facilities managing multiple AX5000 axes, it is strongly recommended to maintain at least one AX5118-0000 unit in local stock alongside a spare AX5112-0000 (12 A variant) to cover adjacent axes with lower current ratings. Stocking both variants eliminates the risk of a single-point-of-failure scenario where a lower-rated axis is left unprotected. Complement this with a spare AX5101-0000 (1 A single-axis drive) for auxiliary positioning axes, and your AX5000 cabinet will have full redundancy coverage across the current range.

Finally, review the TwinCAT System Manager axis configuration backup and ensure a current XML export is stored off-machine. When replacing an AX5118-0000, restoring the axis parameters from a verified backup reduces recommissioning time from hours to minutes and eliminates the risk of parameter entry errors that can damage the replacement unit or connected motor.

Strategic Replacement Solutions

The AX5118-0000 is a direct replacement for any failed or end-of-life AX5118-0000 unit within an existing AX5000 installation. Because BECKHOFF maintains backward compatibility across AX5000 hardware revisions, a current-production AX5118-0000 will accept the same TwinCAT axis configuration as units manufactured years earlier — no firmware downgrade or parameter remapping is required in the vast majority of installations.

For facilities transitioning from older BECKHOFF servo platforms such as the AX2000 or AX2500 series, the AX5118-0000 provides a clear migration path. The AX5000 platform’s EtherCAT-native architecture eliminates the SERCOS or PROFIBUS fieldbus infrastructure required by legacy drives, reducing wiring complexity and improving cycle-time determinism. Maintenance teams that have historically managed AX2000 spare parts inventories can consolidate onto the AX5000 platform with a single drive family covering the full current range from 1 A to 170 A.

In multi-vendor control environments where BECKHOFF axes operate alongside Siemens SINAMICS or Allen-Bradley Kinetix drives, the AX5118-0000’s EtherCAT interface allows it to be integrated into mixed-topology networks without gateway hardware, provided the master controller supports EtherCAT. This flexibility makes the AX5118-0000 a preferred choice for system integrators managing heterogeneous automation architectures.

Stocking the AX5118-0000 as a strategic spare reduces mean time to repair (MTTR) for affected axes from days — the typical lead time for a new unit from distribution — to hours. For production lines where a single axis stoppage costs thousands per hour in lost output, the inventory carrying cost of one spare drive is recovered within the first prevented downtime event.

Support FAQ

Q1: Is the AX5118-0000 supplied by TOPNLMS an original BECKHOFF unit?
Yes. All AX5118-0000 units are original BECKHOFF components. Each unit undergoes functional testing prior to shipment and is covered by a 12-month warranty from the date of delivery. A test report is available upon request.

Q2: How do I verify compatibility with my existing AX5000 installation?
The AX5118-0000 is compatible with all AX5000 series installations using TwinCAT 2 or TwinCAT 3. Confirm your existing unit’s part number on the drive nameplate. If the nameplate reads AX5118-0000, the replacement is direct. For hardware revision queries, contact our technical team with your TwinCAT project version and axis XML export.

Q3: What is the typical lead time and shipping process?
In-stock units are dispatched within 1–2 business days. International shipments are supported with full export documentation. Expedited freight options are available for emergency breakdown situations. Contact [email protected] or +86 18359293191 for urgent requirements.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated specifications. TOPNLMS provides pre-shipment test documentation and supports warranty claims with direct technical assistance throughout the warranty period.
