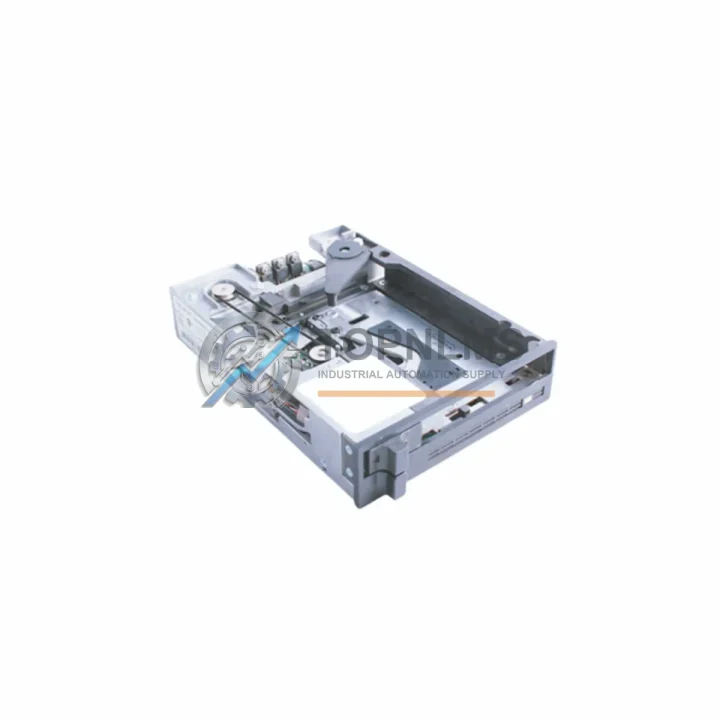

ARCHIVE 2150S Ruggedized Intelligent Controller for Harsh Environments

Product Overview

ARCHIVE 2150S Ruggedized Intelligent Controller: Industrial Resilience for Harsh Environments

The ARCHIVE 2150S Intelligent Controller Module is engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Built on the proven ARCHIVE 2150 Series platform, this module delivers deterministic process control performance under conditions of extreme temperature variation, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Whether deployed in a petrochemical refinery, a deep-shaft mining operation, a high-voltage power substation, or a continuous steel rolling mill, the 2150S maintains signal integrity and control loop stability where lesser hardware fails.

Designed as a direct-fit intelligent controller within ARCHIVE’s 2150 Series architecture, the 2150S integrates seamlessly with distributed I/O racks, remote terminal units, and supervisory SCADA layers. Its ruggedized backplane interface ensures reliable data exchange even when the control cabinet is subject to vibration loads common in heavy press lines or compressor stations. The module’s onboard diagnostics continuously monitor internal temperature, supply voltage, and communication bus health, enabling predictive maintenance before a fault escalates to an unplanned shutdown.

Rugged Specifications Table

Comprehensive Protection Solutions

The ARCHIVE 2150S does not operate in isolation — it is the intelligent core of a layered control architecture. In a typical heavy-industry control cabinet, the 2150S works in concert with ARCHIVE 2150 Series distributed I/O modules to aggregate field signals from temperature transmitters, pressure sensors, and flow meters across the plant floor. Upstream, an ARCHIVE 2150 Series power supply module conditions the 24 VDC rail, protecting the controller from voltage spikes and brownouts that are endemic to sites with large motor drives or arc furnaces nearby.

For process safety applications, the 2150S is commonly paired with dedicated safety relay modules and emergency-stop input modules that enforce SIL-rated shutdown logic independently of the main control program. Communication continuity is maintained through PROFIBUS DP communication modules and Modbus RTU gateway modules, which bridge the 2150S to SCADA hosts and historian servers without introducing latency that could compromise closed-loop control. In installations where the control cabinet must interface with variable-frequency drives (VFDs) or soft starters, surge protection terminal blocks and EMI filter modules are installed on the same DIN rail to suppress conducted interference before it reaches the 2150S backplane.

For I/O expansion, ARCHIVE 2150 Series analog input modules and digital output modules extend the controller’s reach to hundreds of field devices, while isolation barrier modules protect the 2150S from ground loops and high-voltage transients originating in the field wiring. In redundant architectures, a hot-standby controller module mirrors the 2150S in real time, enabling bumpless transfer in the event of a primary controller fault — a configuration widely adopted in continuous process industries where even a two-second interruption carries significant financial and safety consequences.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the ARCHIVE 2150S manages wellhead pressure regulation, pipeline flow control, and compressor anti-surge logic. Its wide operating temperature range accommodates both arctic pipeline stations and desert gas processing plants. The module’s EMI immunity is critical in environments where high-power radio transmitters, variable-speed pump drives, and high-voltage switchgear operate in close proximity to the control room.

In underground mining operations, the 2150S controls conveyor belt sequencing, ventilation fan speed, and dewatering pump stations. Vibration from blasting and heavy haulage equipment demands the module’s certified shock and vibration tolerance. Dust-laden atmospheres — including coal dust and silica — require the controller to be housed in sealed enclosures, and the 2150S’s compact form factor is compatible with standard IP65 steel enclosures used throughout the industry.

In power generation and transmission substations, the 2150S participates in automatic voltage regulation, transformer protection logic, and load-shedding schemes. Its deterministic scan cycle ensures that protection relay trip signals are processed within the required response windows. Water treatment and wastewater facilities rely on the 2150S for dosing pump control, aeration basin management, and SCADA-integrated alarm annunciation — applications where continuous, unattended operation over months or years is the baseline expectation.

In metallurgical and steel plants, the 2150S withstands radiated heat from furnaces, electromagnetic fields from induction heating systems, and the mechanical shock of rolling mill operations. Its ability to maintain program execution integrity under these conditions makes it a preferred replacement and upgrade module for aging control systems across the sector.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every ARCHIVE 2150S shipped by TOPNLMS carries a 12-month warranty against manufacturing defects in materials and workmanship, commencing from the date of shipment. Prior to dispatch, each unit undergoes a full functional test including power-on self-test, communication bus verification, and I/O channel integrity check. A test report is available upon request. In the event of a warranty claim, TOPNLMS provides advance replacement or repair at no charge, subject to inspection confirming the defect is not attributable to misuse, incorrect installation, or overvoltage events.

Q2: How do I confirm compatibility with my existing ARCHIVE 2150 Series installation?
The ARCHIVE 2150S is designed as a native module within the ARCHIVE 2150 Series backplane ecosystem. It is backward-compatible with standard 2150 Series racks and power supply configurations. For installations involving third-party SCADA hosts or non-ARCHIVE communication gateways, TOPNLMS technical staff can review your system architecture and confirm compatibility before order placement. Please provide your rack model, firmware revision, and communication protocol when inquiring.

Q3: Is the unit tested before shipment, and what documentation is provided?
Yes. All units are powered on and functionally tested before packaging. Standard documentation includes a product datasheet, test record, and packing list. CE declaration of conformity and country-of-origin certificate (Germany) are available for customs and compliance purposes. For projects requiring IEC 61131-2 compliance documentation or third-party inspection, please contact TOPNLMS in advance to arrange the appropriate certification package.

Q4: Can TOPNLMS support long-term supply continuity for maintenance and spare-parts programs?
Yes. TOPNLMS maintains dedicated stock of ARCHIVE 2150 Series modules, including the 2150S, to support planned maintenance schedules, emergency breakdowns, and multi-year spare-parts agreements. For facilities operating continuous production lines where unplanned downtime carries high costs, TOPNLMS can establish a reserved-stock arrangement with agreed lead times and pricing. Contact our team to discuss volume pricing, consignment stock, or annual supply contracts tailored to your maintenance program.
