Applied Materials E37001013 Replacement for Micro-Ion Series

Product Overview

Applied Materials E37001013 Replacement for Micro-Ion Series: Smooth Transition from Legacy Vacuum Gauge Systems

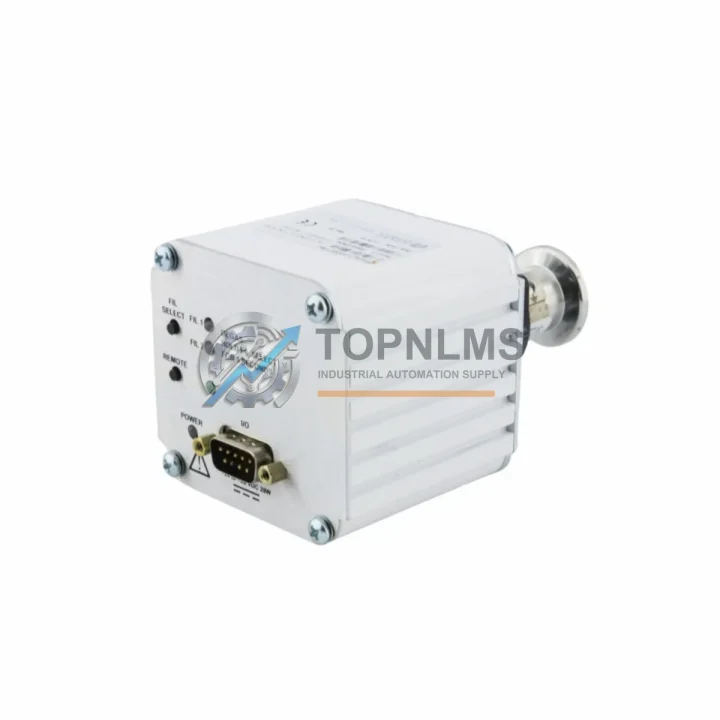

The Applied Materials E37001013 Micro-Ion Vacuum Gauge — a Bayard-Alpert Hot Cathode Ionization Sensor — is the definitive replacement and upgrade solution for legacy vacuum measurement systems deployed across semiconductor fabrication, thin-film deposition, ion implantation, and high-vacuum process chambers. As OEMs phase out legacy gauge controllers and sensor assemblies, facilities running discontinued Varian Micro-Ion Series gauges face mounting pressure to source compatible replacements that minimize process interruption and avoid costly system re-qualification.

This unit is a direct functional replacement for cross-reference part numbers E33000207, E33001060, 4022.436.7162, MTR 118RCX-300, and E11076831, covering multiple generations of Micro-Ion gauge tube assemblies used in Applied Materials Centura, Endura, Producer, and related platform chambers. Engineers migrating from older Bayard-Alpert sensor configurations will find that the E37001013 retains the same 8-pin connector pinout, filament geometry, and ion collector arrangement — enabling a drop-in swap without rewiring the gauge controller harness or modifying the vacuum flange interface. The identical physical envelope means no chamber modification, no new flange machining, and no re-qualification of the process recipe.

For procurement teams managing planned maintenance or emergency replacements, TOPNLMS maintains ready stock of the E37001013 and all confirmed cross-reference part numbers, with same-day or next-business-day dispatch from our Xiamen warehouse. Standard lead time is 1–3 business days; expedited air freight to North America, Europe, and Southeast Asia is available on request.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Micro-Ion gauge assembly rarely involves a single component. In practice, field engineers replacing the E37001013 sensor tube will often simultaneously address adjacent components that have reached end-of-life in the same service interval.

The Varian Micro-Ion Plus Controller (919 Series and 835 Series) is the most common companion unit — if the controller’s emission circuit or degas function has degraded, replacing the gauge tube alone will not restore measurement accuracy. The controller’s analog output board and setpoint relay modules should be inspected concurrently. Similarly, the Varian 0190-09186 gauge cable assembly connecting the sensor to the controller should be checked for insulation breakdown, particularly in high-temperature chamber environments where cable jackets harden and crack over extended service cycles.

For facilities running multi-gauge vacuum systems, the MKS 937B Multi-Sensor Controller is a widely adopted upgrade path that accepts Bayard-Alpert inputs alongside Pirani and capacitance manometer signals, consolidating gauge readout into a single rack-mount unit and eliminating the need for multiple legacy controllers. When upgrading the controller platform, the MKS 651C pressure controller and associated MKS 248 control valve are frequently reconfigured in the same project scope to align setpoint logic with the new controller’s analog output range — a common requirement in Centura and Endura platform upgrades.

On the chamber side, facilities migrating from older Applied Materials platforms often replace mass flow controller (MFC) modules — such as the Brooks Instrument SLA5850 or equivalent — during the same maintenance window, since vacuum gauge replacement typically requires venting the chamber to atmosphere, creating an opportunity for concurrent MFC calibration or swap. The MDC Vacuum CF-16 blank flange and Nor-Cal Products NW16 centering ring with O-ring are standard consumables required when reseating the gauge tube into the chamber port and should be ordered alongside the E37001013 for a complete service kit.

For facilities that have already migrated their gauge controller to a newer platform but retained legacy wiring, a Fredericks Company 6000-series signal conditioner or equivalent logarithmic amplifier may be needed to match the E37001013’s ion current output to the new controller’s input impedance specification. This is particularly relevant in retrofit projects where the original Varian controller has been replaced with a third-party PLC-based vacuum monitoring system using analog input modules from platforms such as Siemens S7-300 or Allen-Bradley ControlLogix — both of which require an intermediate signal conditioning stage to correctly interpret the gauge tube’s nanoampere-range ion current output.

In cleanroom environments where the vacuum system interfaces with a broader facility SCADA or DCS architecture, a Moxa NPort RS-232 to Ethernet converter or equivalent protocol gateway is commonly deployed to bridge the Micro-Ion Plus controller’s RS-232 serial output to a modern Modbus TCP or EtherNet/IP network, enabling real-time pressure data integration without replacing the gauge controller itself.

Retrofit Guidance FAQ

Q: Can I replace the E37001013 without venting the entire chamber?
A: No. The Bayard-Alpert gauge tube is mounted directly on the chamber wall via a CF or NW flange. Replacement requires venting the chamber to atmosphere, breaking vacuum, swapping the tube, and re-pumping. Plan for a minimum 4–8 hour downtime window including pump-down and bake-out if required by your process specification.

Q: Do I need to recalibrate the gauge controller after installing the E37001013?
A: In most cases, no. The E37001013 uses the same sensitivity constant (typically 10 Torr⁻¹ for nitrogen) as the legacy cross-reference models. If your controller allows sensitivity factor adjustment, verify the setting matches the tube specification sheet before returning the chamber to process.

Q: Is the E37001013 compatible with my existing Varian 919 Series controller?
A: Yes. The 919 Series controller is fully compatible with the E37001013 tube. The 8-pin connector and emission/collector circuit parameters are identical to the legacy E33000207 and E33001060 tubes the 919 controller was originally designed to drive.

Q: What is the correct torque specification for the CF-16 flange bolts?
A: CF flanges use knife-edge seals with copper or aluminum gaskets. Tighten bolts in a star pattern to approximately 20–25 N·m for CF-16 (1.33″ OD) flanges. Over-torquing will damage the knife edge; under-torquing will result in virtual leaks that degrade base pressure.

Q: Can the E37001013 be used with a PLC-based vacuum monitoring system?
A: Yes, with appropriate signal conditioning. The gauge tube outputs an ion current (typically in the nA range) that requires a logarithmic amplifier or dedicated gauge controller to convert to a usable analog voltage or digital signal. Direct connection to a standard PLC analog input module is not recommended without an intermediate signal conditioner.

Q: What communication protocol does the Micro-Ion Plus controller use?
A: The Varian Micro-Ion Plus controller supports RS-232 serial communication for remote setpoint and readout. Some variants support RS-485 for multi-drop configurations. If integrating into a modern SCADA or DCS environment, a protocol converter (RS-232 to Modbus RTU or Ethernet/IP) may be required.

Q: How do I verify the replacement tube is functioning correctly after installation?
A: After pump-down, enable the emission circuit and confirm the emission current stabilizes at the controller’s set value (typically 4 mA or 10 mA). Monitor the pressure reading as the system pumps down — a functional tube will show a smooth logarithmic decrease in indicated pressure. If the reading is erratic or the emission circuit trips, perform a degas cycle before further diagnosis.

Q: What documentation is available for customs clearance?
A: TOPNLMS provides a certificate of conformance, commercial invoice, and packing list with HS code 9026.80.20 for all international shipments. Additional documentation (material safety data, country of origin certificate) is available on request.

Warranty Assurance

Every Applied Materials E37001013 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including visual inspection of the filament assembly, connector integrity check, and envelope leak test. Units are packaged in anti-static, shock-absorbing enclosures with desiccant to prevent moisture ingress during international transit.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to assist with installation questions, compatibility verification, and cross-reference confirmation before purchase. We maintain ready stock of E37001013 and all confirmed cross-reference part numbers to support urgent replacement requirements with same-day or next-business-day dispatch from our Xiamen warehouse.

For procurement teams requiring documentation, we provide a certificate of conformance, packing list, and commercial invoice with HS code 9026.80.20 for customs clearance. Lead time for standard orders is 1–3 business days; expedited air freight to North America, Europe, and Southeast Asia is available on request. Contact our sales team to confirm compatibility with your specific chamber configuration, controller model, or cross-reference part number before placing your order.
