Applied Materials 0190-53496 Original Industrial Spare ECOVARIO Compatible

Product Overview

Applied Materials 0190-53496 Original Industrial Spare ECOVARIO Compatible: System Stability & Vacuum Process Continuity

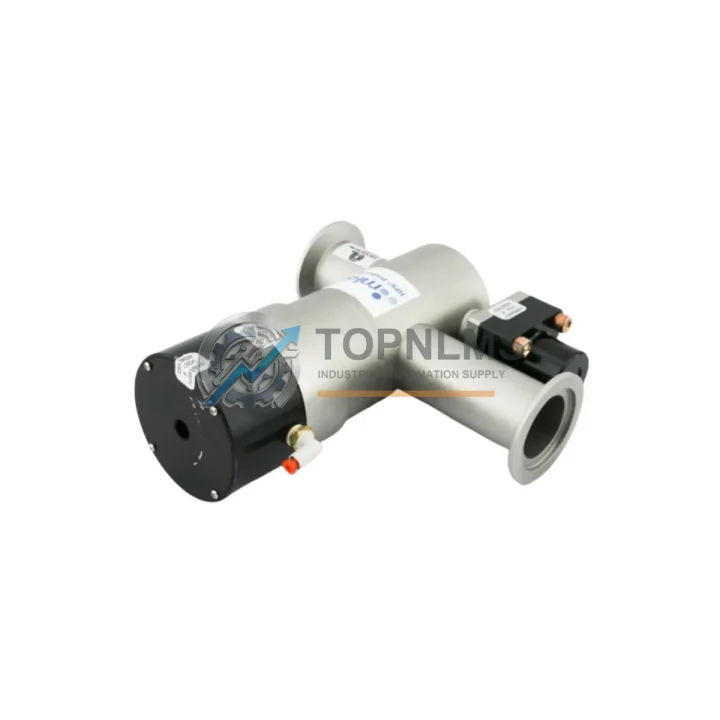

The Applied Materials 0190-53496 is an original two-stage inline vacuum control valve from the MKS ECOVARIO 414AR series, engineered for precision vacuum regulation in semiconductor fabrication, thin-film deposition, and advanced process equipment environments. Identified under cross-reference part numbers including XY-HRS 095CM200AD and 90401-20095, this valve is a critical motion-control and isolation component within vacuum chamber systems. Maintaining a verified stock of this spare part is a foundational element of any serious preventive maintenance program for Applied Materials process tools.

Unplanned downtime in semiconductor and industrial vacuum environments carries significant operational cost. A failed inline valve can halt an entire process chamber, triggering cascading delays across production schedules. Sourcing a pre-tested, original-specification replacement — rather than waiting on lead times during an emergency — is the single most effective strategy for minimizing mean time to repair (MTTR). The 0190-53496 ships fully tested, with documentation, and is backed by a 12-month warranty from TOPNLMS.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned maintenance window on an Applied Materials process tool, the inline vacuum valve is rarely the only component that warrants inspection. Experienced maintenance engineers treat a valve replacement as an opportunity to audit the entire vacuum circuit and associated control infrastructure. During the same downtime event, it is standard practice to inspect the MKS 651 pressure controller and its associated MKS 627D Baratron capacitance manometer, both of which work in closed-loop coordination with the ECOVARIO 414AR to regulate chamber pressure. A degraded pressure transducer signal can mask valve performance issues and lead to misdiagnosis.

The pneumatic actuator supply line and its inline solenoid valve assembly (commonly an SMC or Parker unit on Applied Materials platforms) should be checked for seal integrity and response time. Slow actuation is often the first symptom of a failing solenoid or a partially blocked pneumatic fitting — not the valve body itself. Similarly, the limit switch wiring harness and its connector at the chamber interface card should be inspected for corrosion or intermittent contact, as a faulty position signal can trigger false fault codes and unnecessary chamber vents.

Further along the vacuum circuit, the turbomolecular pump controller (such as a Pfeiffer TC 110 or Edwards TIC) and the roughing pump isolation valve are logical co-inspection targets. If the process chamber has been vented repeatedly due to valve faults, the foreline trap and cold trap assembly may also require servicing or replacement. Maintaining a small buffer stock of KF-40 and KF-25 centering rings with O-rings is advisable, as these are consumed during every vent-and-pump cycle and are frequently overlooked in spare parts inventories.

For facilities managing multiple Applied Materials tools, a consolidated spare parts strategy that includes the 0190-53496 valve, a spare MKS 651 controller board, and a set of chamber O-ring kits (specific to the Centura or Endura platform) can reduce emergency procurement lead times from weeks to hours. Proactive inventory of these components directly supports uptime targets and reduces the risk of a single-point-of-failure event cascading into a multi-day production loss.

Strategic Replacement Solutions

The Applied Materials 0190-53496 / ECOVARIO 414AR has been in service across multiple generations of Applied Materials process equipment. As fabs extend the operational life of legacy Centura and Endura platforms — often well beyond their original design horizon — sourcing original-specification spare parts becomes increasingly difficult through standard OEM channels. TOPNLMS specializes in exactly this gap: providing verified original components for systems that are no longer actively supported by the OEM’s standard parts distribution network.

Unlike aftermarket or reverse-engineered alternatives, the 0190-53496 maintains full dimensional and electrical compatibility with the original installation envelope. The integrated limit switch outputs match the original I/O card signal specifications, eliminating the need for wiring modifications or software parameter changes during replacement. This plug-and-play compatibility is critical in regulated fab environments where any hardware change may trigger a qualification or change-control review — using an original-specification part minimizes that burden.

For facilities transitioning from older ECOVARIO 414 variants to the 414AR configuration, the two-stage actuation profile offers improved process repeatability and reduced particle generation during valve cycling — a meaningful upgrade for advanced node processes where contamination control is paramount. TOPNLMS can advise on compatibility verification between legacy and current-revision part numbers prior to purchase.

Support FAQ

Q1: Is the 0190-53496 an original OEM part or a compatible replacement?
This is an original Applied Materials / MKS ECOVARIO 414AR-series component, not an aftermarket reproduction. Each unit is sourced from verified supply channels and undergoes pre-shipment functional testing covering actuation response and limit switch continuity before dispatch.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It begins from the date of shipment. TOPNLMS provides replacement or refund resolution for confirmed warranty claims. Warranty does not cover damage resulting from improper installation, contamination, or operation outside specified parameters.

Q3: How do I verify compatibility with my specific Applied Materials tool configuration?
Compatibility can be confirmed by matching the primary part number (0190-53496) and cross-referencing against your tool’s BOM or the chamber module part list. Cross-reference SKUs XY-HRS 095CM200AD and 90401-20095 are also valid identifiers for this component. If you require additional confirmation, contact TOPNLMS with your tool model and chamber configuration details prior to ordering.

Q4: What is the typical lead time and how is the part packaged for shipment?
In-stock units ship within 1–3 business days. The valve is packaged in anti-static, impact-resistant packaging with protective end caps on all vacuum-wetted surfaces to prevent contamination during transit. International shipments include full commercial documentation for customs clearance. Expedited shipping options are available upon request.
