Applied Materials 0200-39274 Original Industrial Spare Vacuum Compatible

Product Overview

Applied Materials 0200-39274 Original Industrial Spare Vacuum Compatible: Sustaining System Stability in Semiconductor Fabrication

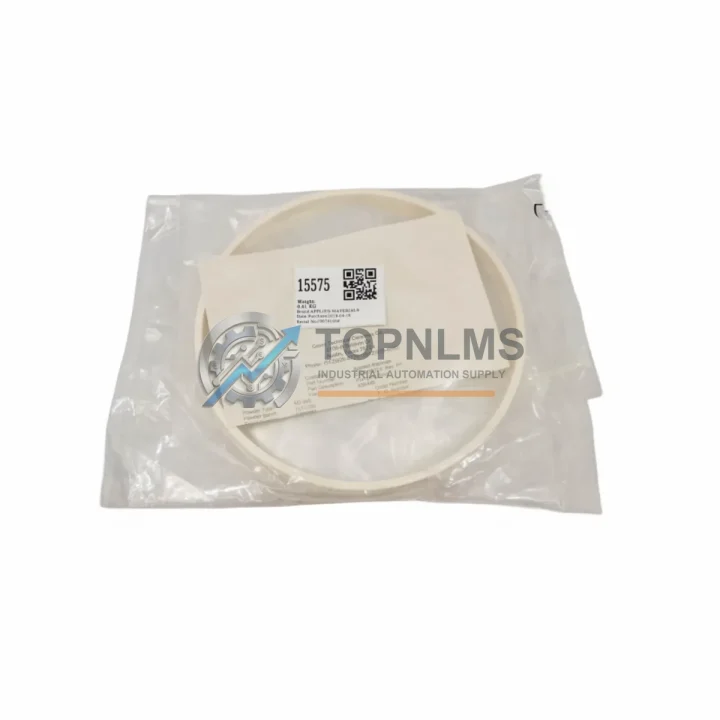

In high-throughput semiconductor fabrication environments, the integrity of every vacuum chamber component directly determines process yield, equipment uptime, and long-term operational cost. The Applied Materials 0200-39274 Pumping Ring is a precision-engineered original spare part designed to maintain the critical vacuum integrity of Applied Materials process chambers. Whether you are managing a scheduled preventive maintenance cycle, responding to an unplanned chamber vent event, or building a strategic spare parts inventory for your fab, the 0200-39274 is a foundational component that cannot be substituted with inferior alternatives.

This pumping ring is engineered to OEM specifications, ensuring dimensional accuracy, material compatibility, and sealing performance that match the original equipment design. Cross-reference part numbers include 1240316, FF-20BT1, and 0010-07586, making it compatible across multiple Applied Materials chamber configurations. Sourced from verified supply channels, each unit undergoes pre-shipment inspection and is backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy

A pumping ring replacement is rarely an isolated event. In a well-managed fab maintenance program, a chamber vent or scheduled PM window is the optimal opportunity to inspect and replace a broader set of wear components simultaneously — minimizing future downtime and maximizing mean time between maintenance (MTBM).

When replacing the 0200-39274 pumping ring, maintenance engineers should concurrently inspect the chamber O-ring kit (including lid and body O-rings), as elastomeric seals degrade in parallel with the pumping ring under repeated thermal cycling and vacuum stress. The slit valve door assembly and its associated slit valve O-rings should also be checked, since slit valve leakage is a common root cause of elevated chamber base pressure that accelerates pumping ring wear.

The turbomolecular pump (TMP) inlet screen and foreline trap are frequently overlooked during chamber PM but are critical to protecting the pumping system from particulate contamination. If the chamber has been running reactive chemistries, the gas distribution plate (GDP) or showerhead assembly should be inspected for deposition buildup that can affect gas flow uniformity and indirectly stress the vacuum sealing system.

For chambers equipped with electrostatic chucks (ESC), the ESC focus ring and edge ring are consumable components with PM intervals that often align with pumping ring replacement cycles. Stocking these alongside the 0200-39274 ensures a single PM event can restore the chamber to full process specification without waiting for additional parts.

On the electrical and control side, the chamber pressure transducer (Baratron or capacitance manometer) calibration should be verified during any chamber vent, as pressure measurement drift can mask early-stage vacuum degradation. The throttle valve controller and gate valve actuator should also be functionally tested, since mechanical wear in these components can cause pressure instability that is often misdiagnosed as a pumping ring failure.

Finally, the dry pump exhaust filter and N₂ purge line filter are low-cost consumables that should be replaced on a fixed schedule regardless of apparent condition — their failure can cause backstreaming contamination that shortens the life of every upstream vacuum component, including the pumping ring.

Strategic Replacement Solutions

The Applied Materials 0200-39274 is a direct OEM-specification replacement that eliminates the compatibility risk associated with aftermarket alternatives. For fabs operating legacy Applied Materials platforms — including older CVD and etch tool generations — sourcing original spare parts is increasingly challenging through standard distribution channels. TOPNLMS maintains verified inventory of hard-to-find Applied Materials chamber hardware, enabling maintenance teams to execute planned replacements without extended lead times.

By stocking the 0200-39274 as a ready spare, maintenance planners can convert unplanned chamber-down events into scheduled PM windows, reducing the average cost per downtime incident and improving overall equipment effectiveness (OEE). The OEM-spec dimensional tolerances of this pumping ring ensure that chamber qualification (leak-up rate test, base pressure verification) passes on the first attempt after installation — avoiding the repeated vent-pump cycles that consume technician time and accelerate O-ring wear when non-spec parts are used.

For multi-tool fabs running identical or similar chamber configurations, consolidating pumping ring inventory under a single verified part number (0200-39274 / 1240316 / FF-20BT1 / 0010-07586) simplifies procurement, reduces safety stock requirements, and enables cross-tool spare sharing during emergency maintenance scenarios.

Support FAQ

Q1: Is the 0200-39274 compatible with my specific Applied Materials chamber model?
A: The 0200-39274 is used across multiple Applied Materials CVD, etch, and PVD chamber platforms. Cross-reference your chamber BOM or PM kit part number against 1240316, FF-20BT1, or 0010-07586 to confirm fitment. Contact us with your tool model and chamber type for verification support.

Q2: What pre-shipment testing is performed on this part?
A: Each 0200-39274 unit undergoes dimensional inspection and visual quality verification prior to shipment. Parts are packaged in cleanroom-compatible protective packaging to prevent contamination or mechanical damage in transit.

Q3: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and dimensional non-conformance from the date of shipment. It does not cover damage resulting from improper installation, chemical exposure beyond OEM-specified process conditions, or physical mishandling. Warranty claims are processed promptly with replacement or refund options.

Q4: How should I plan my spare parts inventory for this component?
A: For fabs with 2+ Applied Materials chambers using this pumping ring, we recommend maintaining a minimum of 1–2 units as ready spares. Given the lead time variability for OEM chamber hardware, a forward stock of 90–180 days of consumption is a common industry practice for critical vacuum sealing components. Bulk pricing is available for multi-unit orders.
