Applied Materials 0190-21067 Original Industrial Spare ALD Compatible: System Stability and Industrial Spare Parts Maintenance Value

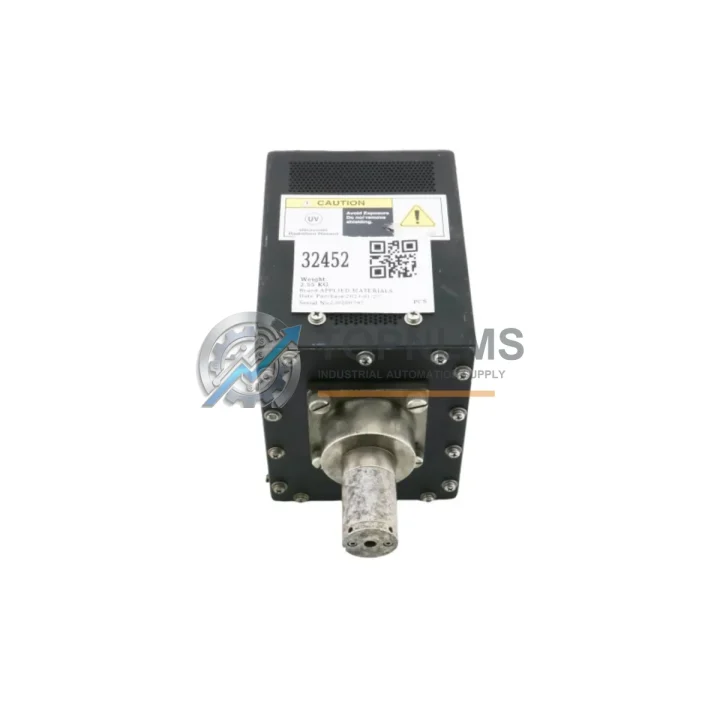

The Applied Materials 0190-21067 Loadlock Filter Diffuser Assembly is a precision-engineered original spare part designed for the ALD (Atomic Layer Deposition) Series semiconductor process equipment. Cross-referenced under part numbers ALD1244, PTC0200, and 3520784, this assembly plays a critical role in maintaining the integrity of the loadlock chamber environment — directly impacting deposition uniformity, contamination control, and overall system uptime.

In high-throughput semiconductor fabrication environments, unplanned downtime caused by a failed or degraded loadlock filter diffuser assembly can cascade into significant production losses. Stocking this original Applied Materials replacement part as part of a proactive spare parts inventory strategy is one of the most cost-effective decisions a maintenance team can make. Each unit shipped from TOPNLMS is tested, inspected, and backed by a 12-month warranty, ensuring you receive a verified, field-ready component.

Critical Technical Specs Table

Preventive Maintenance Strategy

The loadlock filter diffuser assembly (0190-21067) sits at the intersection of vacuum integrity and process gas management. When planning a scheduled preventive maintenance (PM) cycle on an Applied Materials ALD system, replacing this assembly should never be treated in isolation. A comprehensive PM approach requires evaluating the entire loadlock and transfer module ecosystem to prevent repeat failures and maximize mean time between maintenance (MTBM).

During a loadlock PM event, maintenance engineers should simultaneously inspect the loadlock gate valve assembly and its associated actuator seals — worn gate valve O-rings are a leading cause of vacuum degradation that accelerates filter diffuser fouling. The turbomolecular pump serving the loadlock chamber should be checked for bearing wear and pumping speed degradation, as reduced pumping efficiency increases particulate load on the diffuser assembly. If the system uses a dry roughing pump (such as an Edwards or Ebara model compatible with AMAT ALD platforms), its exhaust filter and tip seal condition should be verified at the same interval.

The loadlock pressure transducer and Baratron capacitance manometer should be calibrated or replaced if drift is detected — inaccurate pressure readings can mask early-stage filter blockage. Inspect the process gas line filters and mass flow controllers (MFCs) upstream of the loadlock; a partially blocked MFC or contaminated gas filter will accelerate diffuser fouling and compromise deposition uniformity. For ALD systems running aggressive precursor chemistries, the precursor delivery module and its associated ampoule valve assemblies should be inspected for residue buildup that may migrate downstream.

The wafer transfer robot end-effector and its ceramic or quartz contact pads should be examined for particulate generation — robot-generated particles are a common but overlooked source of loadlock contamination. Finally, the loadlock chamber liner and any showerhead or diffuser plate components in the adjacent process module should be assessed for deposition buildup that may indicate cross-contamination pathways. Stocking these components alongside the 0190-21067 assembly ensures that a single PM event can fully restore system performance without secondary call-backs.

Strategic Replacement Solutions

The Applied Materials 0190-21067 is a direct OEM replacement for aging or failed loadlock filter diffuser assemblies across the ALD Series platform. As semiconductor fabs extend the operational life of installed equipment beyond original design horizons — often 10 to 15+ years — sourcing original spare parts for legacy AMAT systems becomes increasingly challenging through standard distribution channels.

TOPNLMS specializes in bridging this supply gap. By maintaining inventory of hard-to-find original Applied Materials components, we enable maintenance teams to execute like-for-like replacements without the risk of compatibility issues introduced by non-OEM alternatives. The 0190-21067 assembly preserves the original loadlock chamber geometry, gas flow characteristics, and filtration efficiency specified in the AMAT ALD process recipe — critical factors for maintaining process qualification (PQ) status and avoiding costly requalification runs.

For facilities managing multiple ALD tools or running 24/7 production schedules, we recommend maintaining a minimum of two units of the 0190-21067 in on-site spare parts inventory. This buffer supports rapid swap-out during unplanned downtime events, reducing mean time to repair (MTTR) from hours to minutes. Combined with a documented PM schedule and a pre-positioned kit of associated consumables, this strategy directly reduces the cost-per-wafer impact of equipment maintenance.

Each unit dispatched by TOPNLMS undergoes pre-shipment functional inspection and is packaged in anti-static, cleanroom-compatible materials to preserve component integrity during transit. Standard lead time is 3–7 business days for in-stock units, with expedited shipping available for critical downtime situations.
