Applied Materials 0100-70034-CDN396R Upgrade Solution for Centura

Product Overview

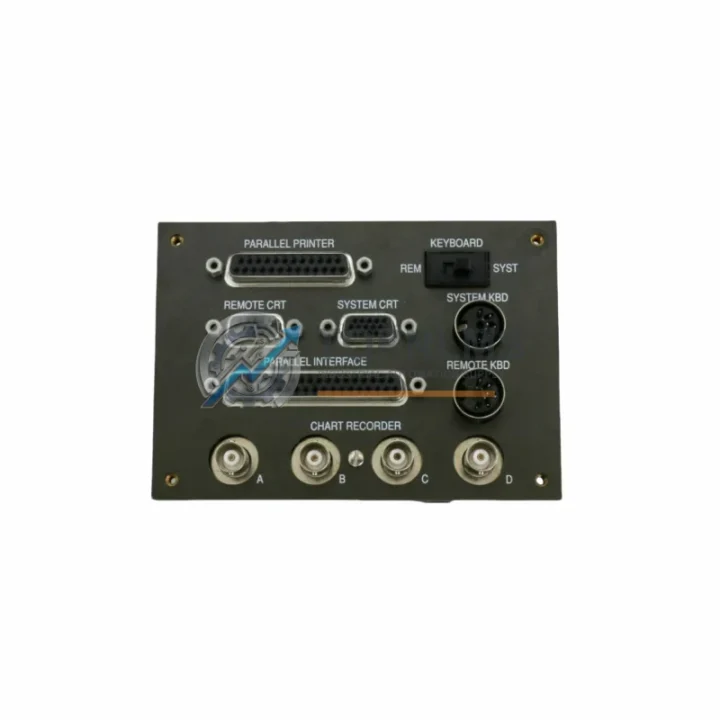

Applied Materials 0100-70034-CDN396R Upgrade Solution for Centura: Smooth Transition from Legacy EP VGA Interconnect Systems

When your Applied Materials Centura or Producer platform reaches end-of-life on a critical PCB assembly, unplanned downtime can cascade across your entire fab line. The 0100-70034-CDN396R PCB EP VGA Interconnect Board is a direct-replacement solution engineered to restore full system functionality with minimal re-engineering effort. Whether you are retiring an aging Centura mainframe, consolidating spare-parts inventory, or executing a planned retrofit of your EP (Etch Process) chamber control architecture, this board delivers the electrical compatibility, form factor, and signal integrity your process demands.

The 0100-70034-CDN396R serves as the VGA-level interconnect layer between the chamber controller and the EP process module. In legacy Centura configurations, this board interfaces directly with the chamber I/O backplane, routing analog and digital signals between the host controller PCB and downstream actuator and sensor assemblies. Facilities that have been running the same Centura mainframe for 10–15 years frequently encounter cracked traces, failed connectors, or corrupted EEPROM on this board — all of which manifest as chamber communication faults, recipe abort errors, or loss of endpoint detection signals.

Replacing the 0100-70034-CDN396R does not require firmware re-flashing or recipe modification in most standard Centura configurations. The board is designed to slot into the existing CDN396 card cage without mechanical rework. Connector pinouts, card-edge dimensions, and signal voltage levels are preserved to match the original Applied Materials specification, ensuring that your chamber qualification (CQ) and process qualification (PQ) runs can proceed immediately after swap-out.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Centura chamber retrofit rarely involves a single board swap. In practice, engineers replacing the 0100-70034-CDN396R often discover that adjacent assemblies in the same card cage have accumulated similar wear. The CDN396 backplane assembly and the 0100-76048 chamber I/O board are the most common co-replacements, as they share the same power rail and signal bus. If your Centura mainframe is also exhibiting robot arm positioning errors, the 0100-09957 robot controller PCB should be inspected in parallel — faults on the VGA interconnect can mask underlying robot encoder signal degradation.

For facilities upgrading from an older Centura DPS (Decoupled Plasma Source) chamber to a newer process module, the 0190-13325 RF match network controller board is frequently part of the same upgrade kit. Replacing the EP VGA interconnect without addressing the RF match controller can leave residual impedance-matching errors that affect etch uniformity. Similarly, the 0100-35140 process kit monitor PCB and the 0100-76049 analog I/O expansion board are often refreshed during the same planned maintenance window to eliminate single-point-of-failure risks across the chamber control stack.

On the power distribution side, the 0010-09957 DC power supply module that feeds the CDN396 card cage should be load-tested before commissioning the new interconnect board. A marginal power supply can cause intermittent resets on the replacement PCB, which are difficult to distinguish from board-level faults during initial qualification. If your facility is also modernizing the operator interface, the 0100-70100 HMI interface board integrates directly with the Centura host controller and can be upgraded concurrently without additional wiring changes.

Retrofit Guidance FAQ

Q: Do I need to re-qualify the chamber after replacing the 0100-70034-CDN396R?
A: In most standard Centura configurations, a board-level swap of the EP VGA interconnect requires a chamber qualification run (typically a wet clean + CQ wafer sequence) but does not require a full process re-qualification. Consult your site’s change-control procedure for specifics.

Q: Is the connector pinout identical to the original Applied Materials part?
A: Yes. The 0100-70034-CDN396R maintains the original card-edge and ribbon connector pinout. No wiring harness modifications are required.

Q: Can this board be used in both Centura and Producer platform mainframes?
A: The board is compatible with both Centura and Producer platform configurations that use the CDN396 card cage. Verify your mainframe’s cage revision before installation.

Q: What communication protocols does this board support?
A: The EP VGA interconnect operates on the internal Applied Materials proprietary VME-derived backplane bus. It does not require external fieldbus configuration (no PROFIBUS, DeviceNet, or EtherNet/IP setup needed).

Q: What if the replacement board does not resolve the chamber fault?
A: Our technical team can assist with fault isolation. If the board is confirmed defective on arrival, it is covered under the 12-month warranty with full replacement support.

Warranty Assurance

Every 0100-70034-CDN396R shipped by TOPNLMS undergoes pre-shipment functional verification including visual inspection, connector integrity check, and power-on continuity testing. The board is covered by a 12-month warranty from the date of shipment. If a defect is identified within the warranty period, we provide priority replacement dispatch — typically within 2 business days — to minimize your chamber downtime.

Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. We support customers across Asia-Pacific, Europe, and North America with export documentation, customs declarations, and expedited freight options. Stock is maintained in Xiamen for fast dispatch to global destinations.

For procurement teams requiring traceability documentation, we can provide inspection reports and shipping manifests upon request. Volume pricing is available for facilities purchasing multiple units as part of a planned spare-parts program.
