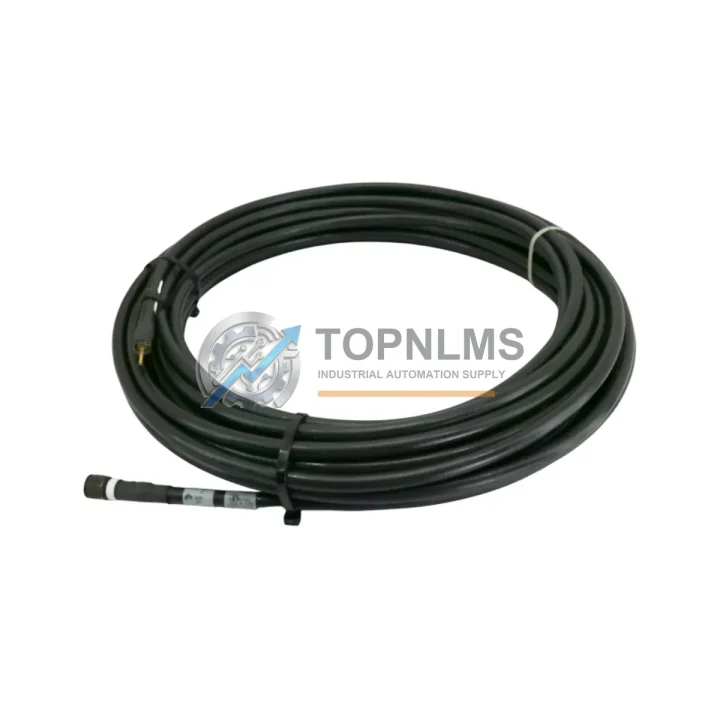

Applied Materials 0150-23121 Ruggedized Cable Assembly

Product Overview

Applied Materials 0150-23121 Ruggedized Shielded Cable Assembly: Industrial Resilience for Harsh Process Environments

The Applied Materials 0150-23121 is a precision-engineered, ruggedized shielded cable assembly purpose-built for the extreme demands of semiconductor CVD (Chemical Vapor Deposition) and plasma etch process chambers. Designed to operate reliably inside the Centura, Producer, and Endura platform tool families, this cable assembly delivers consistent signal integrity and mechanical durability in environments characterized by high RF energy, corrosive process gases, elevated temperatures, and continuous vibration from vacuum pump systems and robotic transfer mechanisms.

In semiconductor fabrication facilities, even a single cable failure can trigger unplanned downtime costing tens of thousands of dollars per hour. The 0150-23121 addresses this risk with multi-layer EMI/RFI shielding, high-temperature-rated insulation, and precision-crimped terminations that maintain contact resistance within specification across thousands of thermal cycles. Its construction meets the rigorous internal quality standards Applied Materials applies to all chamber-critical interconnects, making it a direct OEM-equivalent replacement for field service and preventive maintenance programs.

Rugged Specifications Table

Comprehensive Protection Solutions

Semiconductor process tools are tightly integrated systems where every interconnect plays a role in overall chamber stability. The 0150-23121 cable assembly typically interfaces with the Applied Materials 0190-series RF match network assemblies and the 0100-series chamber lid sensor harnesses, ensuring that RF power delivery and endpoint detection signals remain clean and uninterrupted during plasma ignition and process runs. In the same control cabinet, Applied Materials 0660-series I/O interface boards rely on properly shielded cabling to prevent cross-talk from corrupting process recipe execution.

For facilities running mixed-generation tool fleets, the 0150-23121 is also compatible with legacy Applied Materials 0010-75433 and 4022.192.71178 cable specifications, reducing the number of unique part numbers that must be stocked. Paired with Applied Materials 0200-series chamber heater power cables and 0140-series thermocouple extension assemblies, it forms a complete thermal and electrical interconnect solution for CVD module maintenance. Facilities managing Endura PVD platforms will find that the same shielding architecture used in the 0150-23121 is consistent with Applied Materials 0150-09xxx series interconnects used in degas and pre-clean chambers, simplifying technician training and spare-parts governance.

When integrated into a preventive maintenance kit alongside Applied Materials 0020-series O-ring kits and 0040-series ceramic insulator sets, the 0150-23121 supports a comprehensive chamber refurbishment cycle that minimizes mean time to repair (MTTR) and extends tool qualification intervals.

Application in Critical Infrastructure

The 0150-23121 shielded cable assembly is deployed across some of the most demanding production environments in the global semiconductor supply chain. In 300 mm wafer fabrication fabs, where Centura and Producer platforms run 24/7 across logic, memory, and power device process nodes, this cable assembly supports continuous operation of CVD tungsten, oxide, and nitride deposition modules. Any signal degradation in the chamber sensor or actuator harness can cause wafer-level defects, recipe drift, or unplanned chamber wet cleans — all of which carry significant yield and cost implications.

In compound semiconductor and LED manufacturing facilities, where MOCVD and plasma etch tools operate with aggressive precursor chemistries, the corrosion-resistant shielding of the 0150-23121 provides a critical barrier against chemical ingress into connector bodies. Similarly, in flat panel display (FPD) and solar cell production lines using large-area PECVD systems, the mechanical robustness of this cable assembly ensures reliable operation despite the higher vibration loads generated by larger chamber footprints and more powerful vacuum systems.

For advanced packaging and MEMS foundries running etch and deposition steps on Applied Materials platforms, maintaining a qualified spare of the 0150-23121 in the tool kit is standard practice among experienced process engineers. Its availability as a stocked, tested spare at TOPNLMS means that facilities can avoid the extended lead times — sometimes 8–16 weeks — associated with ordering directly through OEM channels during peak demand periods.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If a unit fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement or full refund after review. Claims are initiated by contacting [email protected] with the order number and a brief failure description.

Q2: How is each unit tested before shipment?
Every 0150-23121 unit undergoes visual inspection for connector integrity, shielding continuity, and insulation condition prior to dispatch. Where applicable, electrical continuity and insulation resistance tests are performed to confirm the assembly meets OEM-equivalent performance standards before it leaves our facility.

Q3: Is this cable assembly compatible with both Centura and Producer platform configurations?
Yes. The 0150-23121 is designed to serve multiple Applied Materials platform configurations within the CVD and etch module families. Cross-reference part numbers 4022.192.71178 and 0010-75433 confirm compatibility across tool generations. If you are uncertain about fitment for a specific chamber configuration, our technical team can verify compatibility using your tool serial number or BOM reference.

Q4: Can TOPNLMS support long-term or recurring supply of this part?
Yes. TOPNLMS maintains ongoing inventory of high-demand Applied Materials interconnect assemblies and can support blanket purchase orders, scheduled releases, and emergency spot buys. For facilities with planned PM cycles or tool qualification schedules, we recommend establishing a standing supply arrangement to ensure part availability without lead-time risk.
