Applied Materials 0150-76456 Original Industrial Spare 0150 Compatible

Product Overview

Applied Materials 0150-76456 Original Industrial Spare: System Stability for CVD/PVD Process Modules

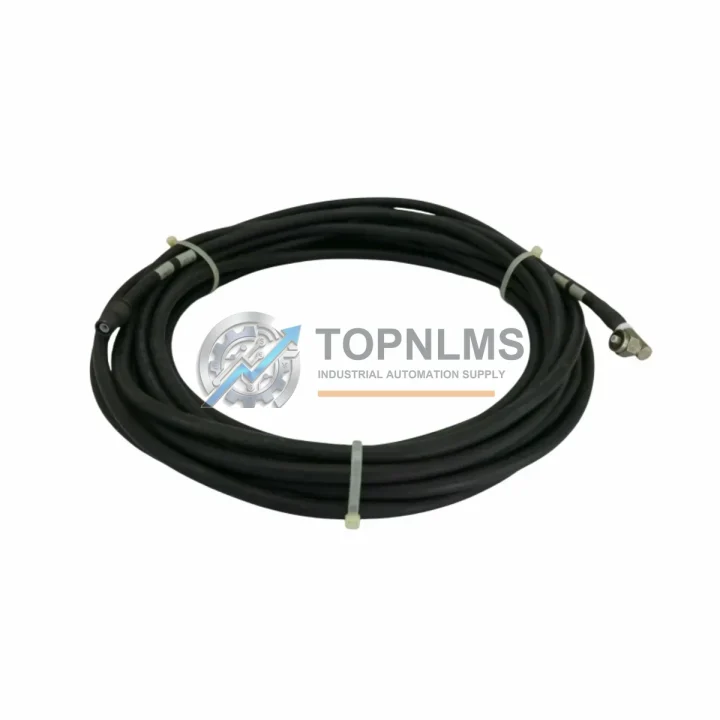

The Applied Materials 0150-76456 multi-conductor cable assembly is a precision-engineered original spare part designed for CVD (Chemical Vapor Deposition) and PVD (Physical Vapor Deposition) process modules widely deployed in semiconductor fabrication facilities. Maintaining signal integrity and power continuity within these high-vacuum, high-temperature environments demands components built to exact OEM specifications. The 0150-76456 delivers exactly that — a direct-fit, drop-in replacement that restores full system functionality without recalibration or process re-qualification.

For maintenance engineers managing aging fab equipment, unplanned downtime caused by cable degradation or connector failure can translate to tens of thousands of dollars in lost wafer output per hour. Stocking the 0150-76456 as a certified spare eliminates that risk. Each unit shipped from TOPNLMS undergoes pre-shipment electrical continuity and insulation resistance testing, ensuring it arrives ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

Cable assemblies in CVD/PVD process modules operate under continuous thermal cycling, mechanical vibration from vacuum pump systems, and exposure to reactive process gases. A disciplined preventive maintenance (PM) schedule should treat the 0150-76456 as part of a broader cable and interconnect inspection program rather than a standalone replacement event.

During scheduled chamber PM cycles — typically every 250,000 to 500,000 RF hours or per OEM PM kit intervals — technicians should simultaneously inspect the 0190-series RF match network cables and adjacent 0150-series signal harnesses routed through the same cable tray. Degraded insulation on neighboring cables is a leading indicator that the 0150-76456 assembly is approaching end-of-life even if it has not yet failed. At the same time, 0010-series process kit components and 0020-series chamber liner assemblies should be evaluated, as particulate contamination from worn chamber parts accelerates cable jacket degradation.

For the broader control cabinet, engineers should verify the condition of the Applied Materials 0100-series I/O interface boards and 0660-series power distribution modules that terminate the signal paths carried by this cable assembly. A cable in perfect condition paired with a corroded terminal block or a failing I/O card will still produce intermittent faults. Equally important are the 0190-series RF generator interconnects and 0150-series thermocouple extension cables that share the same cable management channels — these should be bundled into the same PM work order to minimize repeat chamber access events.

For facilities running multiple chambers on a single platform (e.g., Centura or Endura multi-chamber systems), a recommended practice is to maintain a minimum of two 0150-76456 assemblies per platform in on-site spares inventory. This supports rapid swap-out during unplanned downtime without waiting for international logistics. Pairing this with a stock of 0150-series connector housings, 0190-series coaxial adapters, and standard M4/M5 cable clamp hardware ensures that a complete cable replacement can be executed within a single maintenance shift.

Strategic Replacement Solutions

The 0150-76456 is a direct OEM replacement for the original Applied Materials cable assembly installed at the factory. Unlike aftermarket alternatives, this original part requires no pin-out adaptation, no connector modification, and no software parameter adjustment — it restores the chamber to its qualified baseline configuration immediately upon installation.

For facilities managing end-of-life CVD/PVD equipment where OEM support has been discontinued, sourcing original 0150-series cable assemblies from authorized distributors like TOPNLMS is the most cost-effective path to system life extension. Replacing a degraded cable assembly at a fraction of the cost of a chamber upgrade preserves capital expenditure budgets while maintaining process yield. The 0150-76456 is fully compatible with legacy Applied Materials software control stacks, meaning no firmware updates or process recipe modifications are required post-installation.

Facilities transitioning from corrective maintenance to predictive maintenance models should incorporate cable assembly replacement intervals into their CMMS (Computerized Maintenance Management System) as a scheduled task tied to chamber RF hours or process run counts. This eliminates the reactive replacement cycle that drives emergency procurement costs and extended lead times. When planning a system-wide cable audit, engineers should also cross-reference the Applied Materials 0150-09947 harness assembly and 0150-35261 power cable — both commonly found in the same process module wiring runs — to consolidate procurement and reduce per-shipment logistics overhead.

Support FAQ

Q1: Is the 0150-76456 covered under a warranty?
Yes. All units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. Warranty coverage includes manufacturing defects and pre-existing electrical failures identified during incoming inspection. Each unit is tested for continuity and insulation resistance before dispatch.

Q2: How do I verify compatibility with my specific chamber configuration?
The 0150-76456 is designed for Applied Materials CVD/PVD process modules within the Centura, Endura, and Producer platform families. To confirm fitment for your specific chamber revision, provide your chamber serial number and BOM revision to our technical team at [email protected]. We will cross-reference against our parts database before shipment.

Q3: What is the recommended inventory quantity for a multi-chamber fab?
For facilities operating 3–6 chambers on a single platform, we recommend maintaining 2–4 units of the 0150-76456 in on-site spares. For larger fabs with 6+ chambers, a minimum of 6 units is advisable to support simultaneous PM events and unplanned failures without supply chain dependency.

Q4: How quickly can the 0150-76456 be shipped, and what documentation is provided?
In-stock units ship within 1–3 business days from our warehouse. Each shipment includes a packing list, part number confirmation label, and test report. Export documentation (commercial invoice, packing declaration) is provided for international orders. Expedited shipping options are available upon request.
