Applied Materials 0100-20313 Replacement for JAGUAR-II

Product Overview

Applied Materials 0100-20313 Replacement for JAGUAR-II: Seamless Transition & Compatibility Upgrade

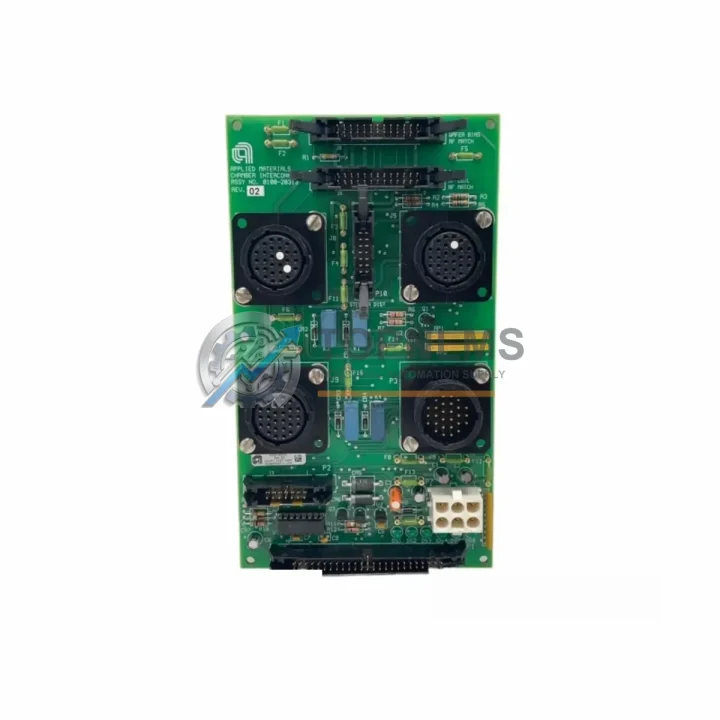

The Applied Materials (AMAT) 0100-20313 Interconnect Board (assembly reference 2305618-A) is a critical subsystem component within the JAGUAR-II platform, widely deployed in CVD, etch, and deposition process chambers across semiconductor fabs worldwide. As original AMAT spare inventories tighten and lead times from OEM channels extend to 16–26 weeks, many process engineers and procurement teams are actively seeking qualified replacement and upgrade solutions that preserve chamber uptime without compromising process integrity.

Our replacement 0100-20313 interconnect board is sourced, inspected, and shipped from Xiamen, China, with full functional verification prior to dispatch. Whether you are retiring an aging JAGUAR-II mainframe, consolidating spare inventory across multiple tools, or executing a planned retrofit to extend equipment life, this board provides a direct-fit, pin-compatible solution that eliminates the need for wiring harness modifications or firmware re-flashing in most standard configurations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful JAGUAR-II interconnect board replacement rarely happens in isolation. During the retrofit process, field engineers frequently identify adjacent components that benefit from simultaneous replacement to avoid repeat downtime events. When replacing the 0100-20313, it is common practice to inspect and, where necessary, co-replace the AMAT 0100-20312 I/O interface board that shares the same card cage, as well as the 0190-xxxxx series power distribution module that feeds the backplane rail. If the system is running an older revision of the AMAT 0100-09808 system controller board, this is an ideal window to upgrade that assembly as well, since the interconnect board revision level must be matched to the controller firmware baseline.

Communication integrity across the JAGUAR-II platform depends on the health of the VME backplane and associated ribbon cable assemblies. During board swap, technicians should verify continuity on the 0620-xxxxx series signal cable harness connecting the interconnect board to the process module I/O rack. For facilities running multiple JAGUAR-II tools on a shared fab network, the AMAT 0100-35xxx Ethernet/SECS-II gateway module is frequently upgraded in the same maintenance window to bring the tool into compliance with current MES integration standards.

If the retrofit scope extends to the process chamber side, the AMAT 0010-xxxxx chamber I/O terminal block assembly and associated signal isolation modules should be inspected for drift or contact wear. Facilities performing a broader platform migration from JAGUAR-I to JAGUAR-II architecture will also need to account for the 0100-20200 series legacy adapter board to bridge older wiring harness pinouts during the transition period. Our team can advise on bill-of-materials alignment for multi-board retrofit projects upon request.

Retrofit Guidance FAQ

Q: Does replacing the 0100-20313 require any wiring changes?
A: In standard JAGUAR-II configurations, no wiring modifications are required. The replacement board uses the same edge connector pinout and backplane slot position. Always verify the revision suffix on the board label against your system’s BOM before installation.

Q: Will the existing AMAT host software recognize the replacement board?
A: Yes. The replacement board is designed to be transparent to the AMAT host software stack. No driver updates or re-configuration of the SECS/GEM communication layer are required in typical deployments.

Q: How do I verify communication protocol compatibility?
A: The 0100-20313 operates on the JAGUAR-II internal VME-derived serial bus. Confirm your system’s backplane revision is compatible with the 2305618-A assembly revision. Contact our technical team with your system serial number for a pre-purchase compatibility check.

Q: What if my card cage has physical space constraints from a previous non-standard installation?
A: The replacement board matches OEM dimensions exactly. If a previous repair introduced non-standard brackets or standoffs, these should be removed and OEM-spec hardware reinstalled prior to board insertion.

Q: Can this board be used during a JAGUAR-I to JAGUAR-II migration?
A: The 0100-20313 is a JAGUAR-II native component. For cross-generation migrations, a legacy adapter assembly is required at the I/O harness level. We recommend a full BOM review before ordering for cross-platform retrofit projects.

Warranty Assurance

Every 0100-20313 interconnect board shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, connector integrity inspection, and visual examination for component-level defects. Units that do not pass our outgoing quality check are quarantined and not shipped.

In the event of a warranty claim, our after-sales team responds within 1 business day. Defective units are eligible for replacement or full refund at the buyer’s discretion. We maintain a reserve stock of tested units to support rapid warranty replacements without extended lead times. All warranty claims are processed with full traceability back to the original shipment batch.

For procurement teams requiring documentation, we can provide a certificate of conformance, packing list, and commercial invoice aligned with your import compliance requirements. Expedited shipping options (DHL Express, FedEx International Priority) are available for urgent replacement scenarios where minimizing tool downtime is the primary objective.
