Applied Materials 0100-01577 Replacement for Centura: Smooth Transition & Legacy System Upgrade

When your Applied Materials Centura platform experiences a failure in the 0100-01577 PCB Assembly — the semiconductor process control module responsible for coordinating chamber-level I/O, process recipe execution, and real-time sensor feedback — unplanned downtime can cost tens of thousands of dollars per hour. TOPNLMS supplies verified replacement and upgrade units for the Applied Materials 0100-01577, enabling fabs and OEM service teams to restore production with minimal disruption to existing wiring harnesses, chamber configurations, and process programs.

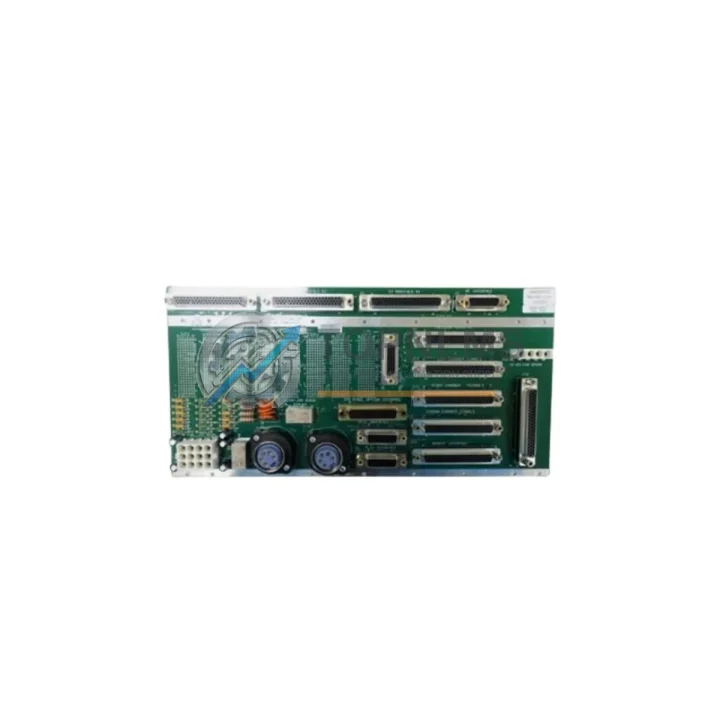

The 0100-01577 is a multi-layer PCB assembly deployed across Applied Materials Centura mainframe platforms, including the Centura HP, Centura XT, and related cluster tool configurations. It interfaces directly with the system’s VME-based backplane architecture, communicating with the host controller via proprietary Applied Materials serial protocols and, in later revisions, through standardized RS-422 and SEMI E5 (SECS/GEM) communication layers. Replacement units supplied by TOPNLMS are tested to match the original board’s connector pinout, signal timing, and firmware compatibility, ensuring that existing chamber wiring, thermocouple inputs, RF match network control lines, and endpoint detection signal paths remain fully operational without re-termination.

For facilities migrating from end-of-life Centura configurations to newer Applied Materials platforms — or consolidating spare parts inventory ahead of a planned tool refresh — the 0100-01577 replacement also serves as a bridge component. It allows engineering teams to maintain process continuity on legacy chambers while qualification runs are completed on upgraded hardware. This is particularly relevant when the broader system includes components such as the Applied Materials 0100-09042 RF Generator Interface Board, the 0100-76038 Chamber Controller PCB, or the 0100-09040 Process I/O Module, all of which share the same VME rack and backplane power distribution. Replacing the 0100-01577 without disturbing adjacent boards in the rack is straightforward, as the module uses a standard VME form factor with a front-panel extraction handle and keyed edge connector.

In retrofit scenarios where the original 0100-01577 has been damaged by electrostatic discharge, power surge, or thermal stress, TOPNLMS recommends a systematic approach: first verify backplane slot integrity and VME bus termination, then confirm that the 0100-76038 Chamber Controller is supplying correct +5 V and ±12 V rails before seating the replacement board. If the system also uses the Applied Materials 0100-09041 Analog I/O Expansion Module or the 0100-09043 Digital I/O Interface Board in adjacent slots, these should be inspected for correlated faults before returning the chamber to process. For Centura systems running older versions of the Applied Materials AMAT Process Control Software, a firmware revision check on the replacement 0100-01577 is advisable to ensure compatibility with the host’s recipe management layer.

Physical installation requires no mechanical modification. The 0100-01577 occupies a single VME slot, draws power from the mainframe’s internal power supply — typically the Applied Materials 0190-35964 Power Supply Assembly — and connects to the chamber’s signal distribution board via a standard 96-pin DIN 41612 connector. No additional mounting hardware, DIN rail adapters, or custom cable assemblies are required. The replacement board ships with protective anti-static packaging, and TOPNLMS includes a pre-shipment functional test report confirming signal integrity across all I/O channels.

For facilities managing a broader Centura spare parts program, the 0100-01577 is frequently stocked alongside the Applied Materials 0100-09044 Endpoint Detection Interface Module and the 0100-76039 System Supervisor PCB, both of which are subject to the same end-of-life supply constraints from the original manufacturer. TOPNLMS maintains inventory of these related assemblies and can fulfill multi-line purchase orders to consolidate inbound freight and reduce per-unit logistics costs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 0100-01577 replacement is rarely a single-board event. In most Centura retrofit projects, the process control module is replaced as part of a broader spare parts replenishment or system stabilization effort. TOPNLMS stocks the full range of associated assemblies to support complete chamber recovery. The Applied Materials 0100-76038 Chamber Controller PCB and the 0100-09040 Process I/O Module are the most frequently co-ordered items, as they share the same VME rack and are subject to correlated aging failures. The 0100-09041 Analog I/O Expansion Module and 0100-09043 Digital I/O Interface Board are also commonly replaced in the same service window to eliminate latent fault risk across the I/O subsystem.

For facilities upgrading communication infrastructure alongside the PCB replacement, the 0100-09042 RF Generator Interface Board and the 0100-09044 Endpoint Detection Interface Module are available from TOPNLMS inventory. Where the mainframe power supply — typically the 0190-35964 Power Supply Assembly — shows signs of output ripple or voltage droop that may have contributed to the original board failure, TOPNLMS can supply a replacement power assembly to complete the corrective maintenance scope. All components are shipped with anti-static packaging, individual test documentation, and are covered under the same 12-month warranty policy.

Retrofit Guidance FAQ

Q: Will the replacement 0100-01577 work with my existing Centura chamber wiring without modification?
A: Yes. The replacement unit uses the same 96-pin DIN 41612 connector and identical pin assignments as the original. No re-termination, cable extension, or wiring harness modification is required. Simply extract the failed board using the front-panel handle and seat the replacement in the same VME slot.

Q: Do I need to reload process recipes or reconfigure the host controller after replacement?
A: In most cases, no. The 0100-01577 does not store process recipes locally; recipe data resides on the host controller running AMAT Process Control Software. However, if your system is running a firmware version older than the replacement board’s embedded firmware, a compatibility check is recommended before returning the chamber to production. TOPNLMS can advise on firmware revision matching upon request.

Q: Is the replacement board compatible with both RS-422 and SECS/GEM communication configurations?
A: Yes. The replacement 0100-01577 supports both RS-422 serial communication and SEMI E5 (SECS/GEM) protocol layers, consistent with the original Applied Materials specification. No communication parameter changes are required at the host controller or fab automation system level.

Q: What is the physical installation space requirement?
A: The 0100-01577 occupies a single VME slot in the Centura mainframe rack. No additional space, DIN rail, or mounting hardware is required. The replacement board is dimensionally identical to the original and installs without rack modification.

Q: How should I handle ESD precautions during installation?
A: Standard semiconductor fab ESD protocols apply. Use a grounded wrist strap and ESD-safe mat. The replacement board ships in anti-static packaging and should remain in that packaging until the moment of installation. Avoid handling the board by its edge connectors.

Q: What if the replacement board does not resolve the fault condition?
A: TOPNLMS provides a 12-month warranty covering defects in materials and workmanship. If the replacement unit does not resolve the fault, our technical support team will assist with root cause analysis. If the board is confirmed defective, we will arrange a replacement or full refund. Correlated faults in adjacent VME modules — such as the 0100-76038 or 0100-09040 — should be investigated as part of the diagnostic process.

Warranty Assurance

Every Applied Materials 0100-01577 replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a full functional test covering all I/O channels, communication interfaces, and power rail integrity. A written test report is included with every shipment, documenting the specific tests performed and the results obtained.

In the event of a warranty claim, TOPNLMS will respond within one business day to initiate the return and replacement process. Defective units are accepted for return within the warranty period without restocking fees. Replacement boards are dispatched from our Xiamen warehouse within two business days of receiving the returned unit and confirming the defect. For critical production environments where downtime cost is high, TOPNLMS can arrange advance replacement shipment — a new board is shipped before the defective unit is returned — subject to a refundable deposit.

TOPNLMS ships globally via DHL Express, FedEx International Priority, and UF Express, with typical transit times of 3–7 business days to most destinations. All shipments are fully insured and tracked. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared in compliance with international trade regulations to facilitate smooth customs clearance.

For procurement teams requiring formal quotations, lead time confirmation, or vendor qualification documentation, please contact our sales team directly. TOPNLMS supports NET payment terms for qualified institutional buyers and can provide product datasheets, test reports, and compliance documentation upon request.
