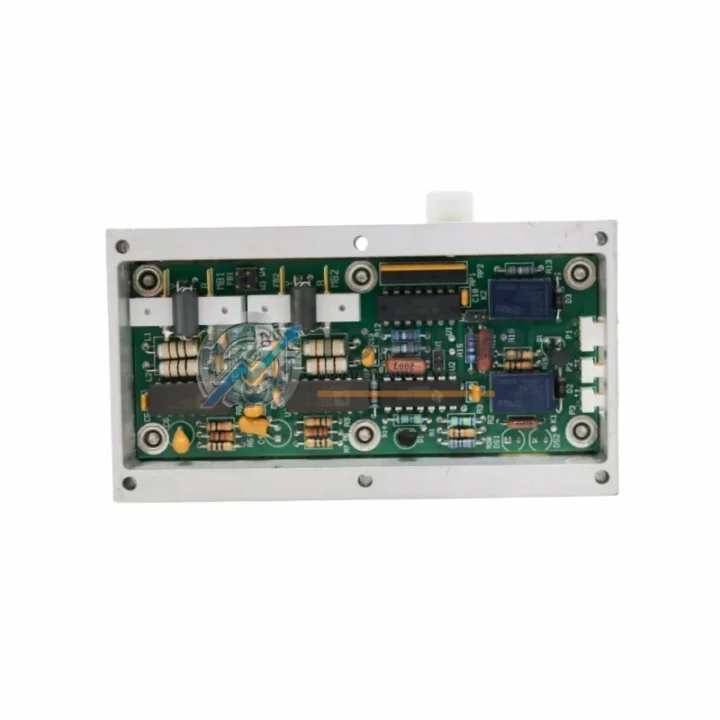

Applied Materials 0090-36221 Replacement for GIGA-F Series

Product Overview

Applied Materials 0090-36221 Replacement for GIGA-F Series: Seamless Transition & Legacy System Compatibility

When your Applied Materials GIGA-F platform raises a thermocouple overtemperature interlock fault and the original 0090-36221 module is no longer available through standard OEM channels, unplanned downtime becomes a critical production risk. This replacement module — cross-referenced as 0190-04562 and 0040-95291 — is engineered to restore full interlock functionality with zero modifications to your existing wiring harness, rack mounting position, or process recipe parameters. Whether you are maintaining a CVD, etch, or implant chamber that has been in service for over a decade, this drop-in solution is designed to bridge the gap between legacy hardware and continued operational reliability.

The GIGA-F platform was widely deployed across Applied Materials’ 200mm and early 300mm process equipment generations. Many facilities still operate these systems in high-mix, low-volume production environments or as dedicated R&D tools. The 0090-36221 TC Amp & Overtemp Interlock module sits at the heart of the chamber’s thermal safety architecture, monitoring thermocouple signals from susceptor heaters, chamber walls, and gas delivery components. A failed or degraded module can trigger false interlock trips, mask genuine overtemperature events, or prevent the chamber from reaching process setpoint — all of which translate directly to lost wafer starts and engineering hours.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 0090-36221 module is rarely an isolated event. In most GIGA-F chamber refurbishment or preventive maintenance projects, engineers simultaneously address adjacent components that share the same card cage, backplane, or thermal monitoring loop. The GIGA-F system controller backplane distributes power and communication signals to multiple I/O and interlock boards; if the TC Amp module has failed, it is prudent to inspect the neighboring analog input board (often referenced under the 0090-3xxxx family) and the chamber I/O interface module that aggregates interlock status signals before forwarding them to the main process controller.

Many facilities undertaking a GIGA-F refurbishment also replace the associated power distribution module, which supplies the regulated ±15 VDC rails that the TC amplifier circuit depends on. A marginal power supply can cause intermittent overtemperature trips that are misdiagnosed as sensor or wiring faults. Similarly, the thermocouple extension cables and cold-junction compensation assemblies routed from the susceptor heater to the card cage should be verified for continuity and shielding integrity — degraded cables are a common root cause of noisy TC signals that overwhelm the amplifier’s input range.

For facilities migrating chamber control from the legacy GIGA-F VME-based architecture toward a more modern PLC or PC-based supervisory system, the 0090-36221 interlock module can be retained in its original slot while a new communication gateway module bridges the interlock status signals to a Modbus RTU or Profibus DP network. This hybrid approach preserves the proven hardware safety layer while enabling integration with contemporary SCADA or MES platforms. The chamber’s existing RS-232 diagnostic port, typically accessed via a front-panel DB-9 connector on the GIGA-F controller chassis, can also be used during commissioning to verify interlock setpoints and TC calibration offsets without disturbing the process recipe.

When the scope of work extends to the RF match network or the gas delivery control board — both of which reside in the same equipment bay and share interlock signal routing with the TC Amp module — it is advisable to perform a full interlock chain verification after any board swap. The endpoint detection module, the chamber pressure interlock relay, and the coolant flow switch all feed into the same interlock matrix that the 0090-36221 monitors. Confirming that each node in the chain responds correctly to a simulated fault condition before returning the chamber to production is standard practice and significantly reduces the risk of a missed interlock event during the next process run.

Retrofit Guidance FAQ

Q: Will this replacement module work without any wiring changes?
A: Yes. The replacement 0090-36221 module uses the same board-edge connector and pin assignment as the original. No rewiring of the thermocouple inputs, interlock output lines, or backplane power connections is required. Simply power down the chassis, remove the failed board, seat the replacement, and restore power.

Q: Do I need to update the process recipe or controller software after swapping the module?
A: No software or recipe changes are required. The module presents the same electrical interface and interlock logic to the GIGA-F system controller. Overtemperature setpoints stored in the controller’s non-volatile memory remain valid and do not need to be re-entered.

Q: Is the module compatible with both Type K and Type J thermocouples?
A: The GIGA-F platform supports multiple thermocouple types depending on the specific chamber configuration. This replacement module is compatible with the thermocouple type specified in your chamber’s original bill of materials. If your system uses Type K (the most common configuration for CVD and etch chambers), the module is fully compatible. Please confirm your TC type when placing your order if you require Type J compatibility verification.

Q: What is the physical installation space requirement?
A: The module occupies a single slot in the GIGA-F card cage. Its form factor is identical to the original, so no bracket modification, slot relocation, or chassis alteration is needed. The module can be installed in under 15 minutes by a qualified field service engineer.

Q: How do I verify correct operation after installation?
A: After seating the module and restoring power, use the GIGA-F diagnostic interface (accessible via the front-panel RS-232 port or the system controller’s diagnostic menu) to read live TC temperature values and confirm that the overtemperature interlock setpoint is active. Simulate a fault condition by temporarily disconnecting a TC input and verify that the interlock output de-energizes as expected before returning the chamber to production.

Q: Can this module be used in a system that has been partially upgraded to a PLC-based controller?
A: Yes. The module’s discrete relay interlock output is compatible with both the original GIGA-F VME controller and third-party PLC digital input cards. The relay contact ratings are within the input specifications of common Siemens S7, Allen-Bradley ControlLogix, and Mitsubishi Q-series digital input modules, making it suitable for hybrid retrofit architectures.

Warranty Assurance

Every 0090-36221 replacement module shipped from TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on self-test, TC input signal conditioning check, and interlock output relay actuation test. Units that do not meet specification are quarantined and not offered for sale.

If a warranty claim arises, our after-sales team responds within one business day. Defective units are replaced or refunded at our discretion, with return shipping costs covered for confirmed warranty cases. We maintain a reserve stock of tested units to support rapid exchange programs for customers with critical uptime requirements.

All orders are shipped from Xiamen, China via DHL Express, FedEx International Priority, or equivalent tracked courier services. Typical transit time to North America and Europe is 3–5 business days. Export documentation, commercial invoice, and packing list are provided with every shipment to facilitate smooth customs clearance.

For volume procurement, spare parts program inquiries, or consignment stock arrangements, please contact our sales team directly. We support net-30 payment terms for qualified accounts and can provide a certificate of conformance upon request.
